Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the assist handle to the instrument panel.
  2. Install the assist handle nuts. Tighten:  Tighten the assist handle nuts to 8 N.m (71 lb ft).
  3. Install the inflatable restraint IP module.

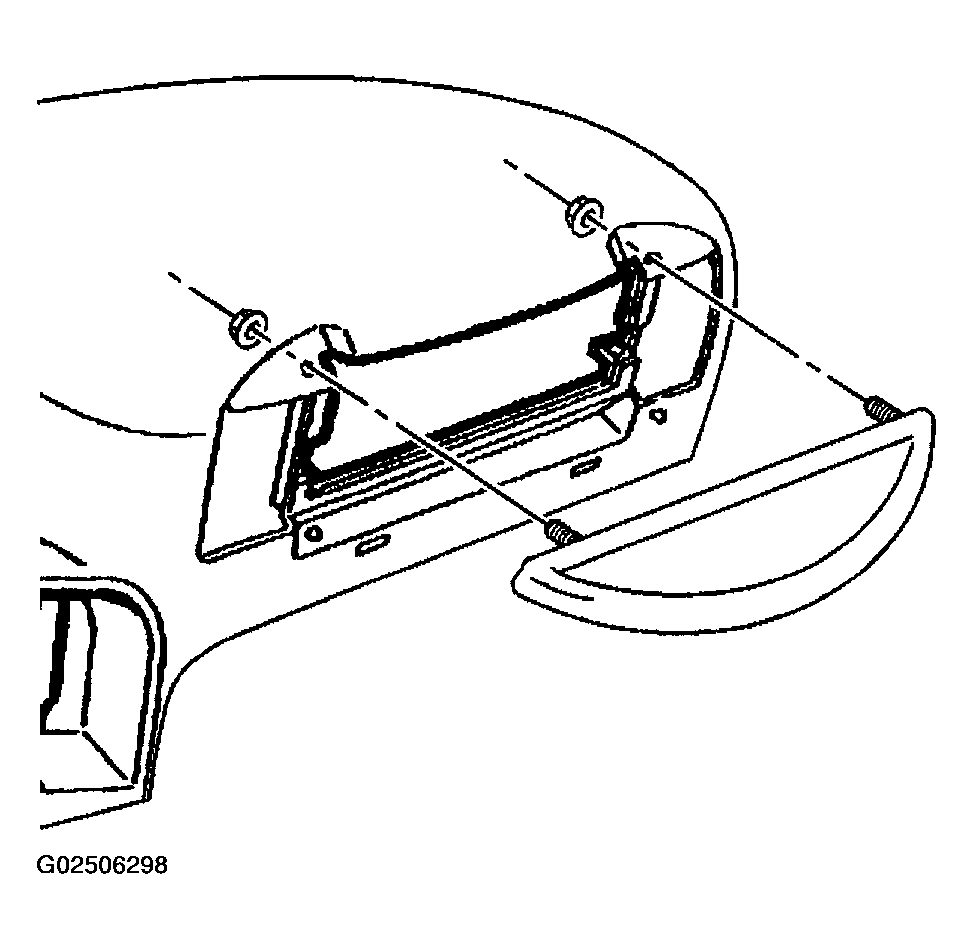

    4. Fig 1: Removing & Installing Instrument Panel Assist Handle
    G02506298Courtesy of GENERAL MOTORS CORP.
