Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT  .
  2. Remove the screw that retains the air outlet vent to the instrument panel.

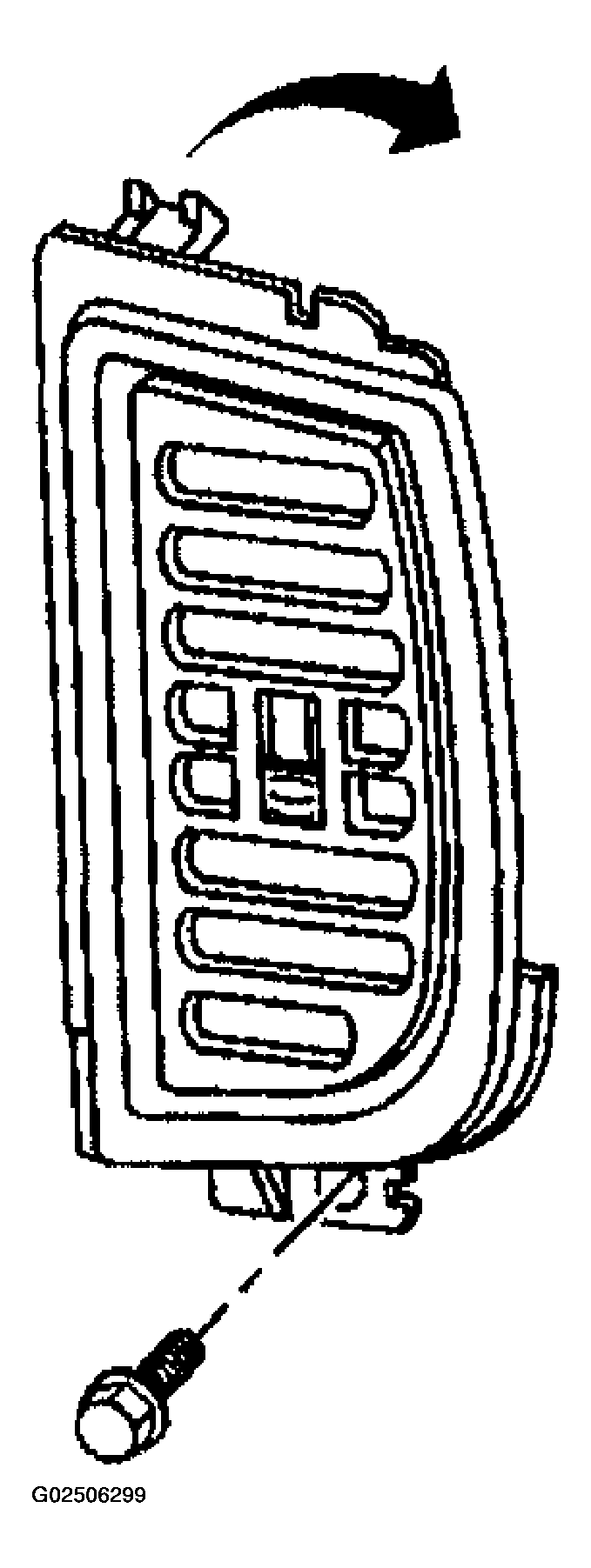

    3. Fig 1: Removing & Installing Instrument Panel Air Outlet Vent
    G02506299Courtesy of GENERAL MOTORS CORP.
  3. Lift upward on the instrument panel assist handle.
  4. Remove the air outlet vent from the instrument panel.

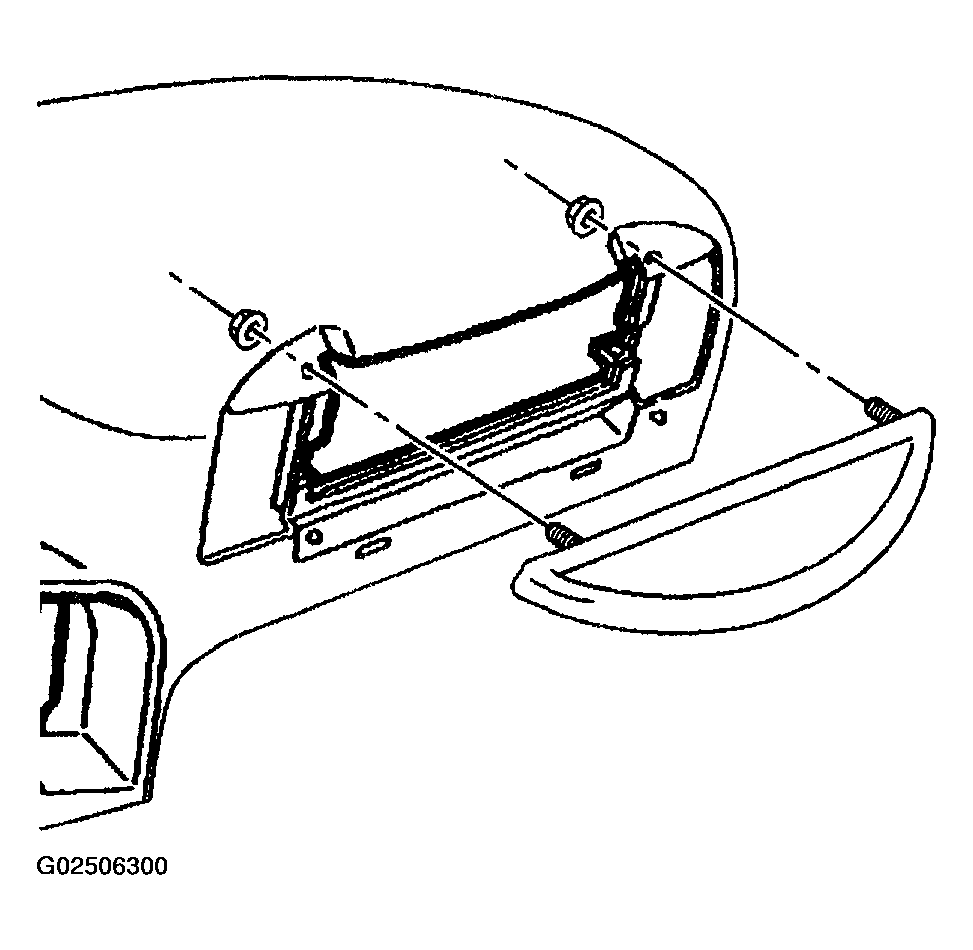

    5. Fig 2: Removing & Installing Instrument Panel Assist Handle
    G02506300Courtesy of GENERAL MOTORS CORP.
