Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift upward on the instrument panel assist handle.

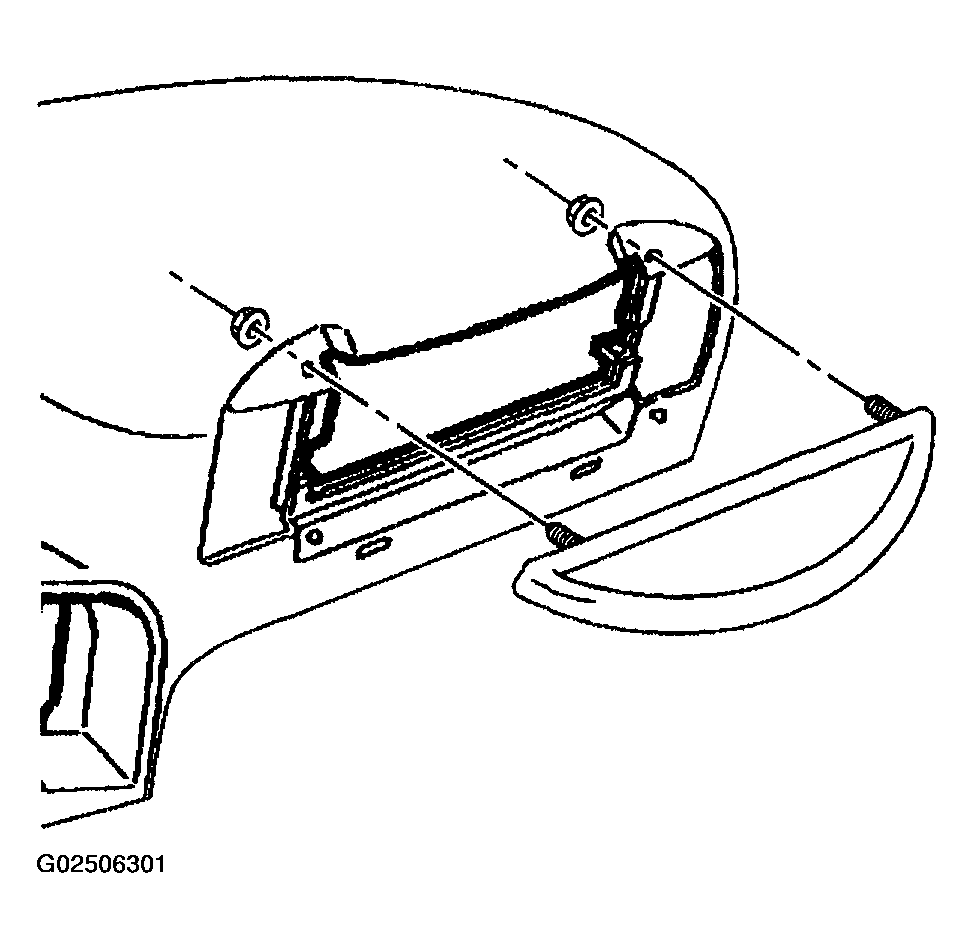

    2. Fig 1: Removing & Installing Instrument Panel Assist Handle
    G02506301Courtesy of GENERAL MOTORS CORP.
  2. Install the air outlet vent to the instrument panel.
    3. NOTE: Refer to FASTENER NOTICE .
  3. Install the screw that retains the air outlet vent to the instrument panel. Tighten:  Tighten the screw that retains the air outlet vent to the instrument pane to 2 N.m (18 lb in).
  4. Install the right side knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT  .

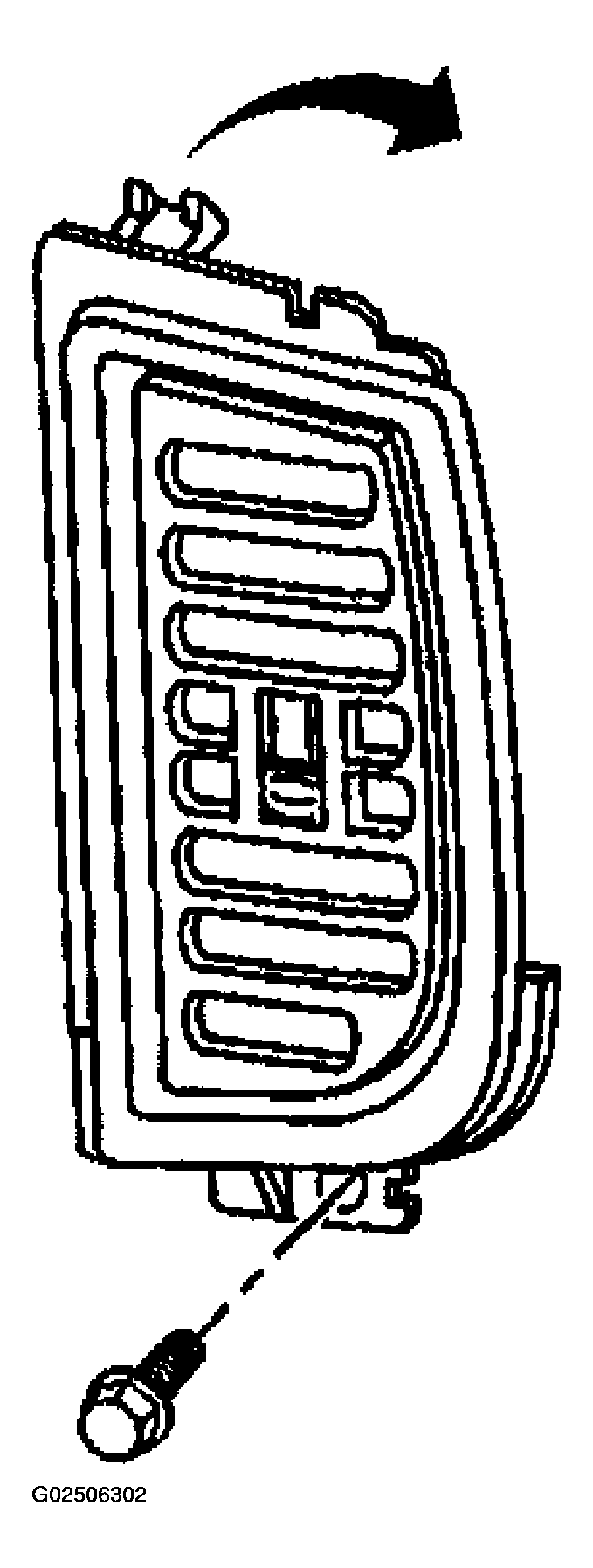

    5. Fig 2: Removing & Installing Instrument Panel Air Outlet Vent
    G02506302Courtesy of GENERAL MOTORS CORP.
