Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left cowl side trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE .
  2. Remove the screws that retain the hood release lever to the cowl side trim panel.
    3. Fig 1: Removing & Installing Hood Release Lever
    G02506277Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood release cable from the hood latch. Refer to HOOD LATCH RELEASE CABLE REPLACEMENT in Body Front End.

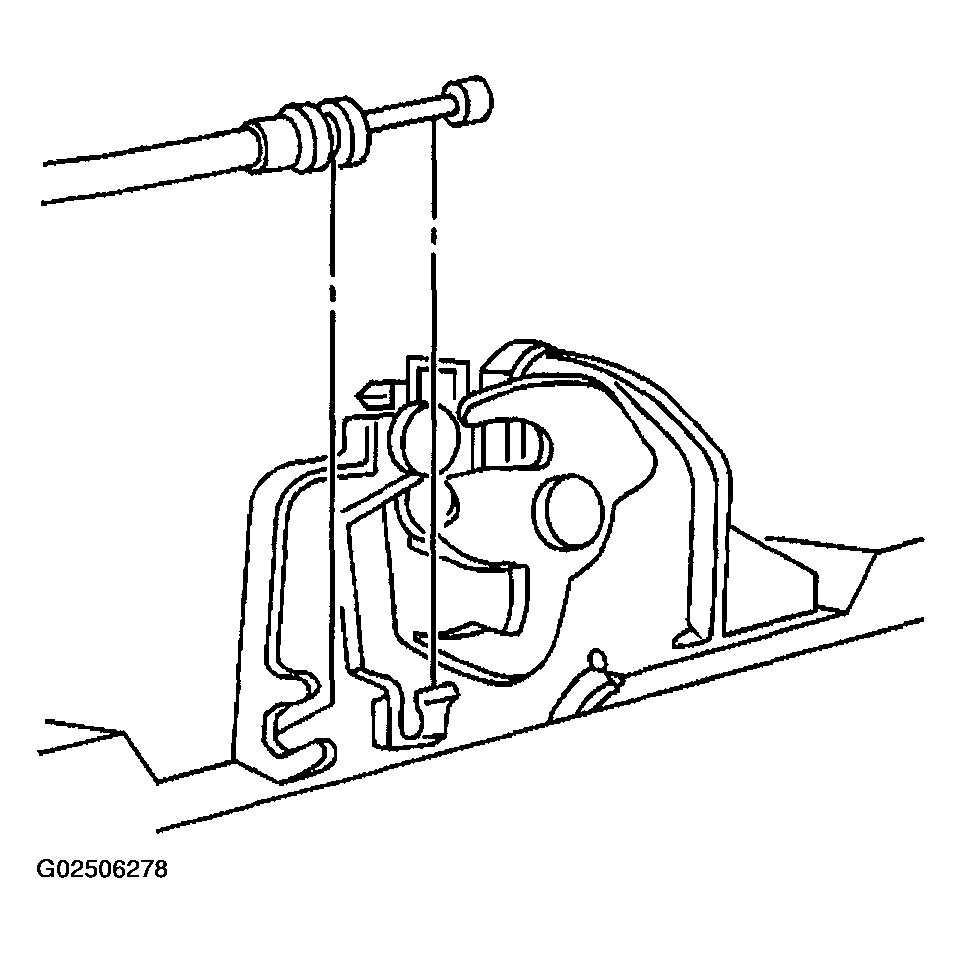

    4. Fig 2: Removing & Installing Hood Release Cable
    G02506278Courtesy of GENERAL MOTORS CORP.
