Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood release cable to the hood latch. Refer to HOOD LATCH RELEASE CABLE REPLACEMENT in Body Front End.

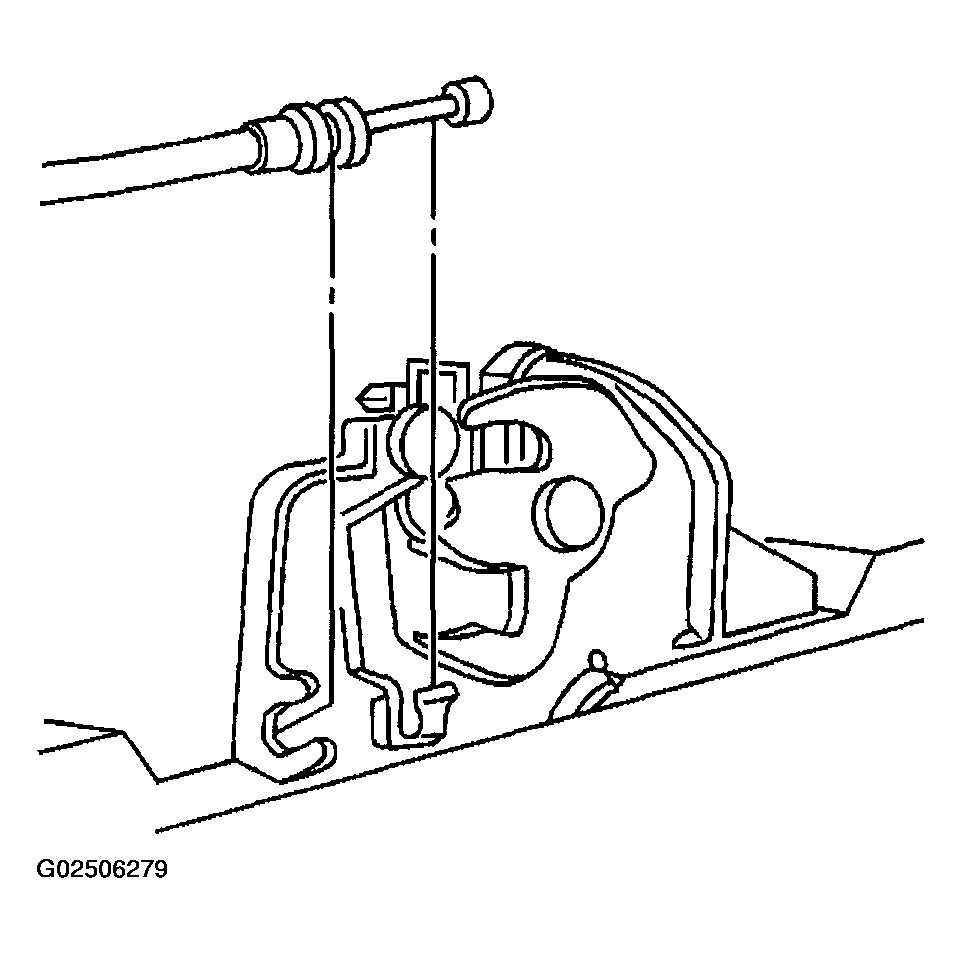

    2. Fig 1: Removing & Installing Hood Release Cable
    G02506279Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws that retain the hood release lever to the cowl side trim panel. Tighten:  Tighten the hood release lever screws to 8 N.m (71 lb in).
  3. Install the left cowl side trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE .
    4. Fig 2: Removing & Installing Hood Release Lever
    G02506280Courtesy of GENERAL MOTORS CORP.
