Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console (3). Refer to CONSOLE REPLACEMENT - OVERHEAD .
  2. Remove the display lens and the switch plate (1).
  3. Disconnect the electrical connectors.
  4. Remove the temperature/compass electronic display module (2).

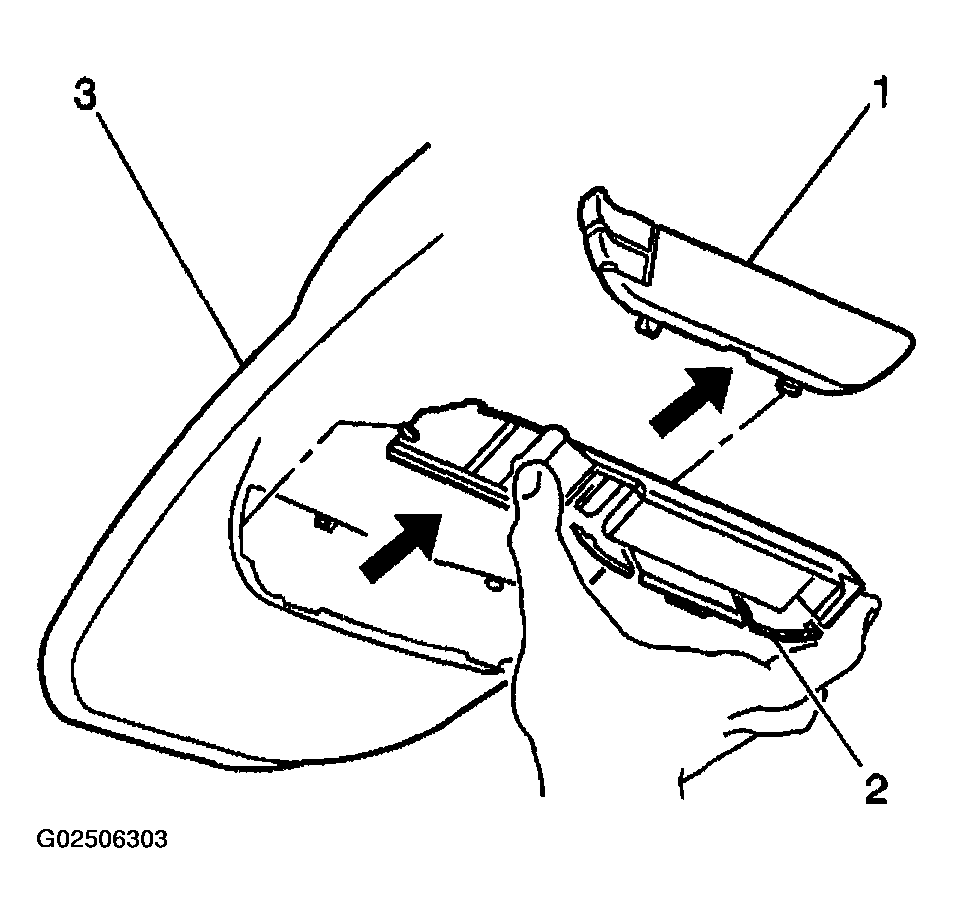

    5. Fig 1: Removing & Installing Display Lens & Switch Plate & Temperature/Compass Electronic Display Module
    G02506303Courtesy of GENERAL MOTORS CORP.
