Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel extension trim plate. Refer to IP Extension Trim Plate Replacement  .
  2. Squeeze the two retainers and pull out in order to remove the storage compartment.

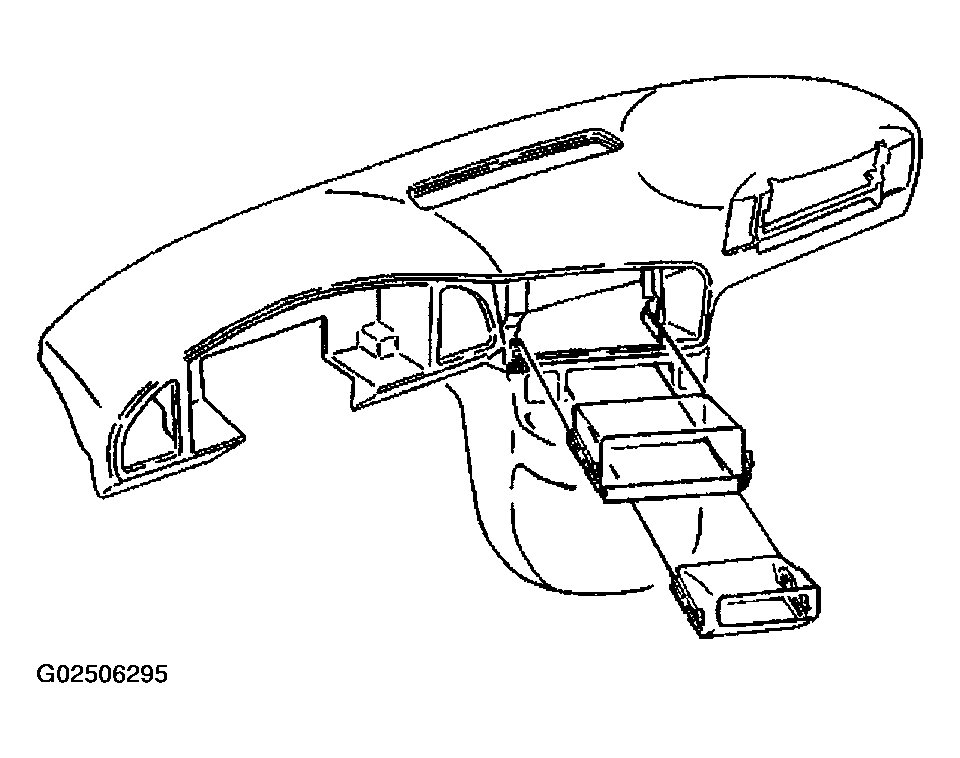

    3. Fig 1: Removing & Installing Instrument Panel Forward Extension Compartment
    G02506295Courtesy of GENERAL MOTORS CORP.
