Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the storage compartment into place.
  2. Install the instrument panel extension trim plate. Refer to IP Extension Trim Plate Replacement  .

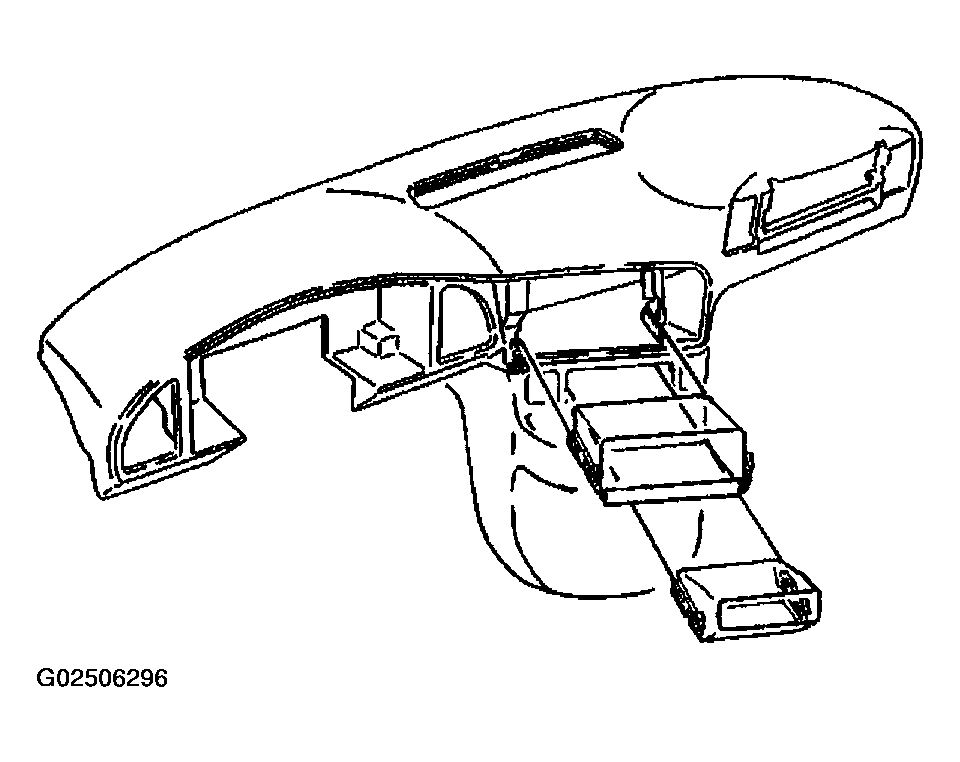

    3. Fig 1: Removing & Installing Instrument Panel Forward Extension Compartment
    G02506296Courtesy of GENERAL MOTORS CORP.
