Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator grille from the vehicle. Refer to GRILLE REPLACEMENT in Exterior Trim.
  2. Remove the outside air temperature sensor from the center support bracket by sliding the sensor upward.
  3. Disconnect the temperature sensor electrical connector.

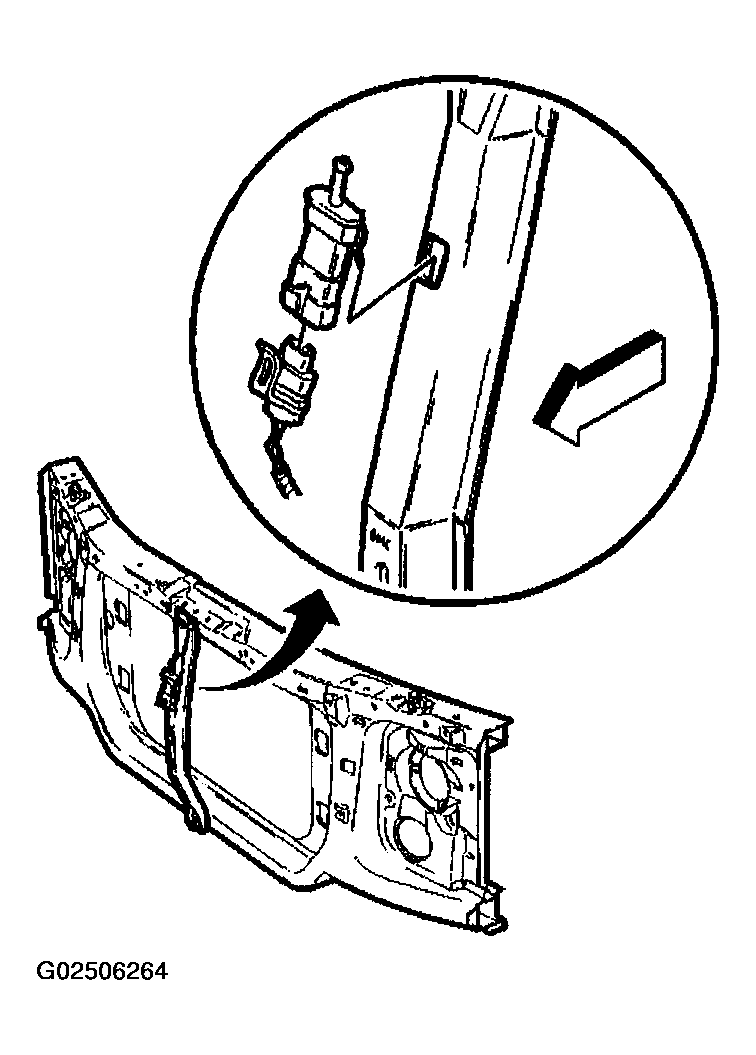

    4. Fig 1: Removing & Installing Ambient Air Temperature Sensor
    G02506264Courtesy of GENERAL MOTORS CORP.
