Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the temperature sensor electrical connector.
  2. Install the temperature sensor by sliding the sensor downward.
  3. Install the radiator grille to the vehicle. Refer to GRILLE REPLACEMENT in Exterior Trim.

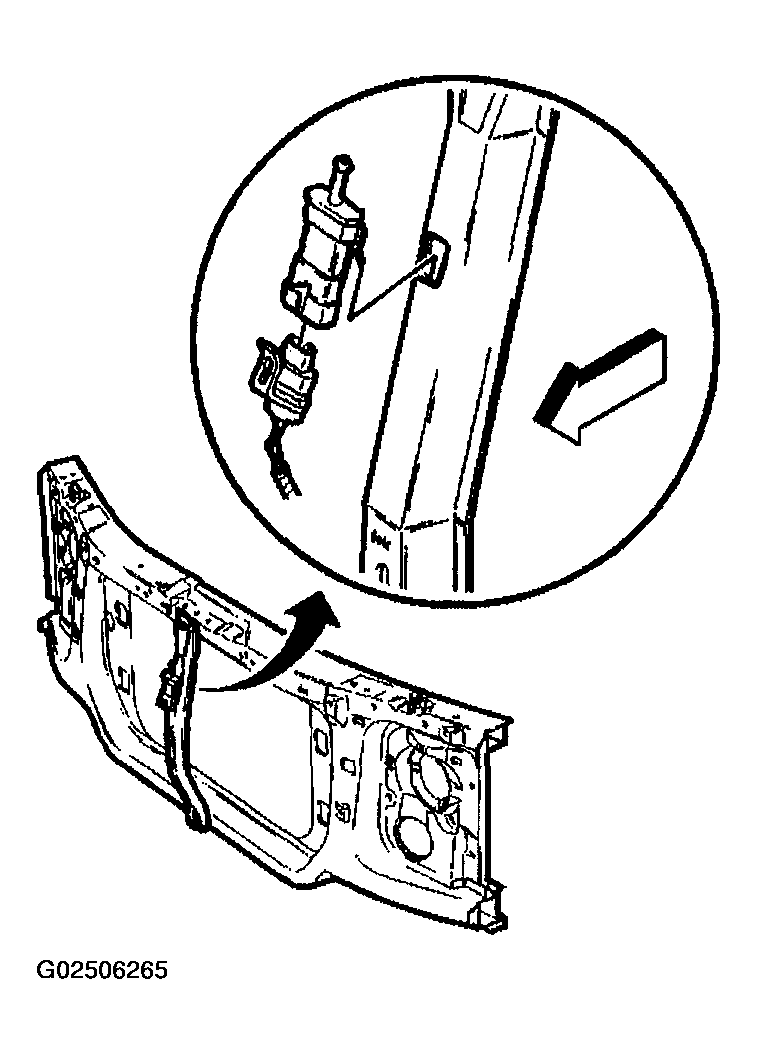

    4. Fig 1: Removing & Installing Ambient Air Temperature Sensor
    G02506265Courtesy of GENERAL MOTORS CORP.
