Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster trim plate. Refer to Trim Panel Replacement - IP Cluster  .
  2. Disconnect the electrical connectors.
  3. Squeeze the lock tabs in order to remove the switches.

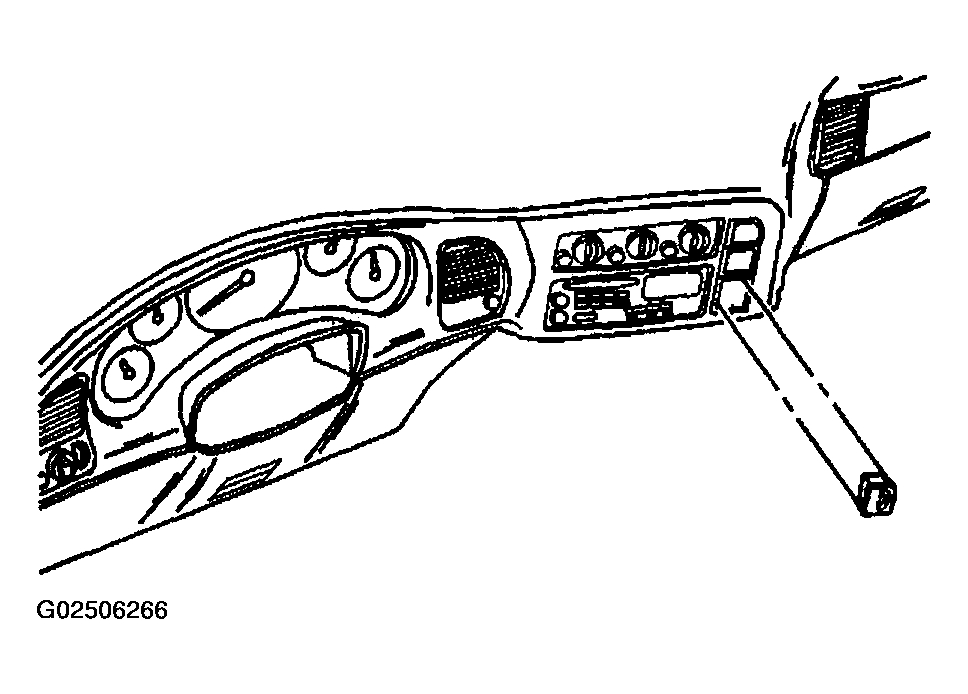

    4. Fig 1: Removing & Installing Accessory Switch
    G02506266Courtesy of GENERAL MOTORS CORP.
