Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push in on the switches in order to install the switches to the plate.
  2. Connect the electrical connector.
  3. Install the instrument panel cluster trim plate. Refer to Trim Panel Replacement - IP Cluster  .

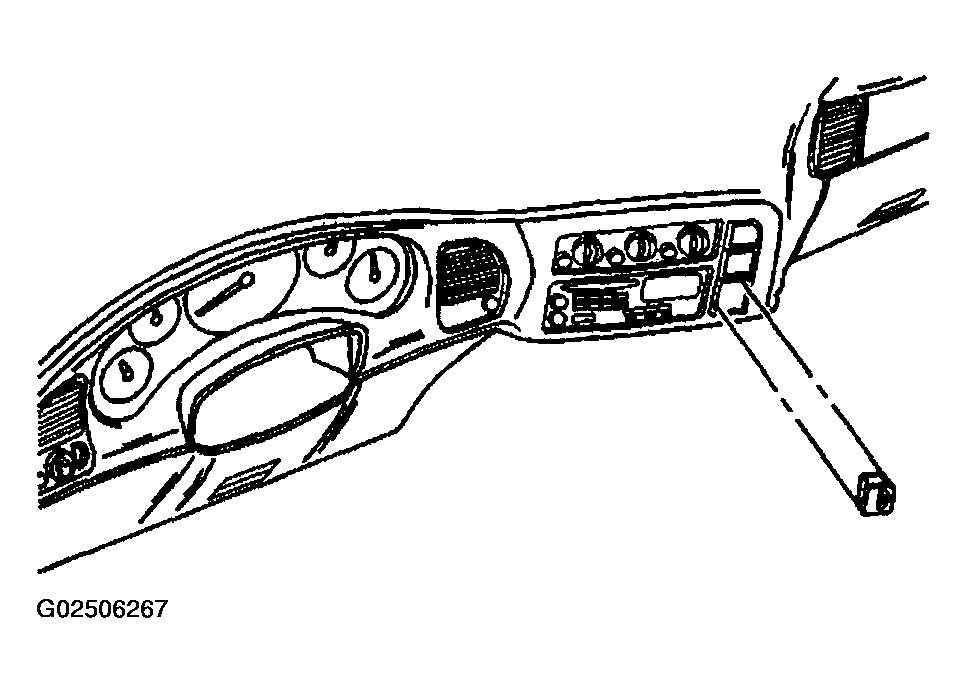

    4. Fig 1: Trim Panel Replacement - IP Cluster  .
    G02506267Courtesy of GENERAL MOTORS CORP.
