Instrument Panel, Gages & Console Connector End Views
WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

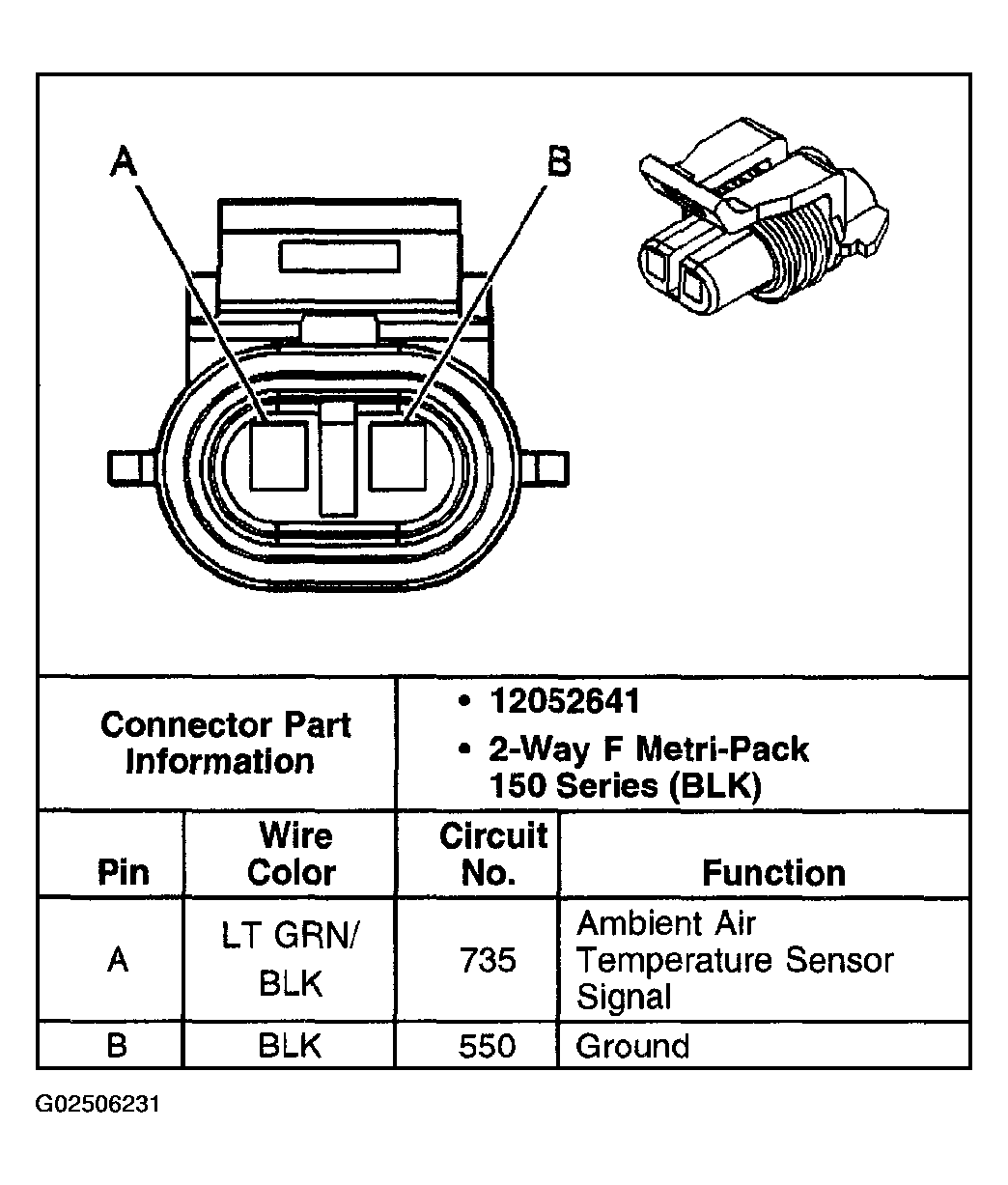

Fig 1: Ambient Air Temperature Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

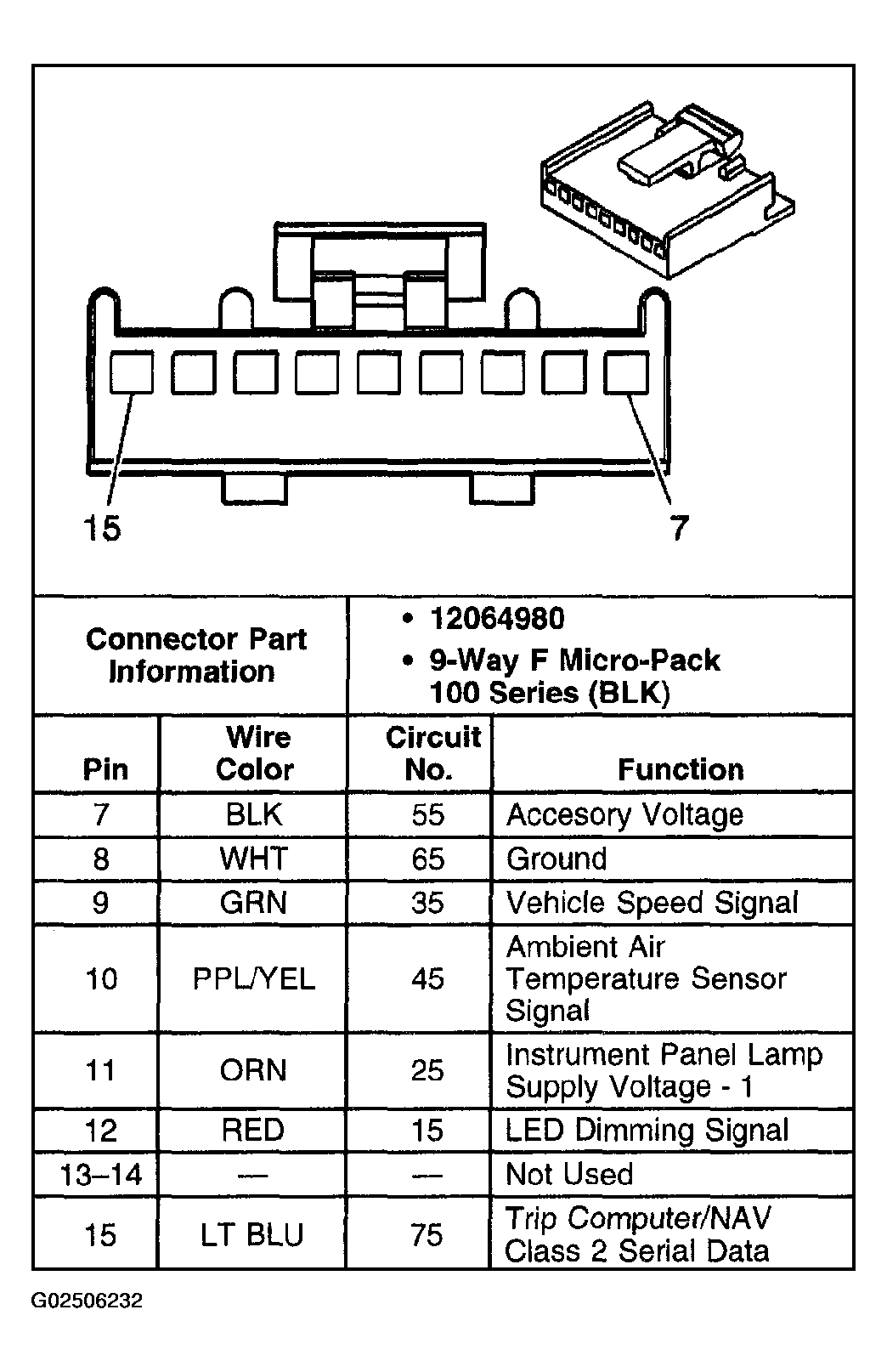

Fig 2: Driver Information Center Connector End View
Courtesy of GENERAL MOTORS CORP.

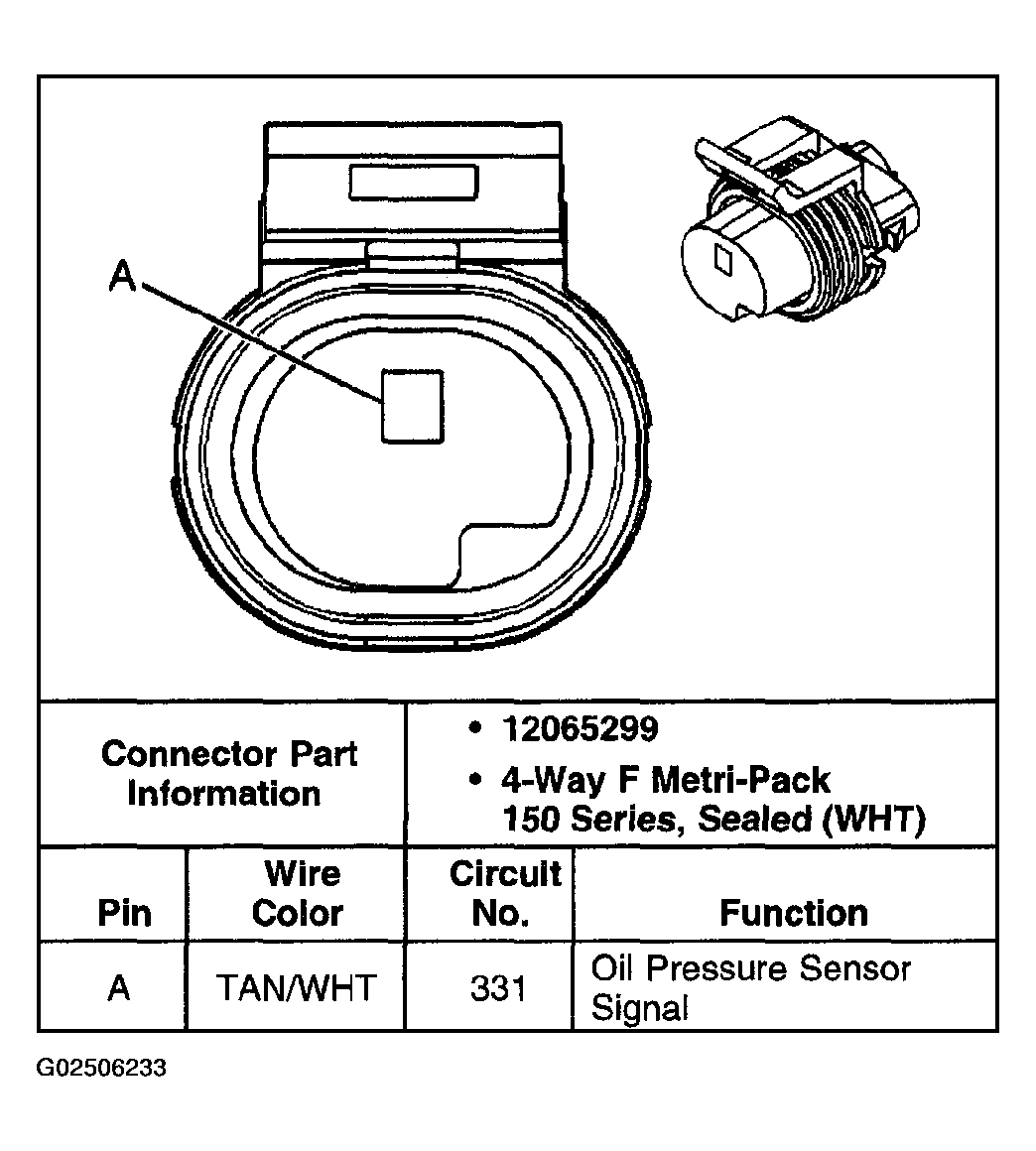

Fig 3: Engine Oil Pressure Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

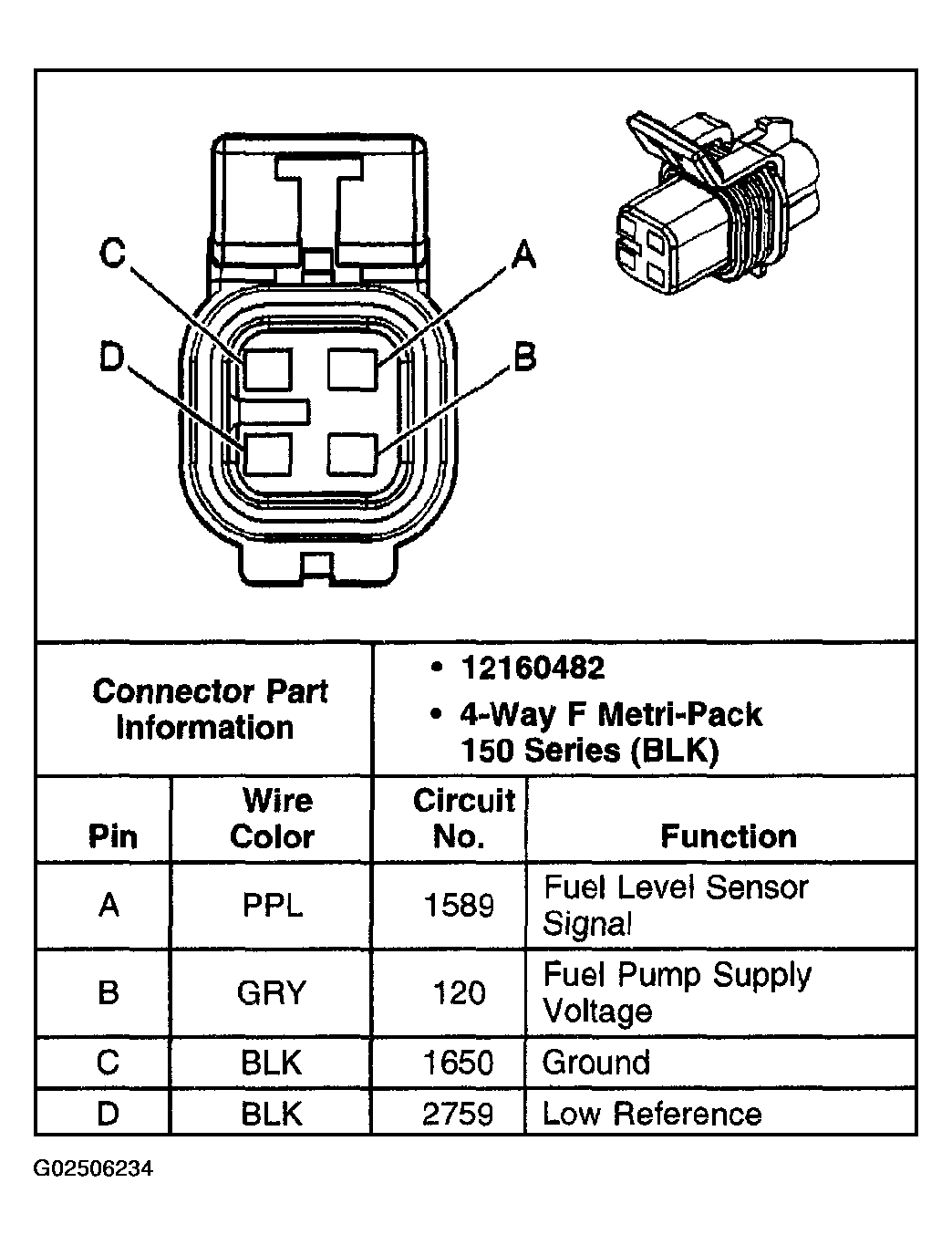

Fig 4: Fuel Pump & Sender Assembly Connector End View
Courtesy of GENERAL MOTORS CORP.

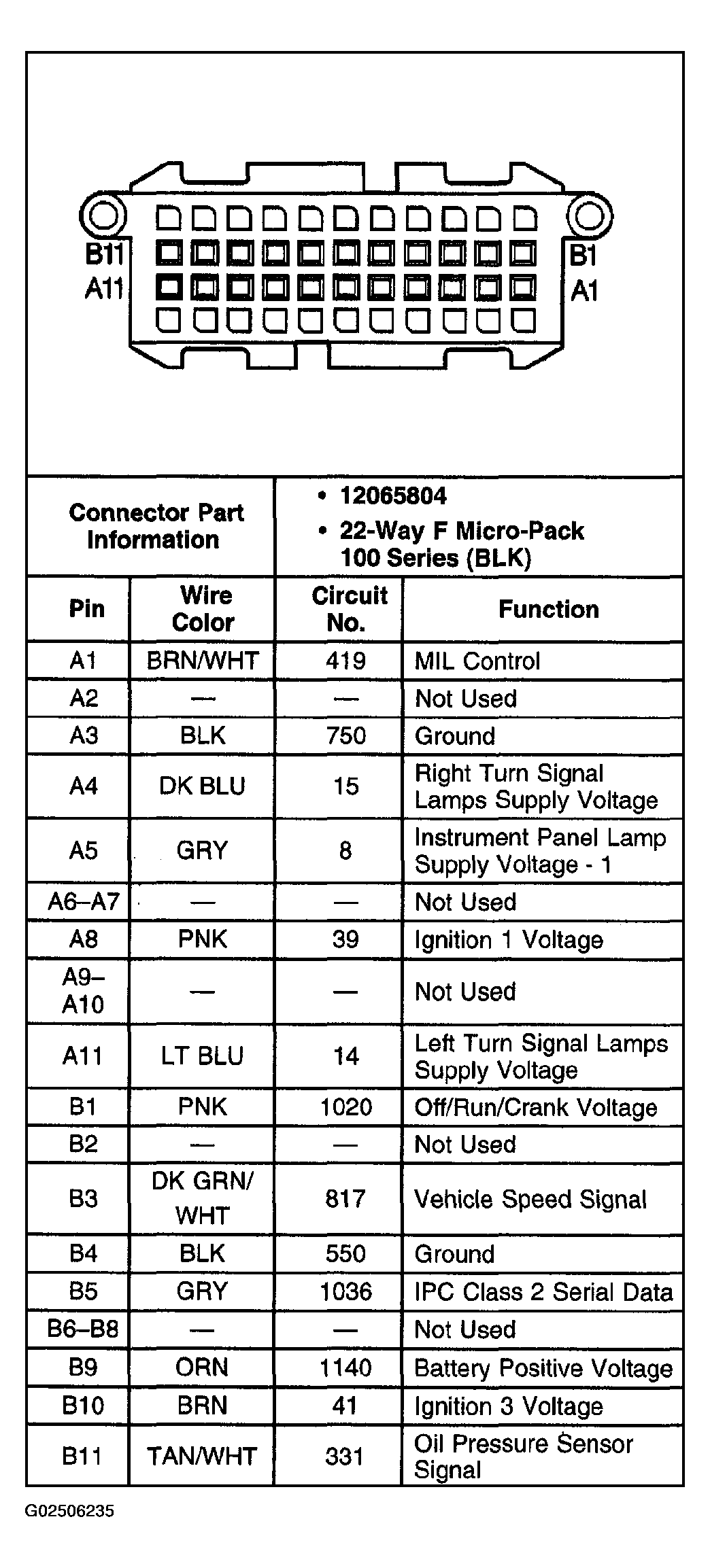

Fig 5: Instrument Panel Cluster Connector End View
