Instrument Panel, Gages & Console Component Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front End Center Wiring Harness Connectors

Courtesy of GENERAL MOTORS CORP.

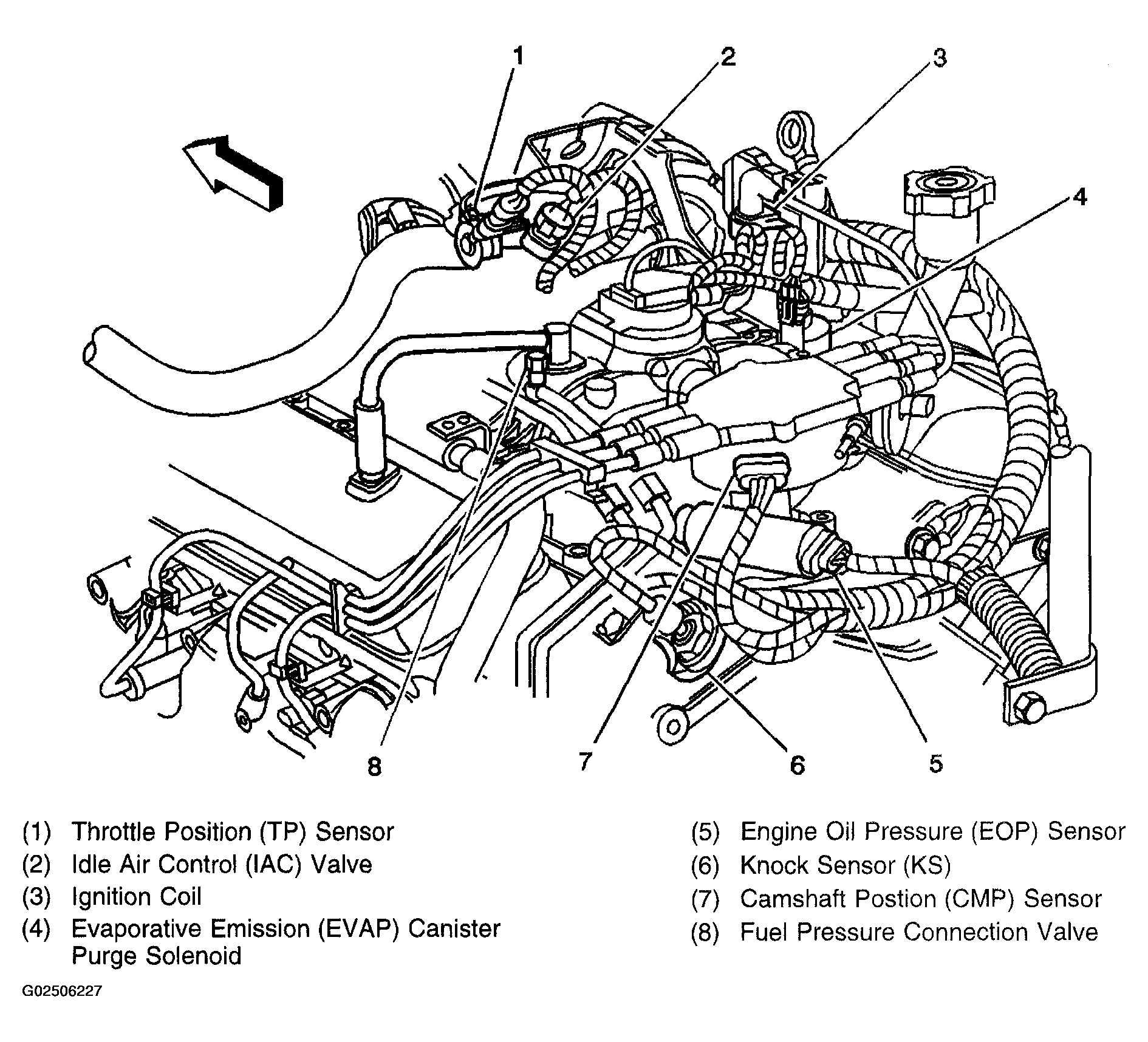

Fig 2: Identifying Throttle Position Sensor, Idle Air Control Valve & Camshaft Position Sensor Wiring Harness Connectors

Courtesy of GENERAL MOTORS CORP.

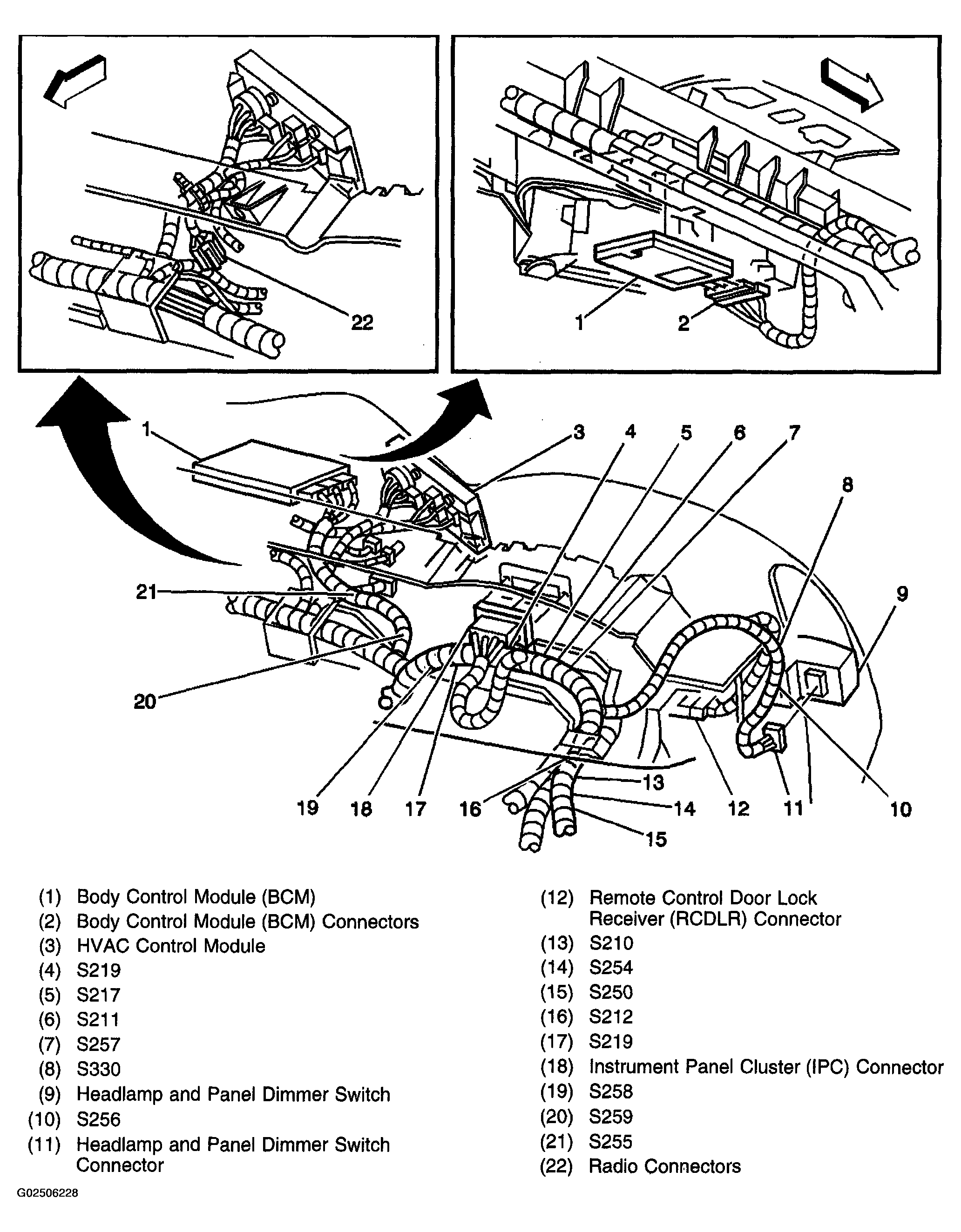

Fig 3: Identifying Instrument Cluster Wiring Harness Connectors

Courtesy of GENERAL MOTORS CORP.

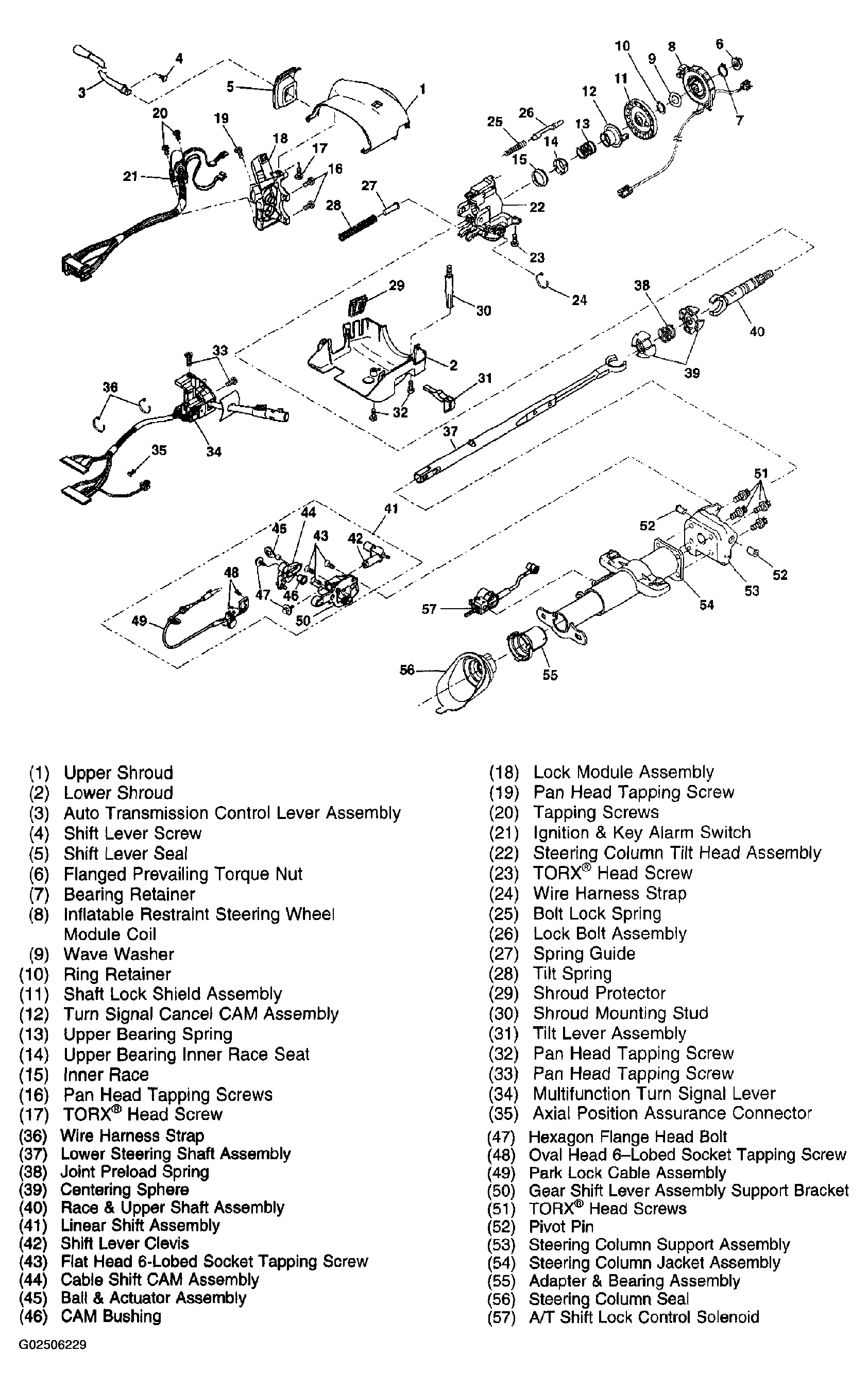

Fig 4: Identifying Tilt Column Shift Steering Column Wiring Harness Connectors & Components

Courtesy of GENERAL MOTORS CORP.

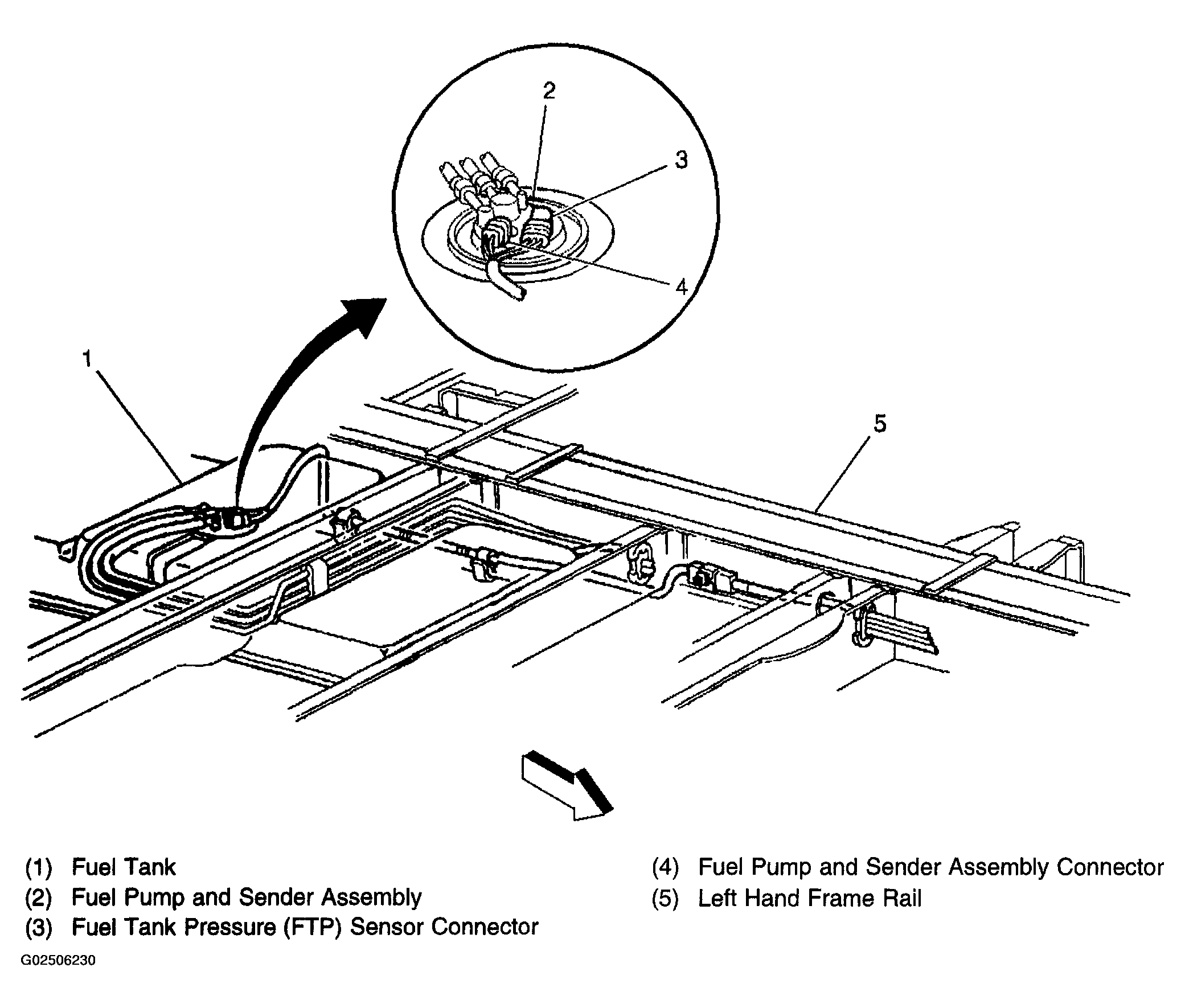

Fig 5: Identifying Fuel Tank, Fuel Tank Pressure Sensor & Fuel Sender Wiring Harness Connectors

Courtesy of GENERAL MOTORS CORP.
