Compressor Clutch Plate and Hub Assembly Removal (V5 - Direct Mount)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 33027-A Clutch Hub Holding Tool
J 33013-B Hub and Drive Plate Remover/Installer
J 41790 Compressor Holding Fixture

Clamp the J 41790 in a vise and attach the A/C compressor to the holding fixture.
Hold the clutch hub and drive plate assembly (2) in place using the J 33027-A .
Remove the A/C compressor shaft nut with a 13 mm socket (1).

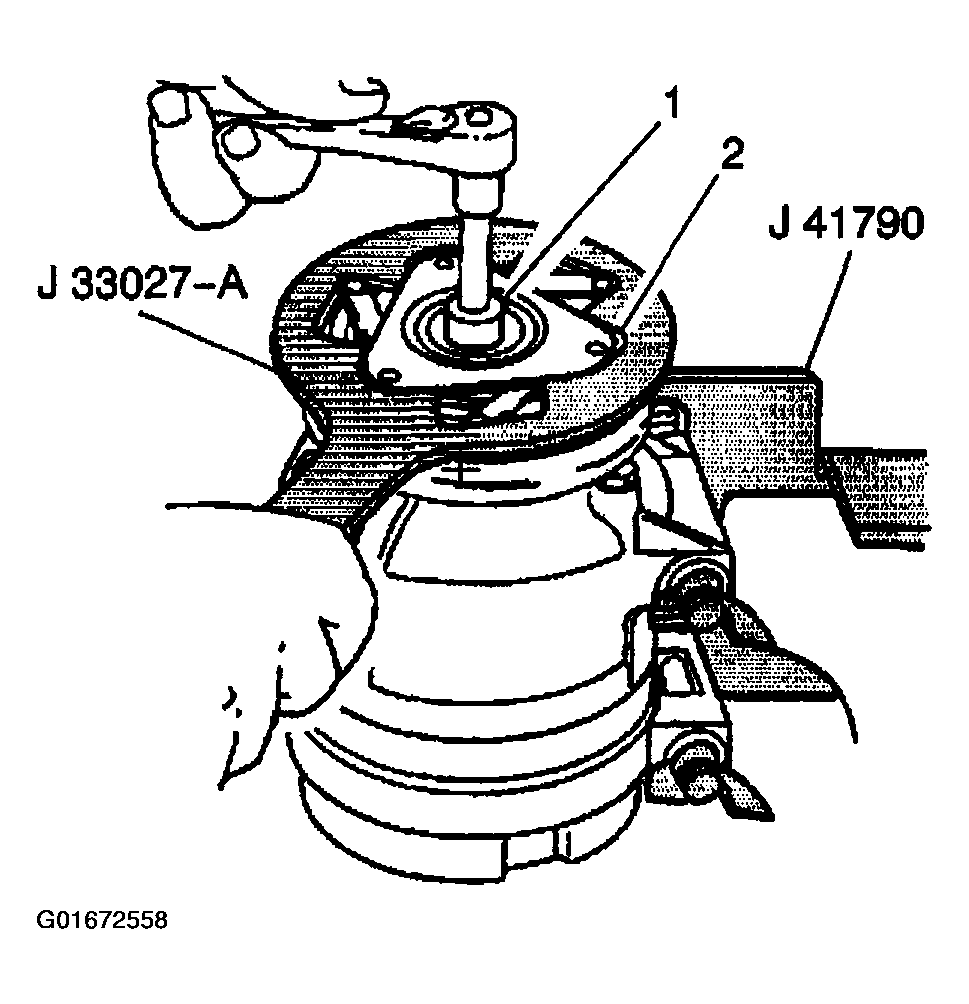

Fig 1: Clutch Hub, Drive Plate Assembly, A/C Compressor Shaft Nut, J 41790 & J 33027-A
Courtesy of GENERAL MOTORS CORP.
Thread the clutch plate and hub remover and installer tool hub and drive plate installer into the hub.
Remove the hub and drive plate assembly (1) by turning the center screw into the body of the hub and drive plate installer and against the A/C compressor shaft.
Remove the shaft key and retain for reassembly.

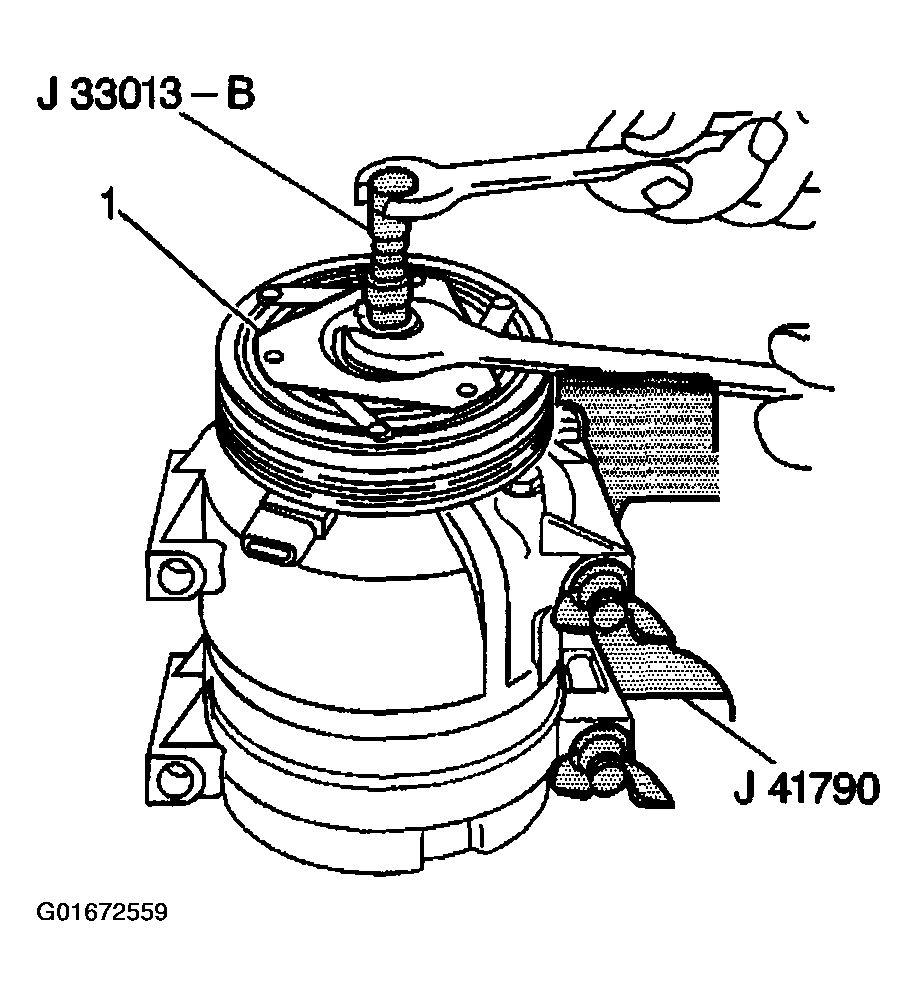

Fig 2: Remove Hub & Drive Plate Assembly Using J 33013-B & J 41790
Courtesy of GENERAL MOTORS CORP.
