Exhaust Manifold Removal - Right

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heated oxygen sensor.

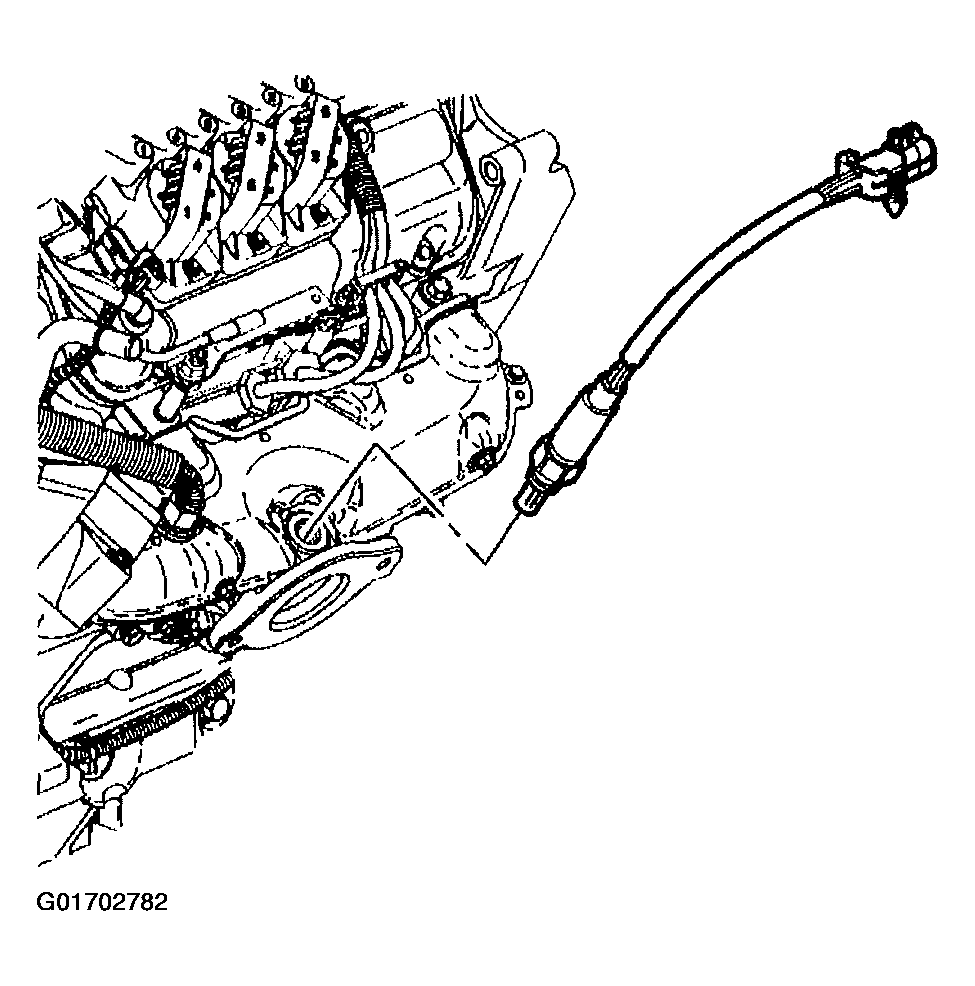

    Fig 1: Heated Oxygen Sensor
    G01702782Courtesy of GENERAL MOTORS CORP.
  2. Remove the exhaust manifold heat shield bolts.
  3. Remove the exhaust manifold heat shields.

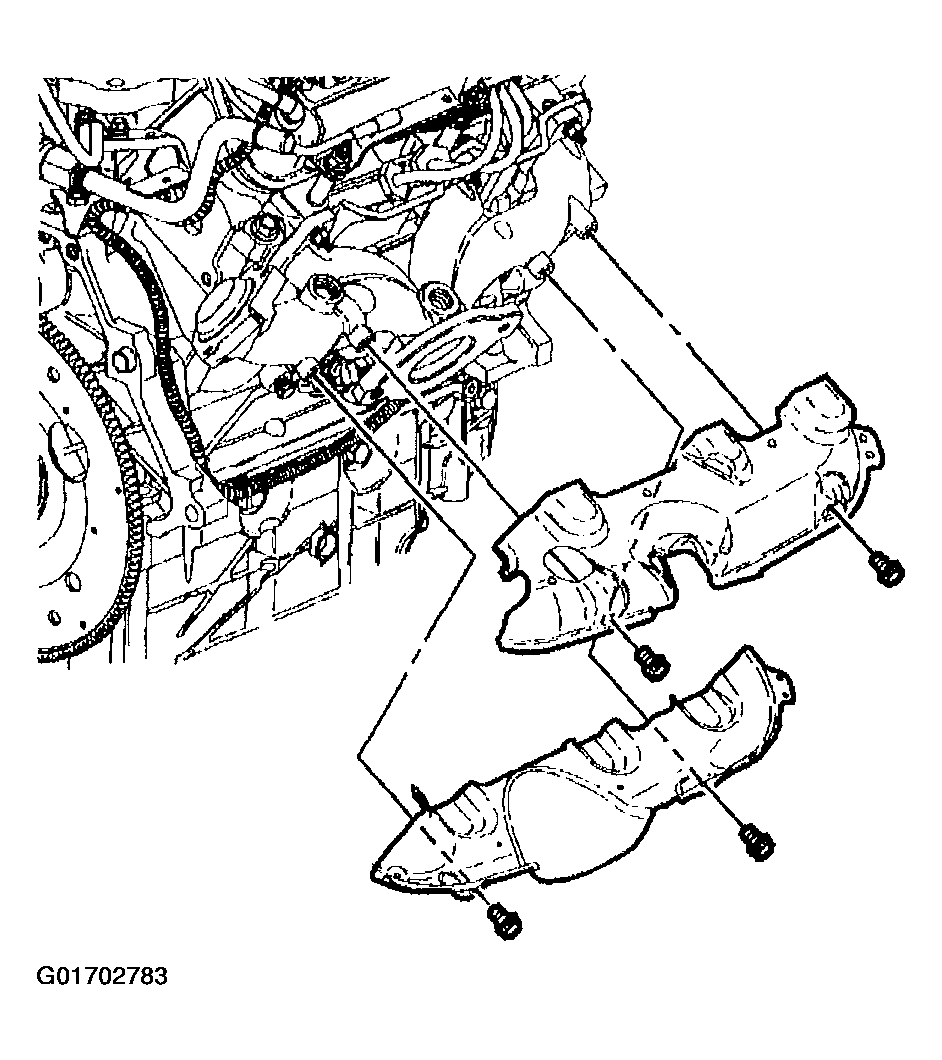

    Fig 2: Right Exhaust Manifold Heat Shields
    G01702783Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust manifold nuts.
  5. Remove the exhaust manifold.
  6. Remove the exhaust manifold gasket.
  7. Remove the exhaust studs, if required.

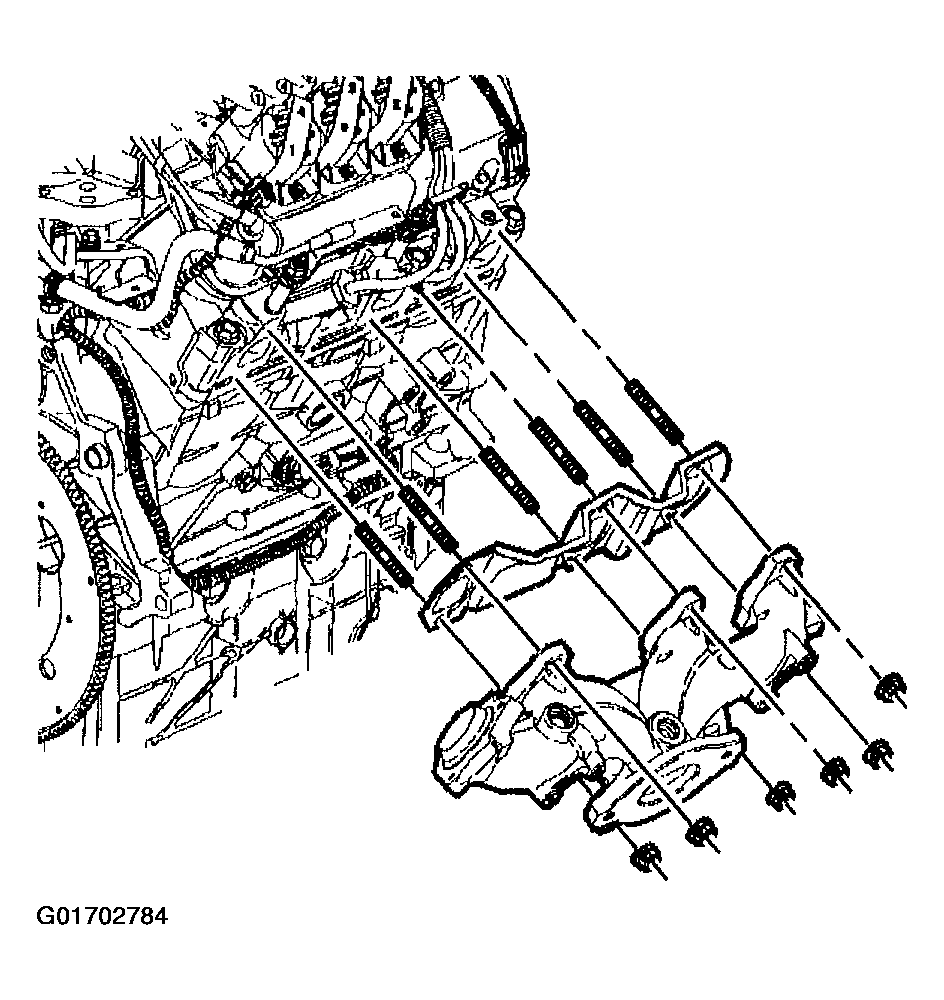

    Fig 3: Right Exhaust Manifold
    G01702784Courtesy of GENERAL MOTORS CORP.
