Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the park/turn signal lamp. .
  2. Remove the screws from the grille to radiator support.
  3. Remove the screw from the signal housing.
  4. Remove the grille from the vehicle.

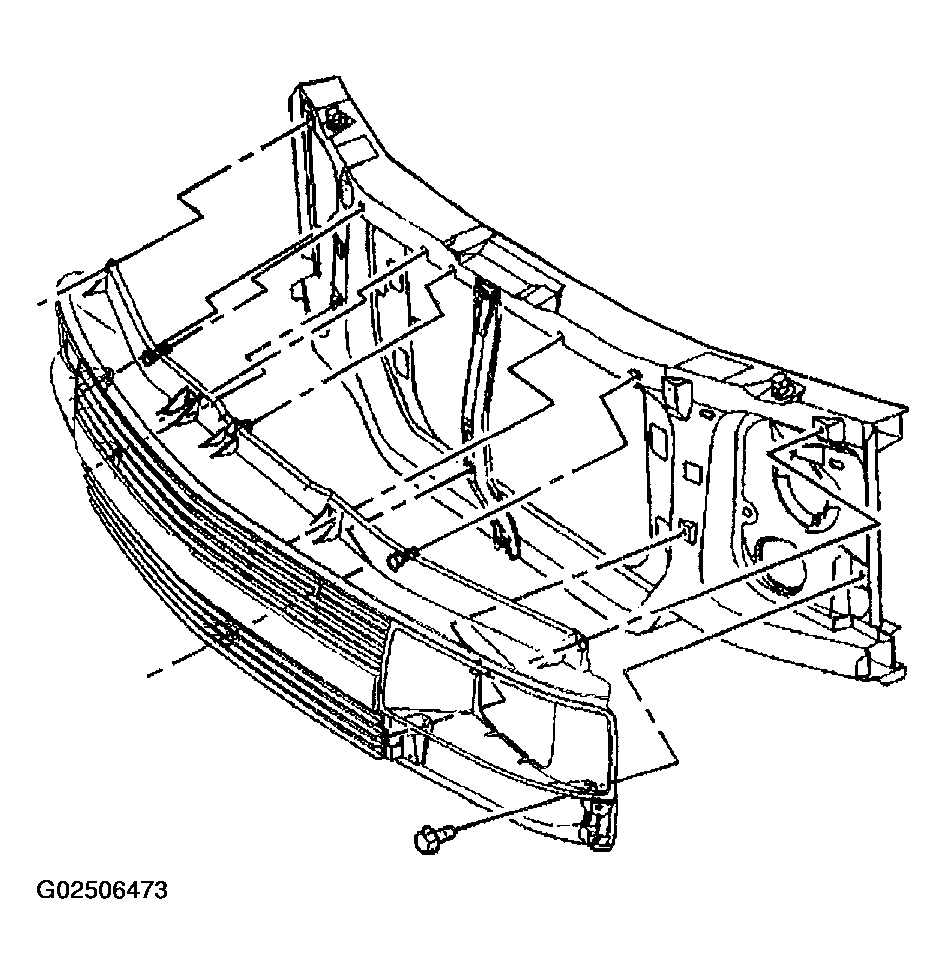

    Fig 1: Removing Grille
    G02506473Courtesy of GENERAL MOTORS CORP.
