Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the grille to the vehicle.
    NOTE: Refer to Fastener Notice in GM VEHICLES CAUTIONS & NOTICES .
  2. Install the screws to grille to radiator support.

    Tighten

    Tighten the screws to the grille to radiator support to 3 N.m (27 in. lb.).

  3. Install the park/turn signal lamp. Refer to

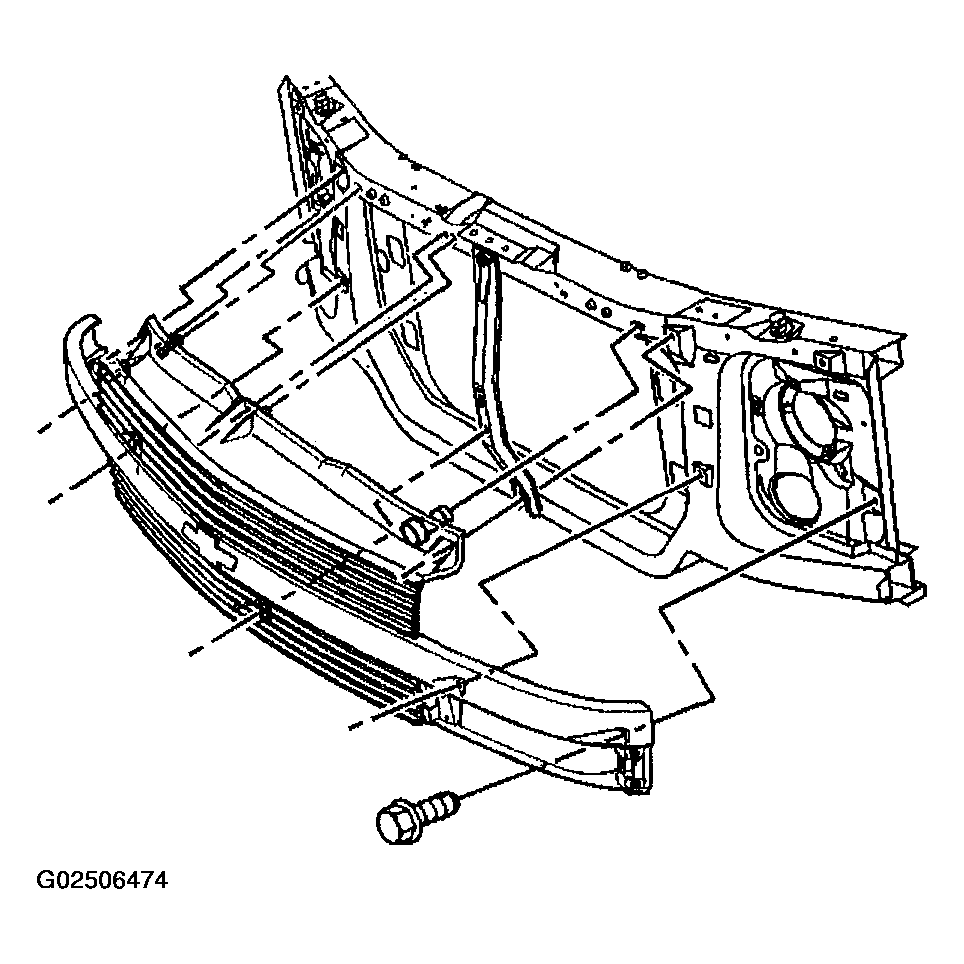

    Fig 1: Installing Grille
    G02506474Courtesy of GENERAL MOTORS CORP.
