Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille. Refer to Grille Replacement .
  2. Remove the push-in fasteners that retain the grille molding.
  3. Remove the grille molding from the vehicle.

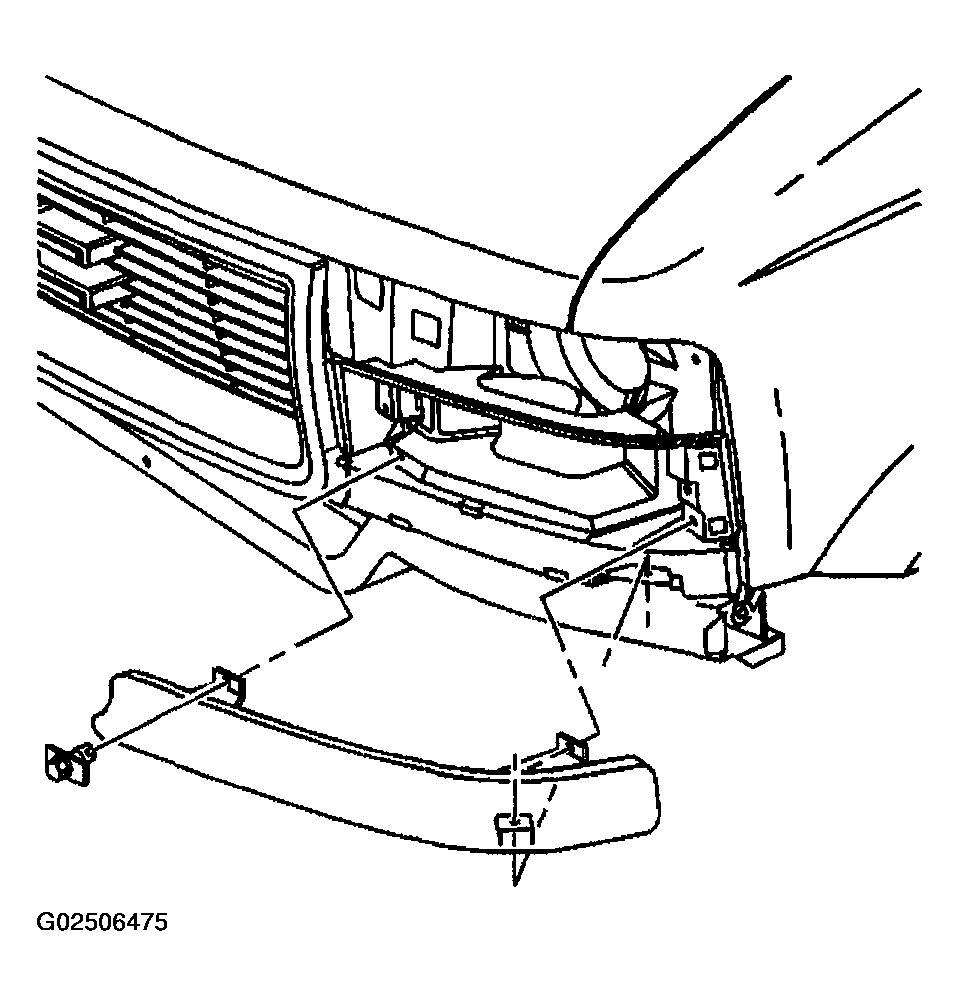

    Fig 1: Removing Lower Grille Molding
    G02506475Courtesy of GENERAL MOTORS CORP.
