Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the grille molding to the vehicle.
  2. Install the push-in fasteners that retain the grille molding.
  3. Install the grille. Refer to Grille Replacement .

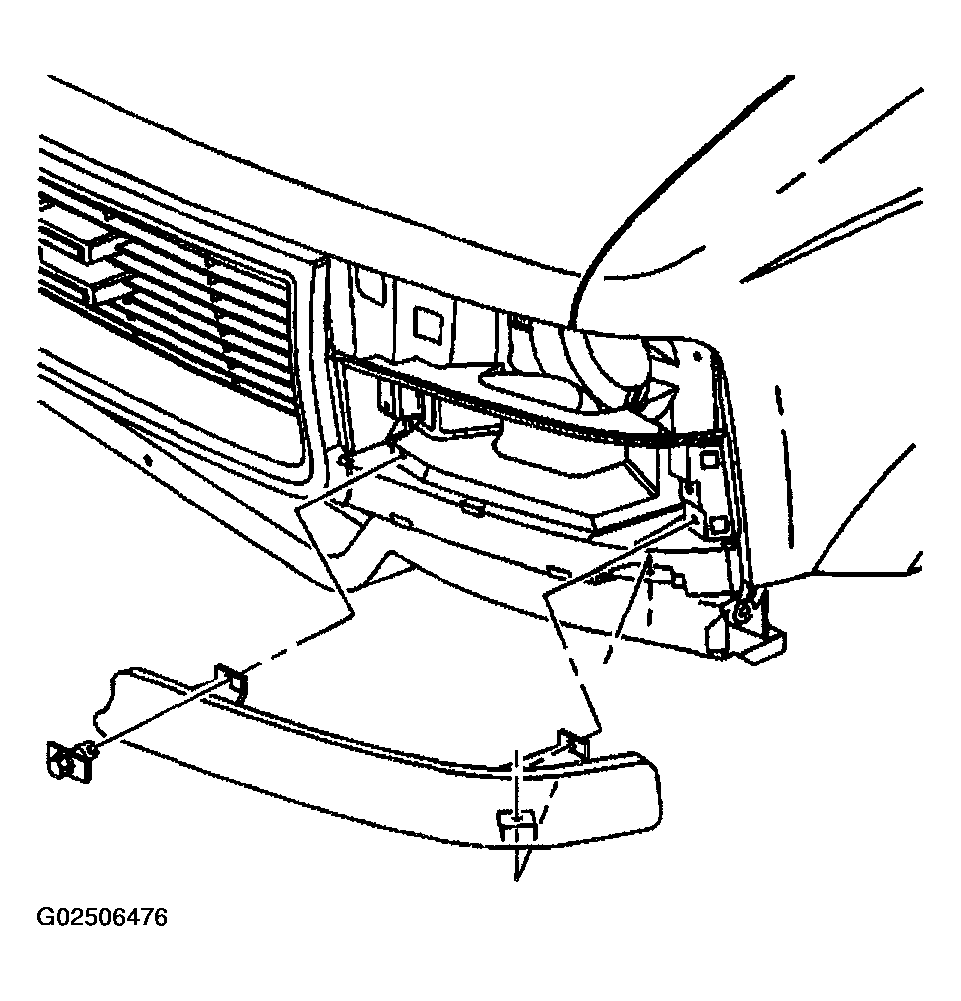

    Fig 1: Installing Lower Grille Molding
    G02506476Courtesy of GENERAL MOTORS CORP.
