Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille from the vehicle. Refer to Emblem Replacement - Grille .
  2. Protect the face of the grille while removing the grille emblem.
  3. Remove the nuts from the back side of the grille emblem.
  4. Remove the grille emblem from the grille.

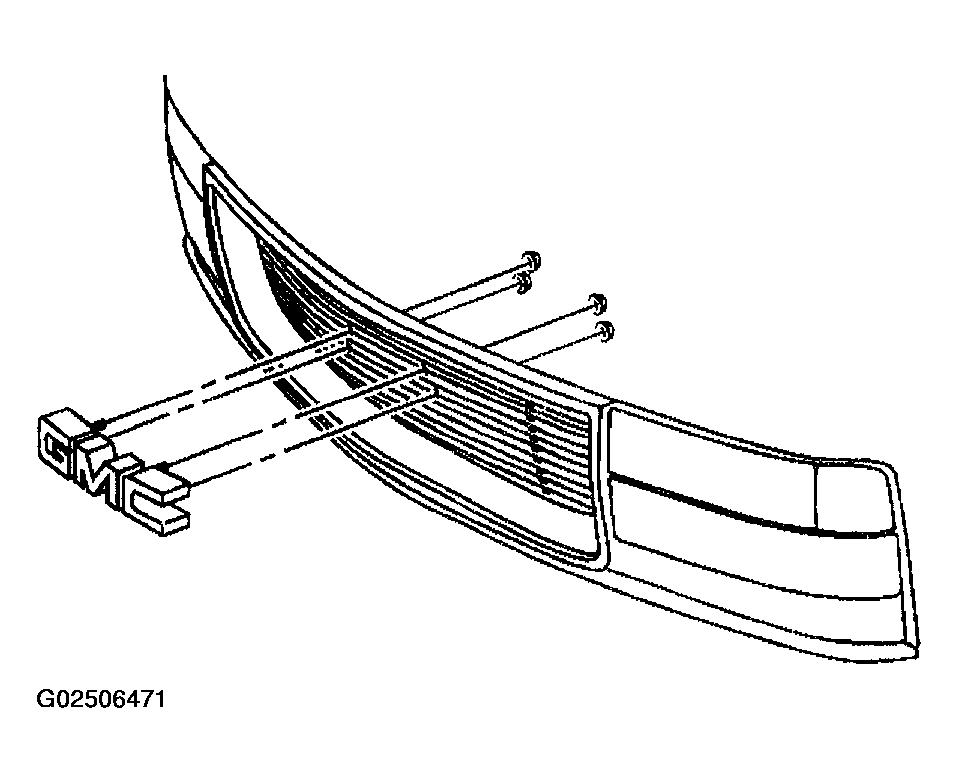

    Fig 1: Removing Grille Emblem
    G02506471Courtesy of GENERAL MOTORS CORP.
