Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retaining rail to the body.
    NOTE: Refer to Fastener Notice in GM VEHICLES CAUTIONS & NOTICES .
  2. Install the retaining rail screws.

    Tighten

    Tighten the retaining rail screws to 2 N.m (18 in. lb.).

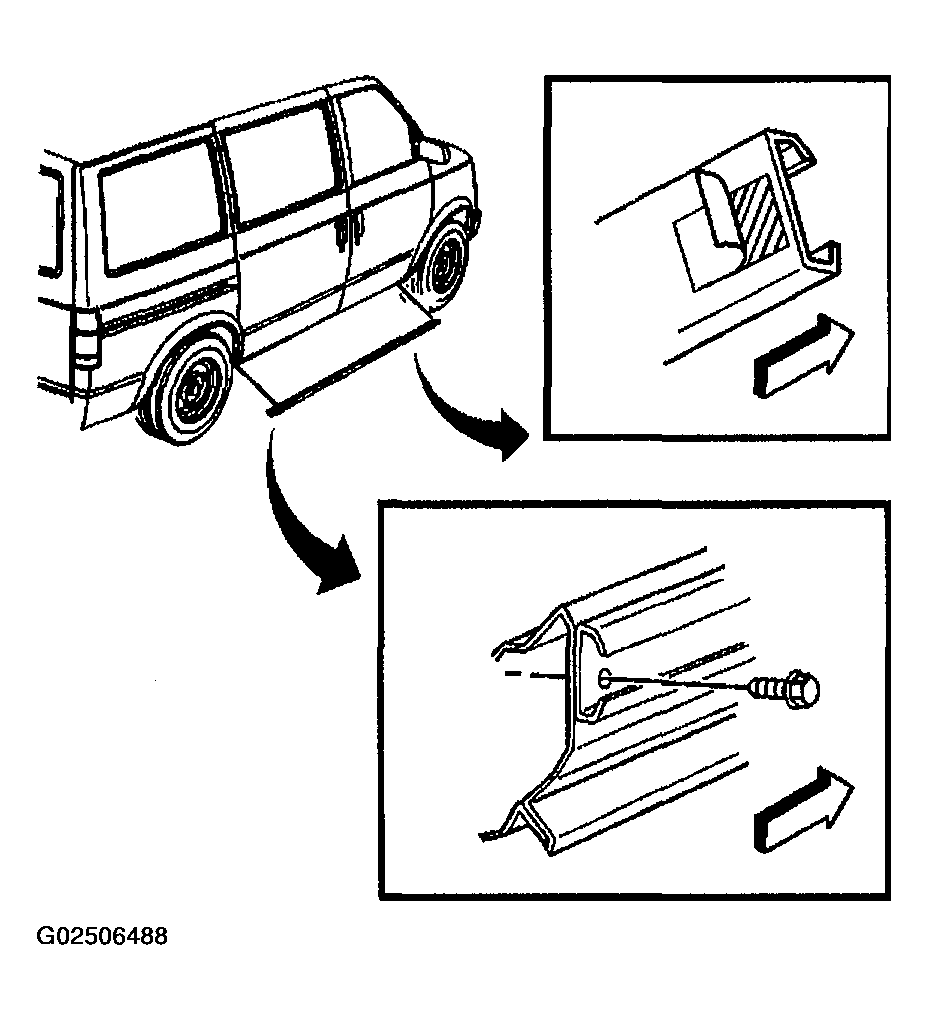

    Fig 1: Installing Retaining Rail
    G02506488Courtesy of GENERAL MOTORS CORP.
  3. Install the rear half of the cladding to the retaining rail.
  4. Install the push-in retainers that retain the cladding to the retaining rail.
  5. Install the screws that retain the cladding to the rear wheelhouse.

    Tighten

    Tighten the screws to 2 N.m (18 in. lb.).

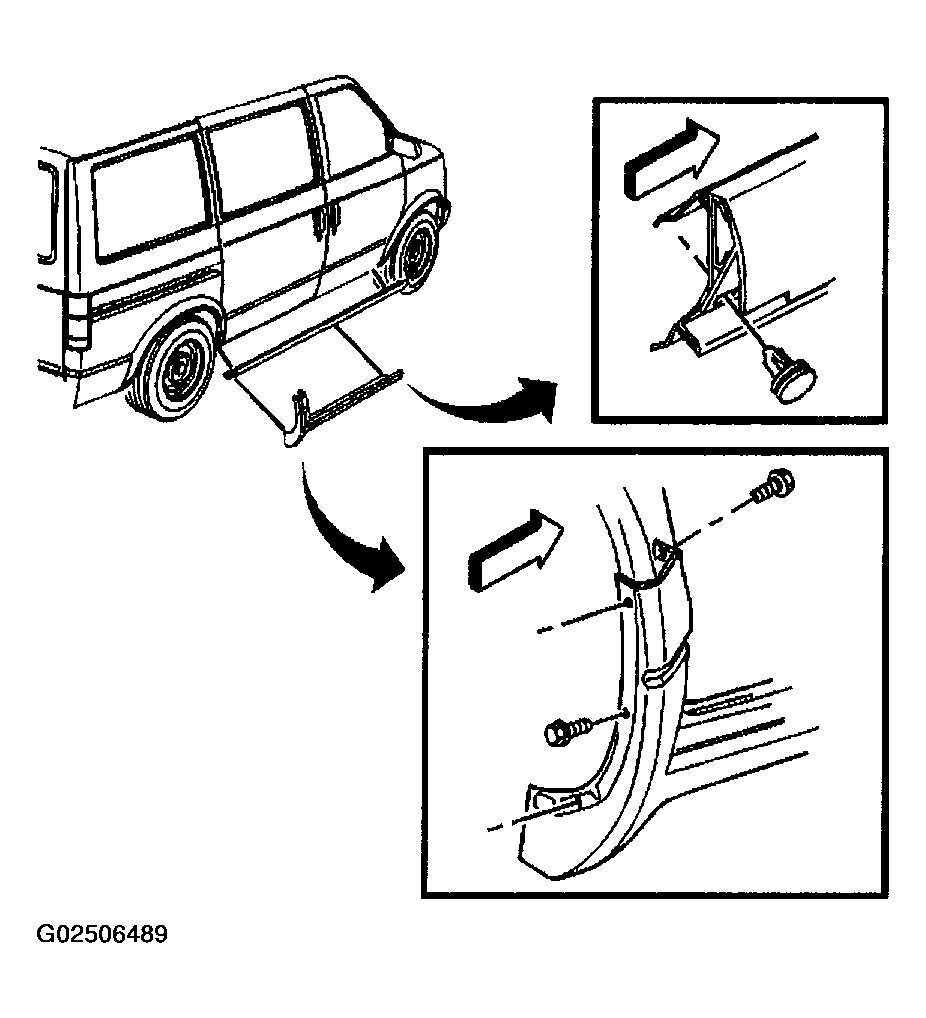

    Fig 2: Installing Rear Half Of Cladding To Retaining Rail
    G02506489Courtesy of GENERAL MOTORS CORP.
  6. Install the front half of the cladding to the retaining rail.
  7. Install the push-in retainers that retain the front half of the cladding to the retaining rail.
  8. Install the nut on the back of the cladding to the stud.

    Tighten

    Tighten the nut to 7 N.m (62 in. lb.).

  9. Install the retainers into the front wheelhouse extension flange.
  10. Install the screws retaining the front half of the cladding to the front wheelhouse.

    Tighten

    Tighten the screws to 2 N.m (18 in. lb.).

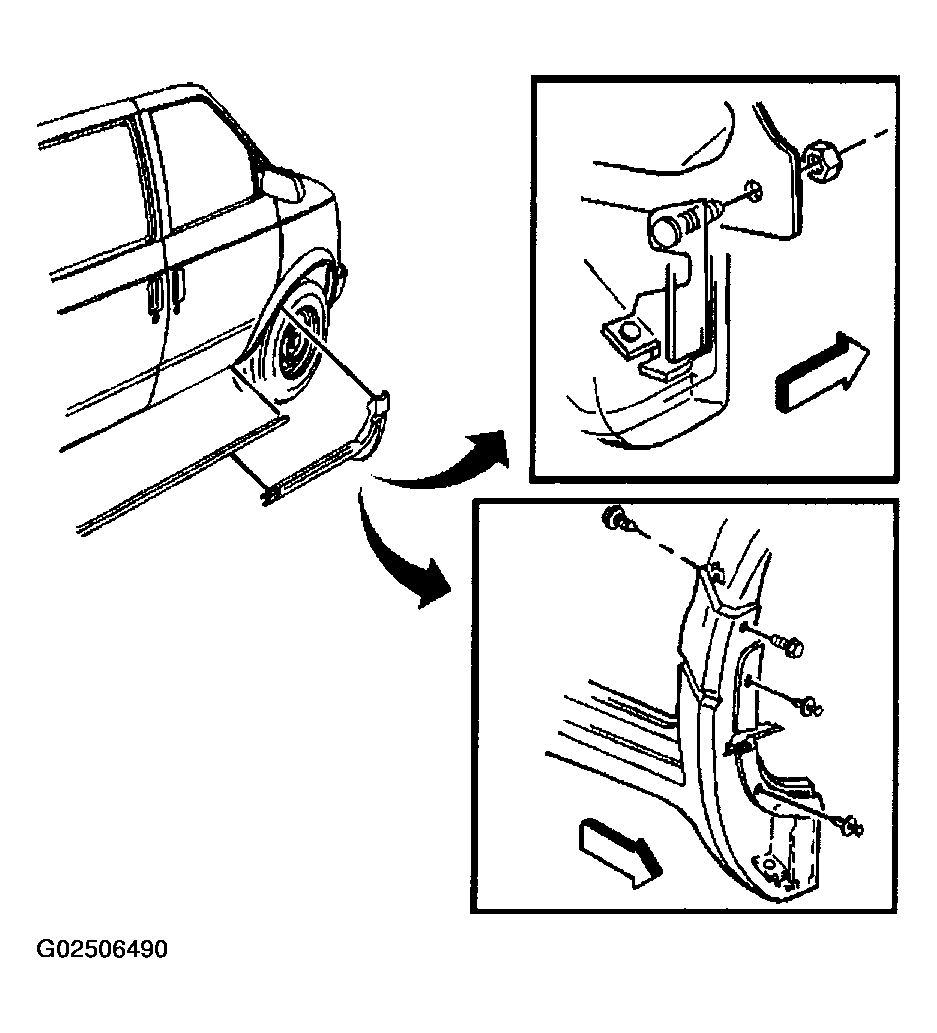

    Fig 3: Installing Retainers Into Front Wheelhouse Extension Flange
    G02506490Courtesy of GENERAL MOTORS CORP.
