Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear corner extension molding retainers.
  2. Remove the rear corner extension molding.
  3. Remove the cladding screws.
  4. Remove the cladding retainers.
  5. Remove the cladding from the body. Refer to Cladding Replacement - Adhesive Retained . .

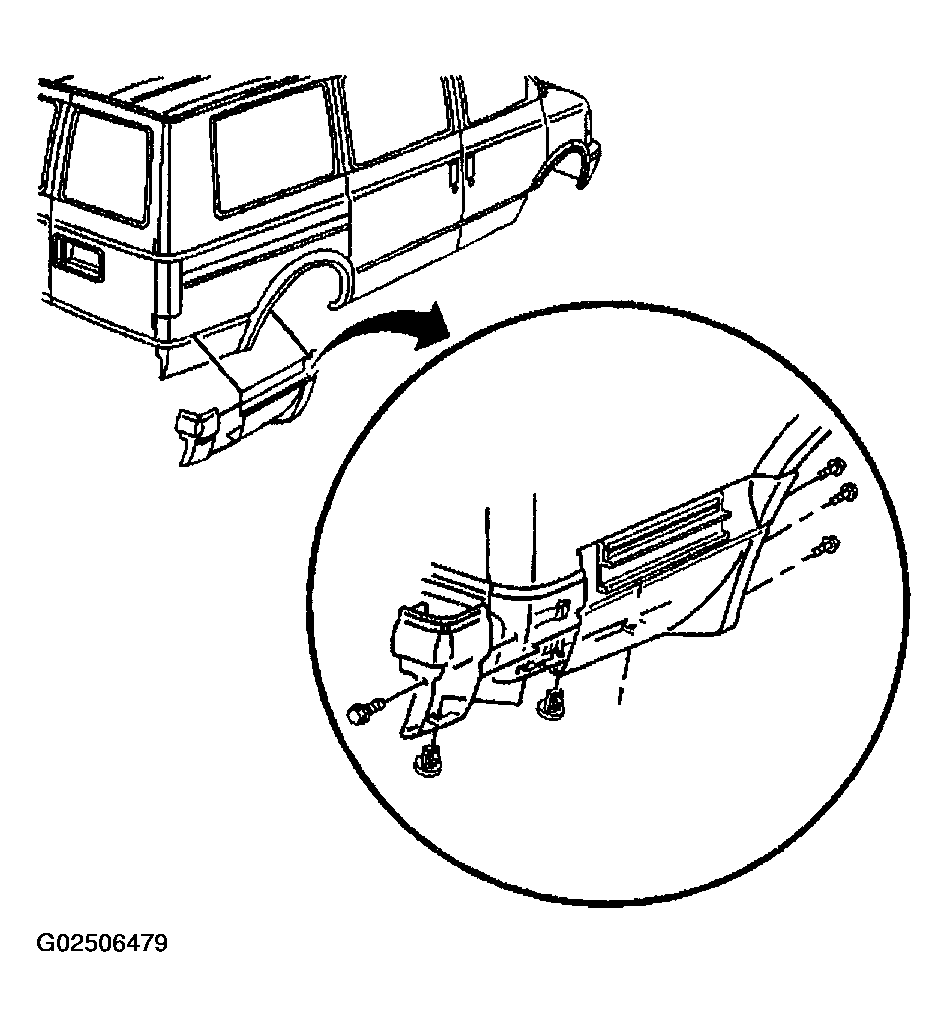

    Fig 1: Removing Right Quarter Panel Cladding
    G02506479Courtesy of GENERAL MOTORS CORP.
