Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cladding to the body. Refer to Cladding Replacement - Adhesive Retained .
    NOTE: Refer to Fastener Notice in GM VEHICLES CAUTIONS & NOTICES .
  2. Install the cladding screws.

    Tighten

    Tighten the cladding screws to 2 N.m (18 in. lb.).

  3. Install the cladding retainers.
  4. Install the rear corner extension molding.
  5. Install the rear corner extension molding retainers.

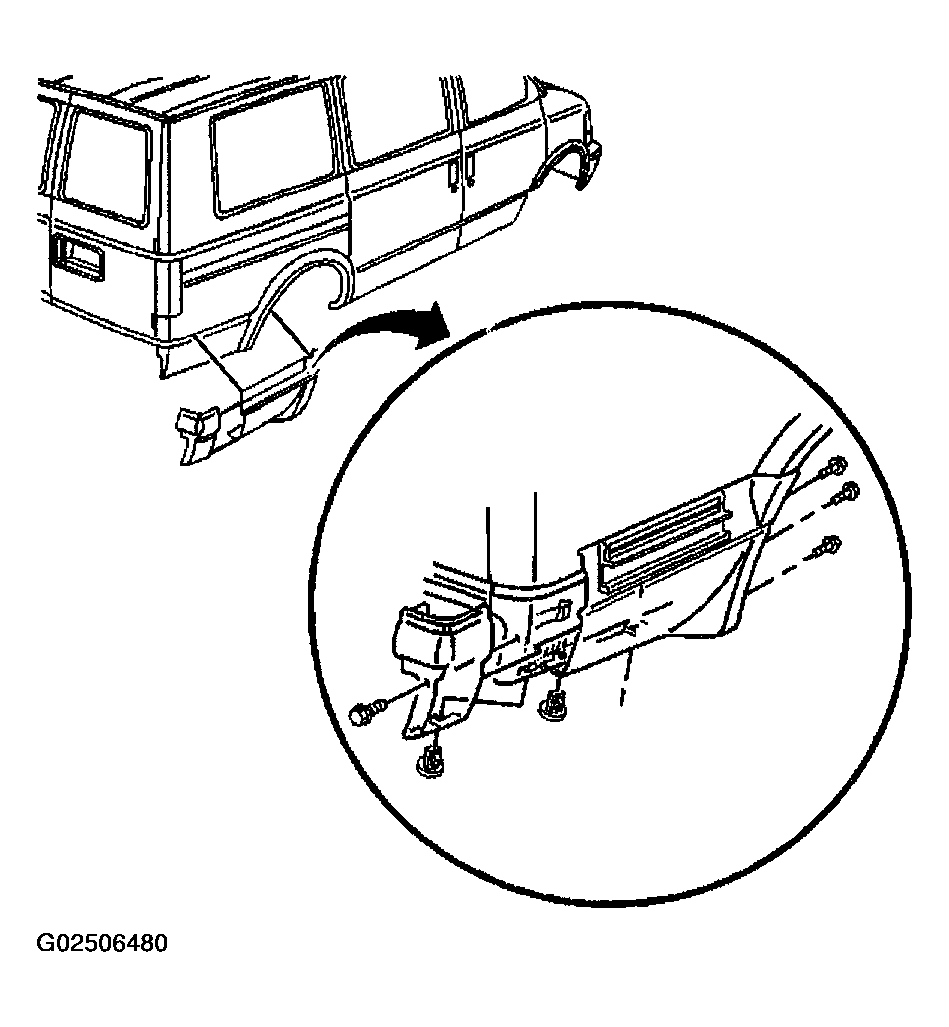

    Fig 1: Removing Right Quarter Panel Cladding
    G02506480Courtesy of GENERAL MOTORS CORP.
