Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Important  : For best appearance, install the cladding on the gap at the center of the doors, not at their outer edges.

Install the cladding to the body. Refer to Cladding Replacement - Adhesive Retained .

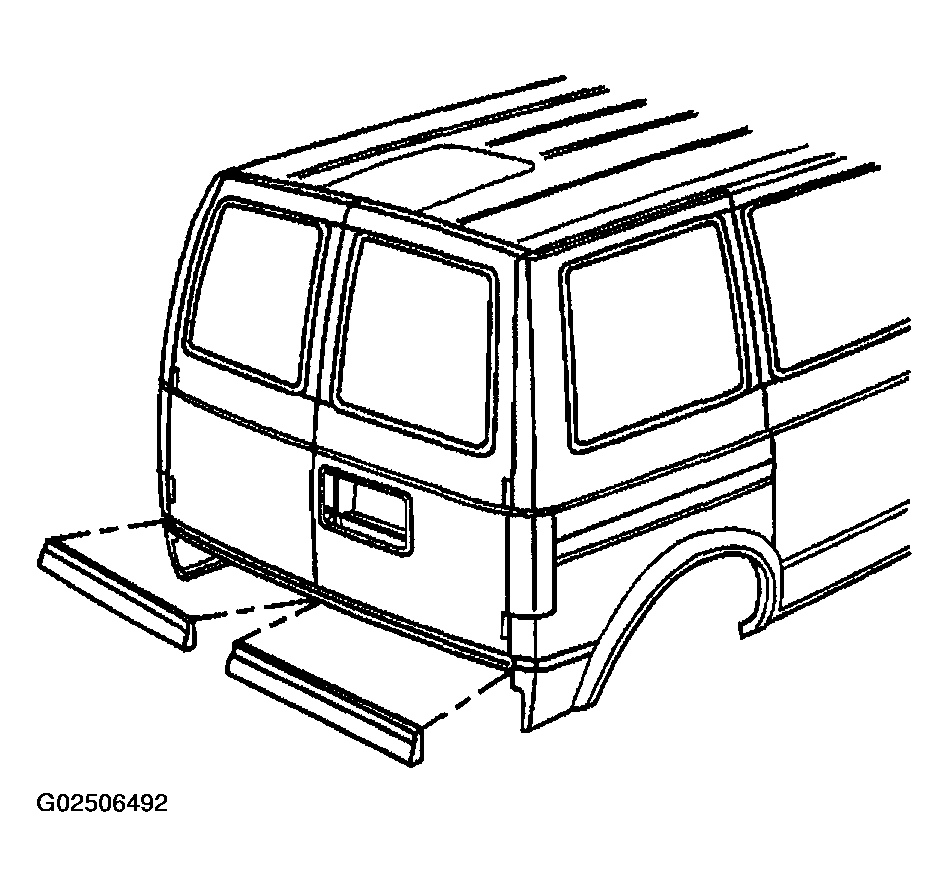

Fig 1: Installing Rear Door Lower Cladding
G02506492Courtesy of GENERAL MOTORS CORP.
