Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the cladding.
  2. Remove the retainers from the wheelhouse.
  3. Remove the nut on the back of the cladding from the stud.
  4. Remove the cladding from the retaining rail.

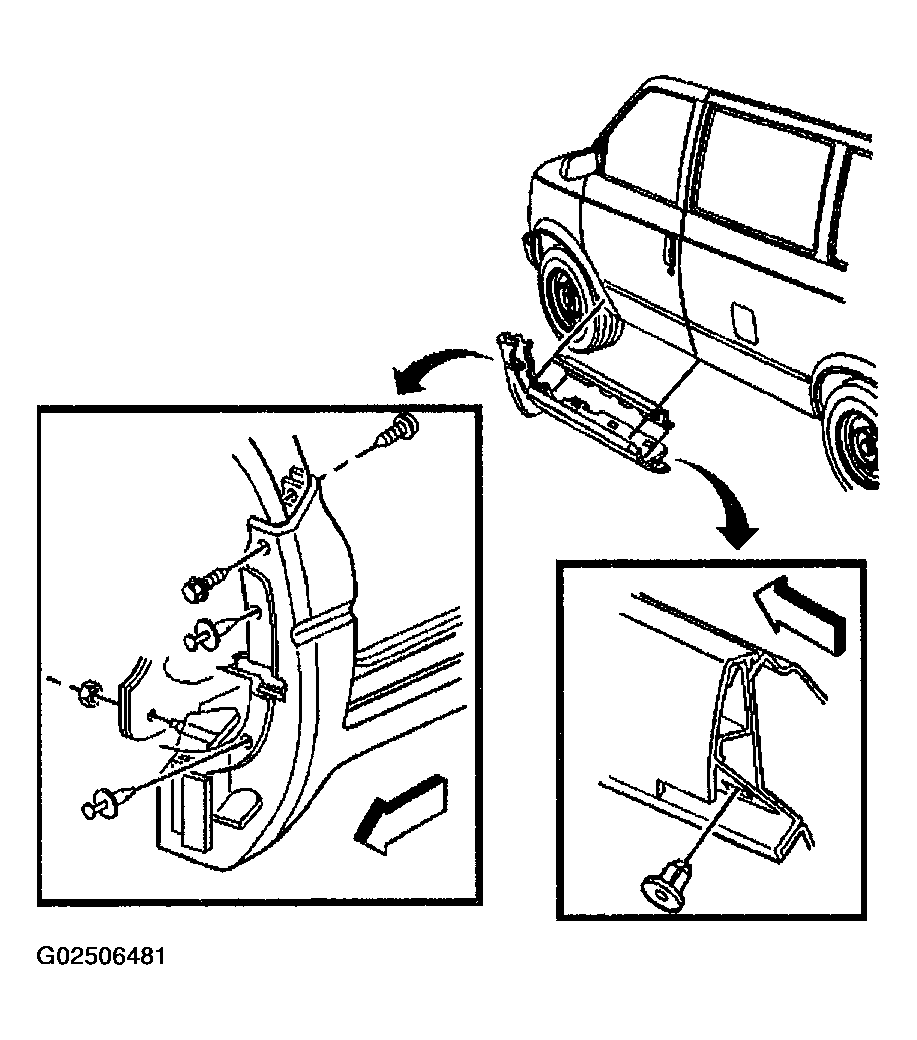

    Fig 1: Removing Left Rocker Panel Cladding From Retaining Rail
    G02506481Courtesy of GENERAL MOTORS CORP.
  5. Remove the retaining rail screws.
  6. Remove the retaining rail from the body.

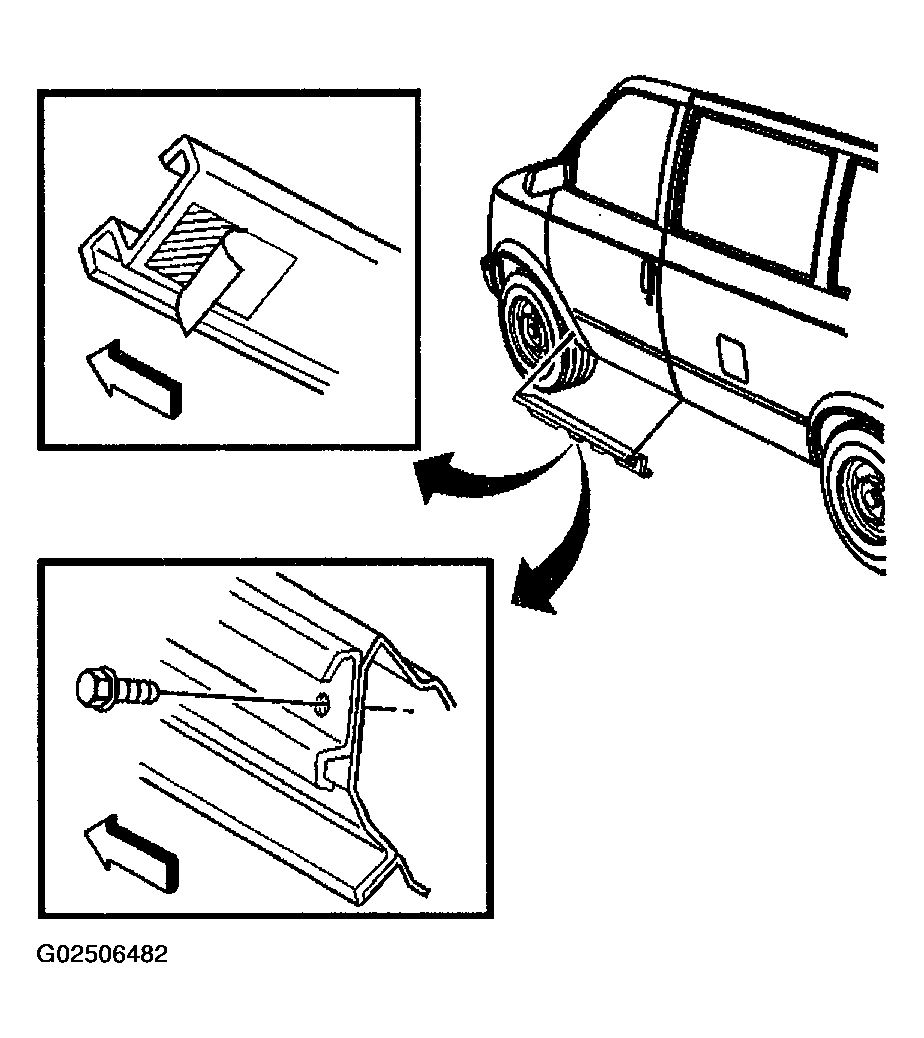

    Fig 2: Removing Retaining Rail
    G02506482Courtesy of GENERAL MOTORS CORP.
