Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel opening screws. If the vehicle is equipped with assist steps, the cladding will be shorter across the bottom.
  2. Remove the cladding from the rear quarter panel. Refer to Cladding Replacement - Adhesive Retained .

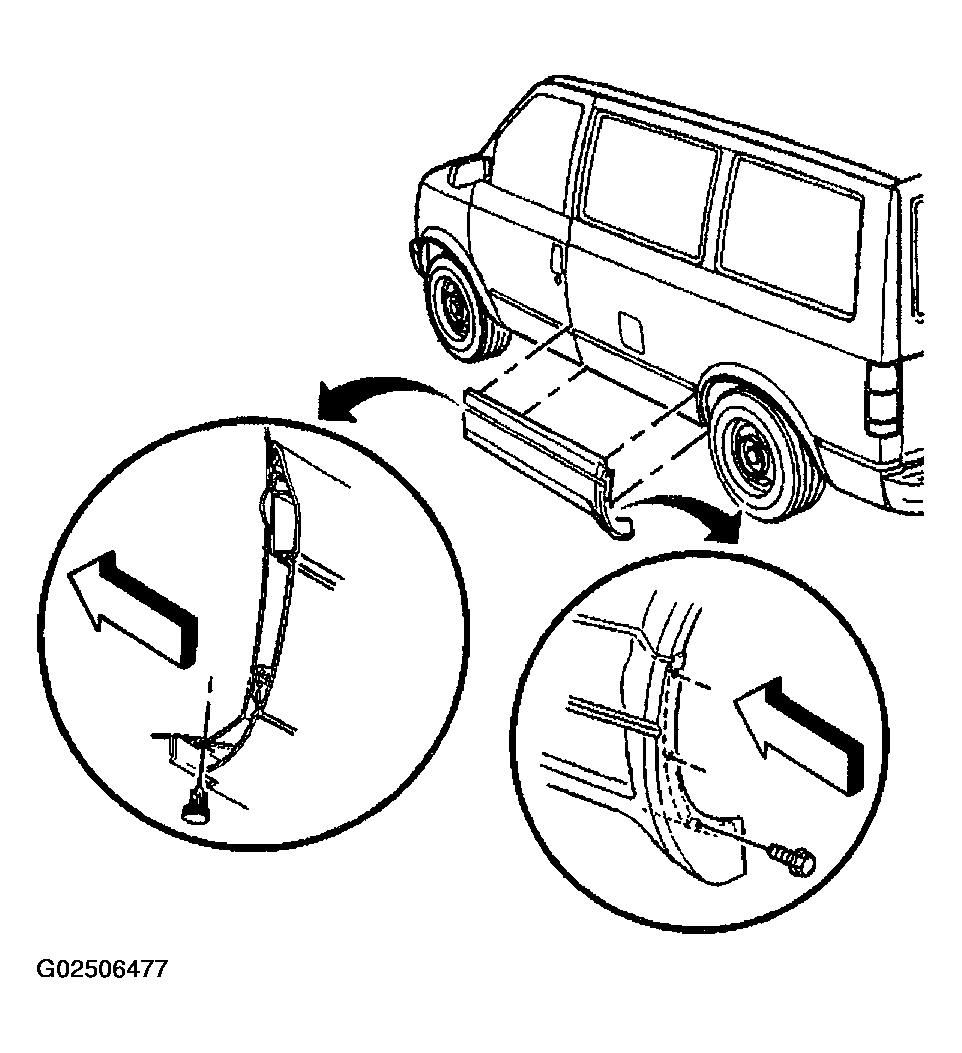

    Fig 1: Removing Left Quarter Panel Cladding
    G02506477Courtesy of GENERAL MOTORS CORP.
