Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cladding to the rear quarter panel. Refer to Cladding Replacement - Adhesive Retained .
    NOTE: Refer to Fastener Notice in GM VEHICLES CAUTIONS & NOTICES .
  2. Install the wheel opening screws.

    Tighten

    Tighten the wheel opening screws to 2 N.m (18 in. lb.).

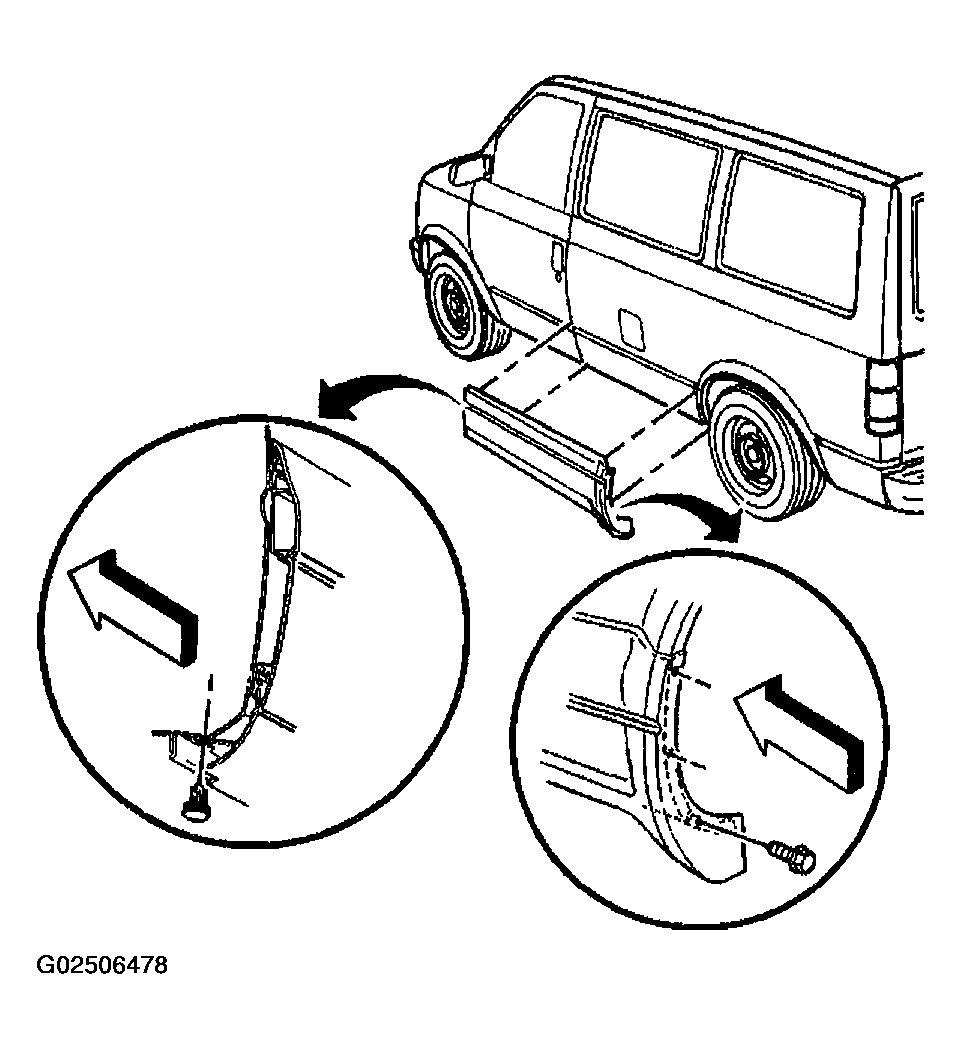

    Fig 1: Installing Left Quarter Panel Cladding
    G02506478Courtesy of GENERAL MOTORS CORP.
