Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT -- DOOR . .
  2. Remove the door window run channel from the door frame.
  3. Remove the emblem from the door. Refer to Molding/Nameplate Replacement - Exterior Trim . Apply the transfers in a clean environment where dust or fibers will not interfere with proper adhesion.
  4. Use a heat gun or other suitable tool in order to heat the transfer.
    Fig 1: Removing Door Trim Panel
    G02506494Courtesy of GENERAL MOTORS CORP.
  5. Slowly peel the transfer from the door.

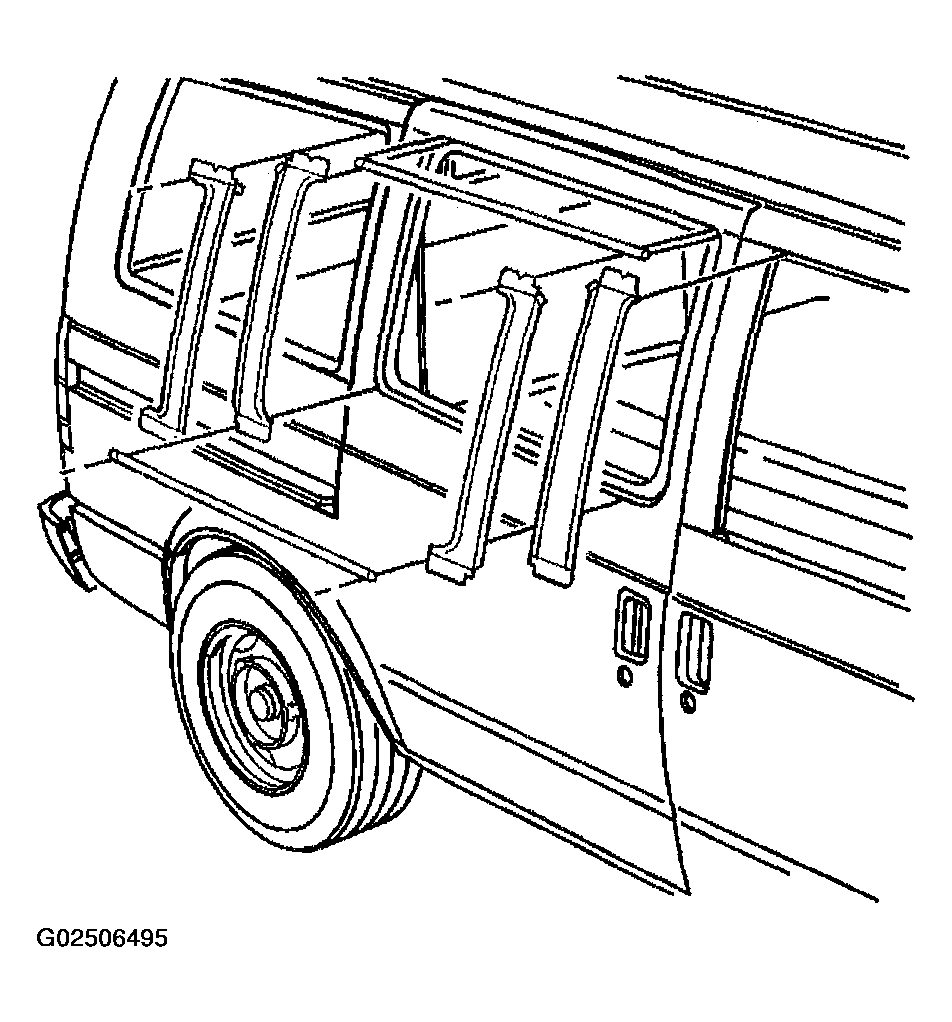

    Fig 2: Removing Transfer From Door
    G02506495Courtesy of GENERAL MOTORS CORP.
