Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Pull the hood rear weather-strip from the pinch-weld flange.
  3. Remove the hood rear weather-strip from the vehicle.

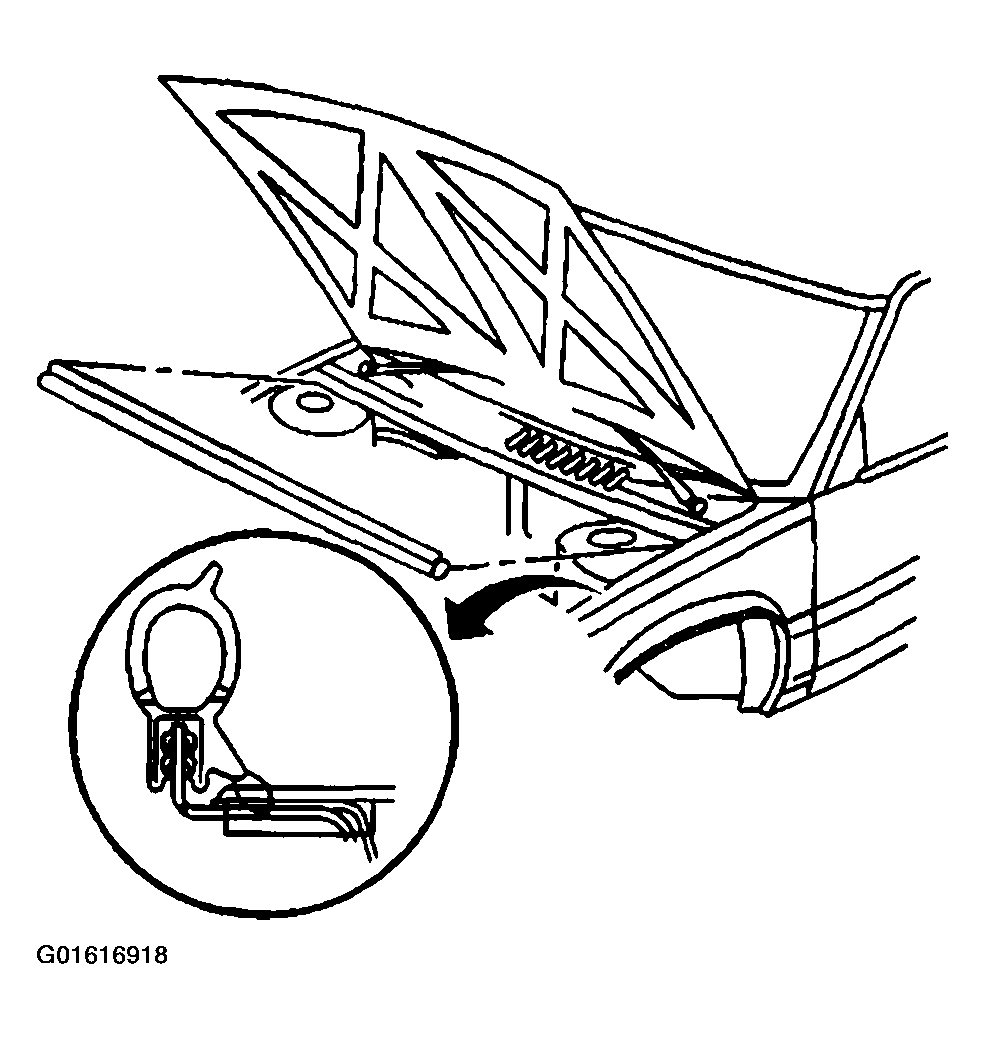

    Fig 1: Hood Rear Weather-Strip
    G01616918Courtesy of GENERAL MOTORS CORP.
