Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Pull the rear side hood seal from the pinch-weld flange and motor compartment flange.
  3. Remove the rear side hood seal from the vehicle.
  4. Use 3MTM 8984 adhesive remover to clean any adhesive from the pinch-weld flange and motor compartment flange surface.

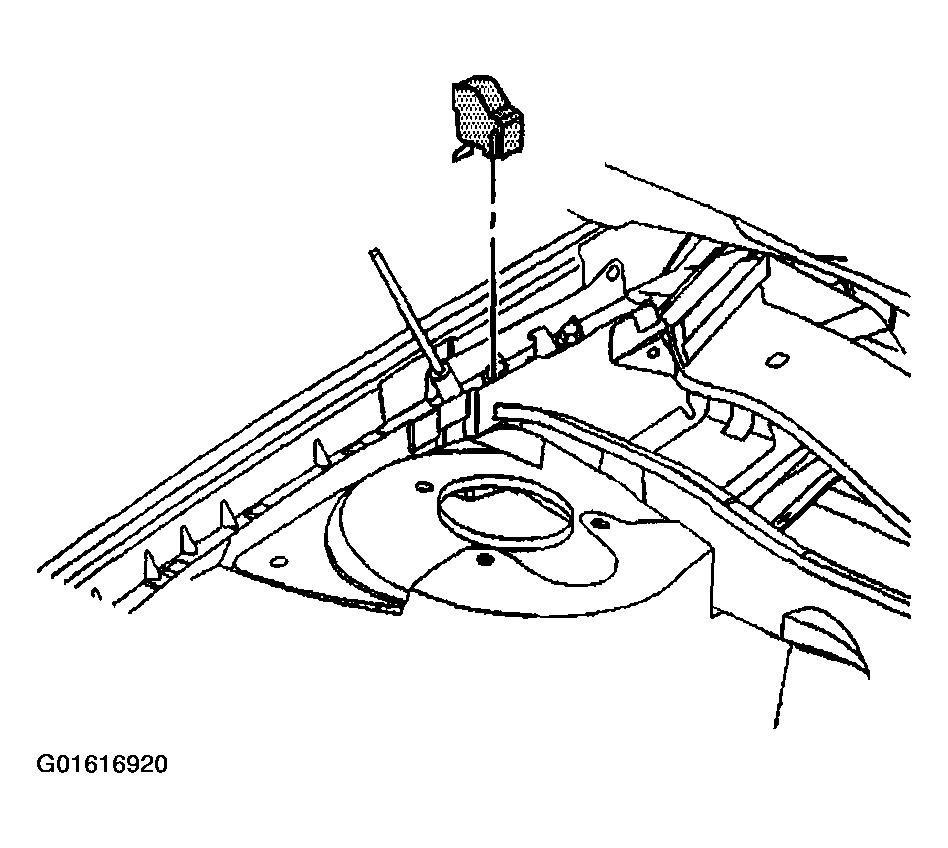

    Fig 1: Rear Side Hood Seal
    G01616920Courtesy of GENERAL MOTORS CORP.
