Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove nuts (mastic washers) from the center of the water management tray discard the nuts.

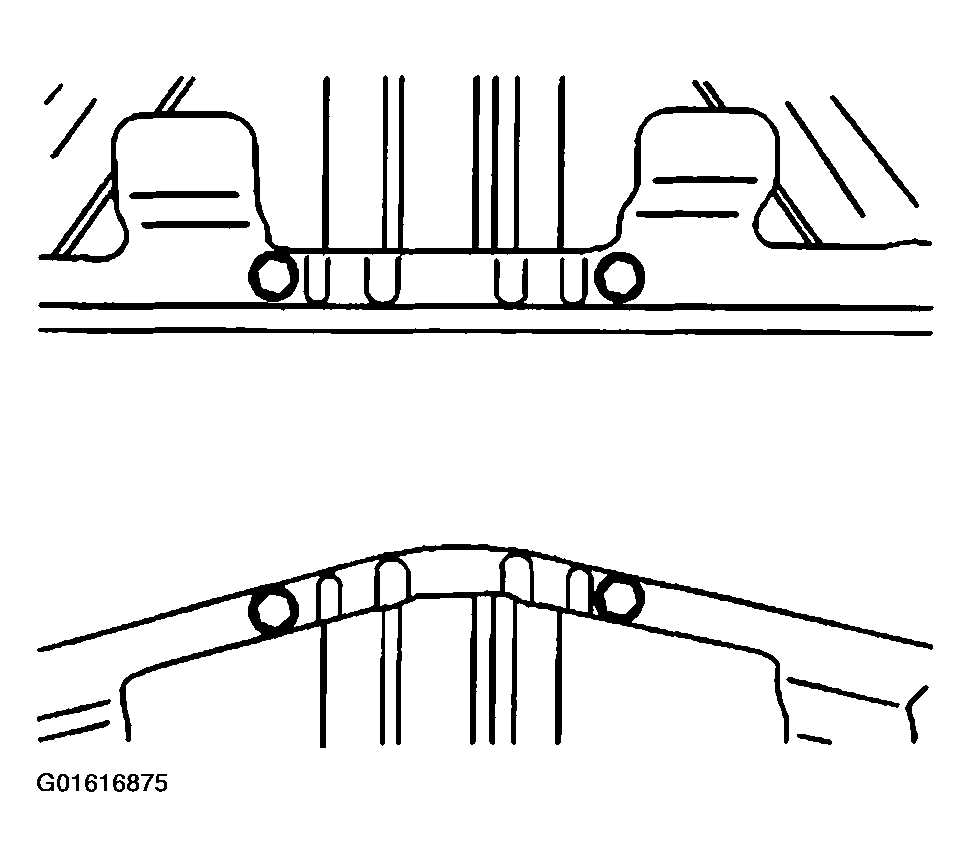

    Fig 1: Water Management Tray Nuts
    G01616875Courtesy of GENERAL MOTORS CORP.
  3. Remove the retainers from the water management tray.
  4. Remove the water management tray from the hood.

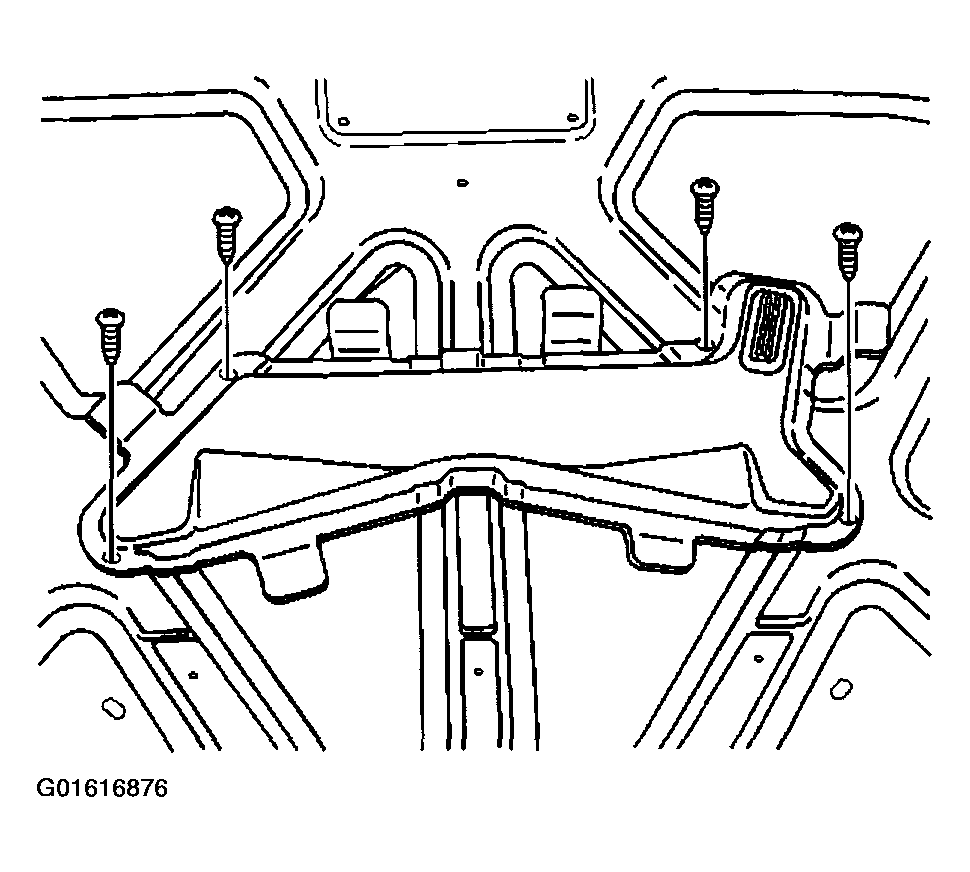

    Fig 2: Water Management Tray
    G01616876Courtesy of GENERAL MOTORS CORP.
