Test Description

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to step numbers on the Diagnostic Table.

  1. 2. This step determines if the DTC is current.

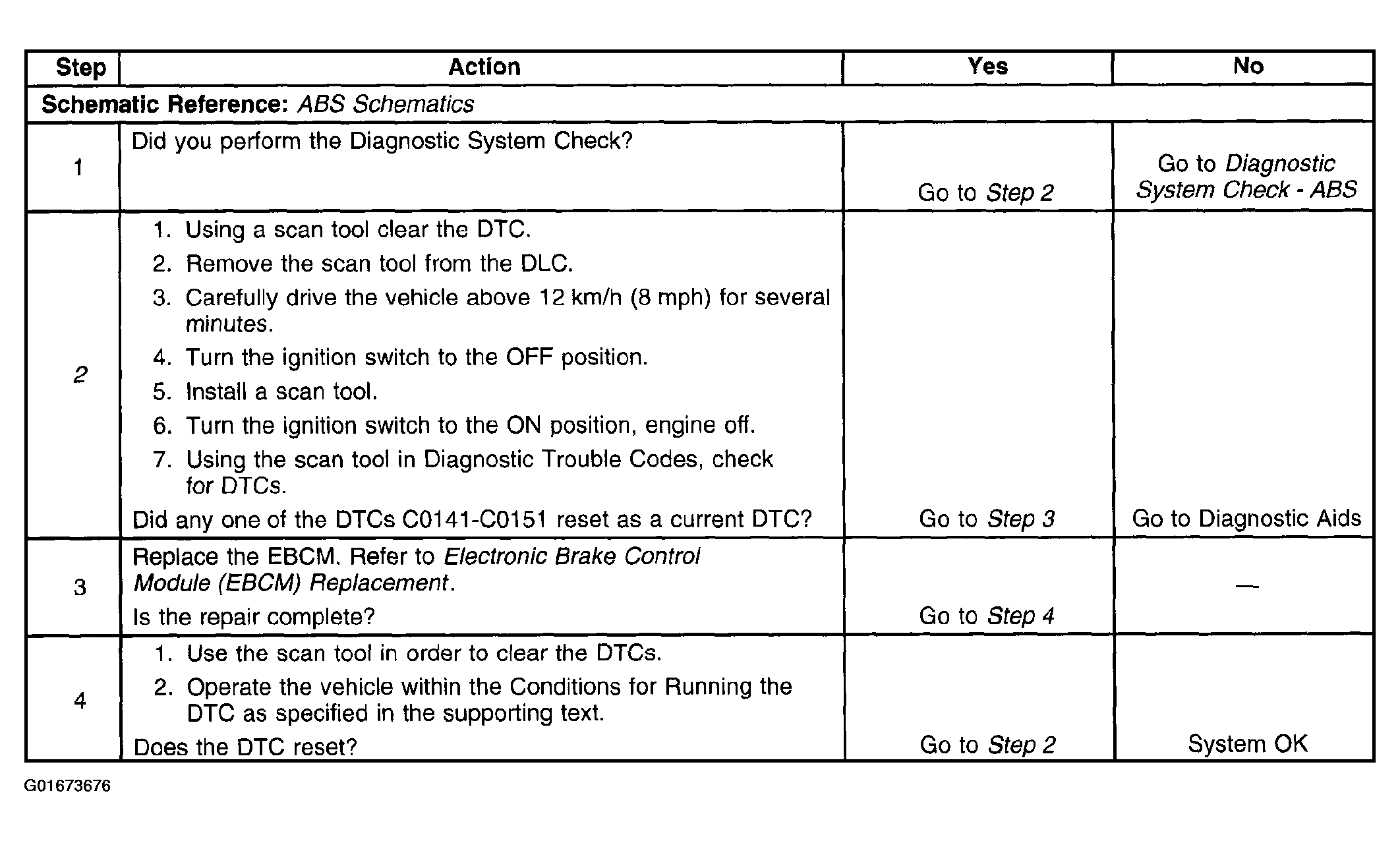

    Fig 1: DTC C0141-C0156
    G01673676Courtesy of GENERAL MOTORS CORP.
