Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the seat belt guide loop cover.
  2. Remove the seat belt guide loop nut.
  3. Remove the seat belt guide loop from the guide adjuster bracket.
  4. Remove the upper center pillar panel trim. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR in Interior Trim.

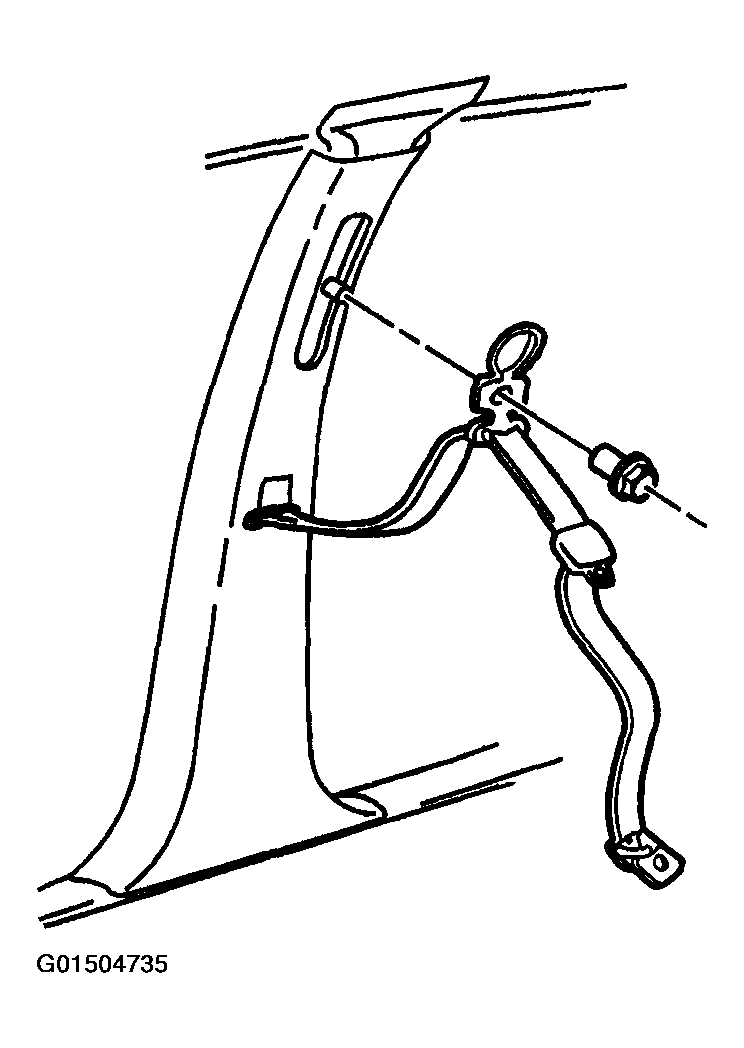

    Fig 1: Removing Seat Belt Guide Loop Nut
    G01504735Courtesy of GENERAL MOTORS CORP.
  5. Remove the lower center pillar panel trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR in Interior Trim.
  6. Remove the seat belt intermediate guide bolts.
    Fig 2: Removing Seat Belt Intermediate Guide Bolts
    G01504736Courtesy of GENERAL MOTORS CORP.
  7. Remove the anchor plate nut from the seat stud.
  8. Remove the anchor plate from the seat stud.

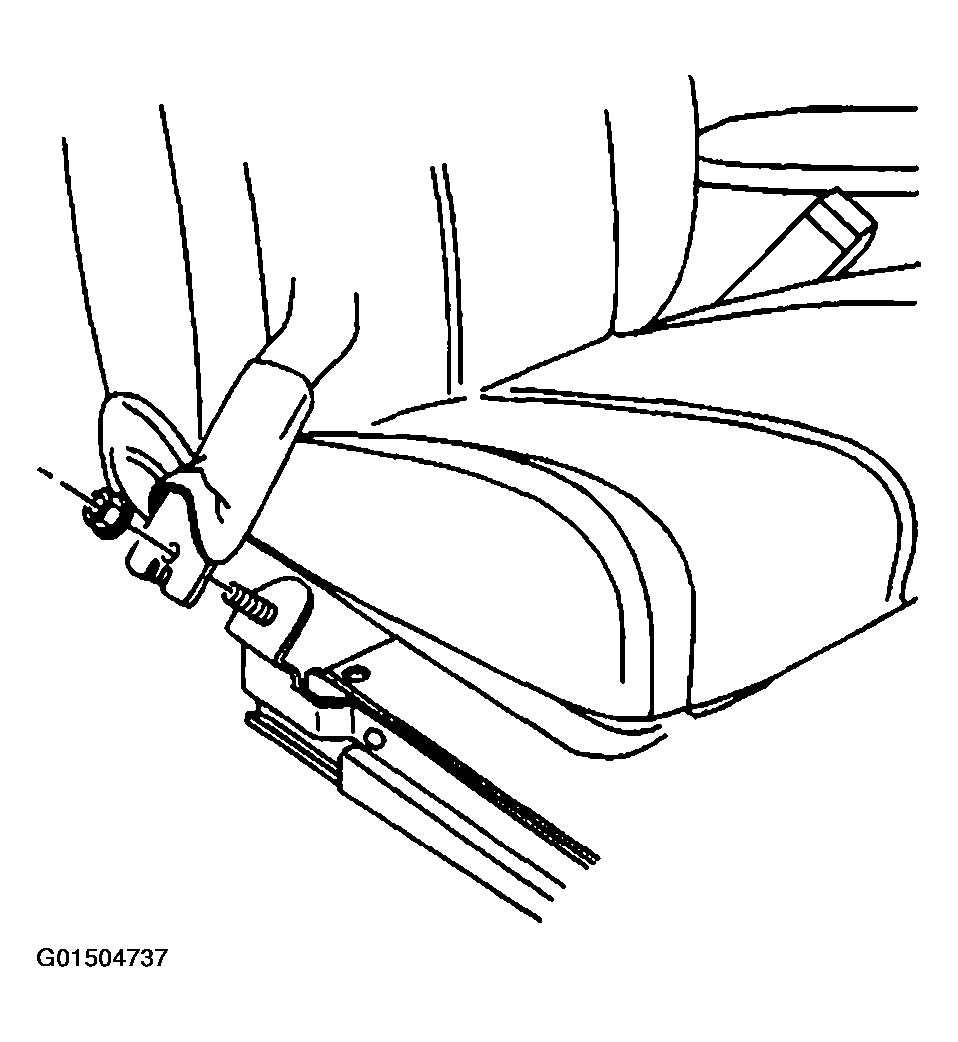

    Fig 3: Removing Anchor Plate Nut From Seat Stud
    G01504737Courtesy of GENERAL MOTORS CORP.
  9. Remove the retractor side seat belt bolt.
  10. Remove the retractor side seat belt from the lower center pillar.

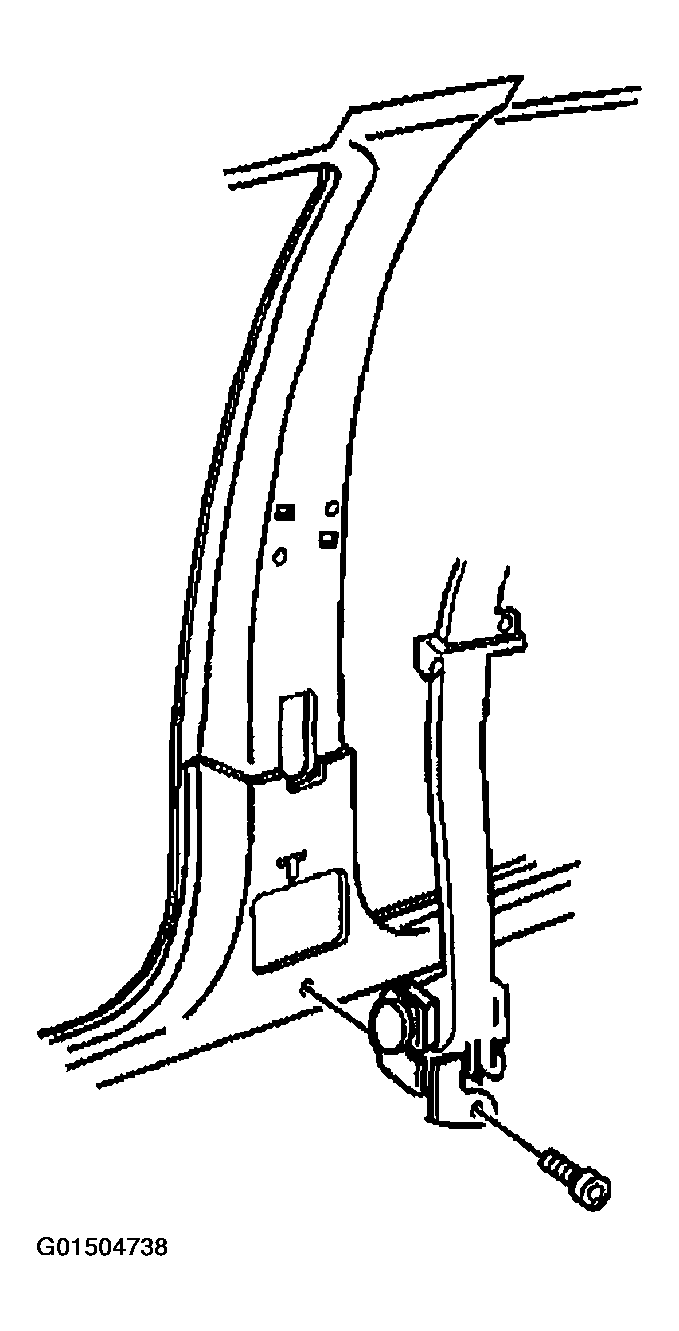

    Fig 4: Removing Retractor Side Seat Belt Bolt
    G01504738Courtesy of GENERAL MOTORS CORP.
