Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position drivers seat to the rearward position.
  2. Remove the nut from the seat belt buckle.
    Fig 1: Removing Nut From Seat Belt Buckle
    G01504717Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the seat belt buckle.
  4. Remove the seat belt buckle from the left front seat.

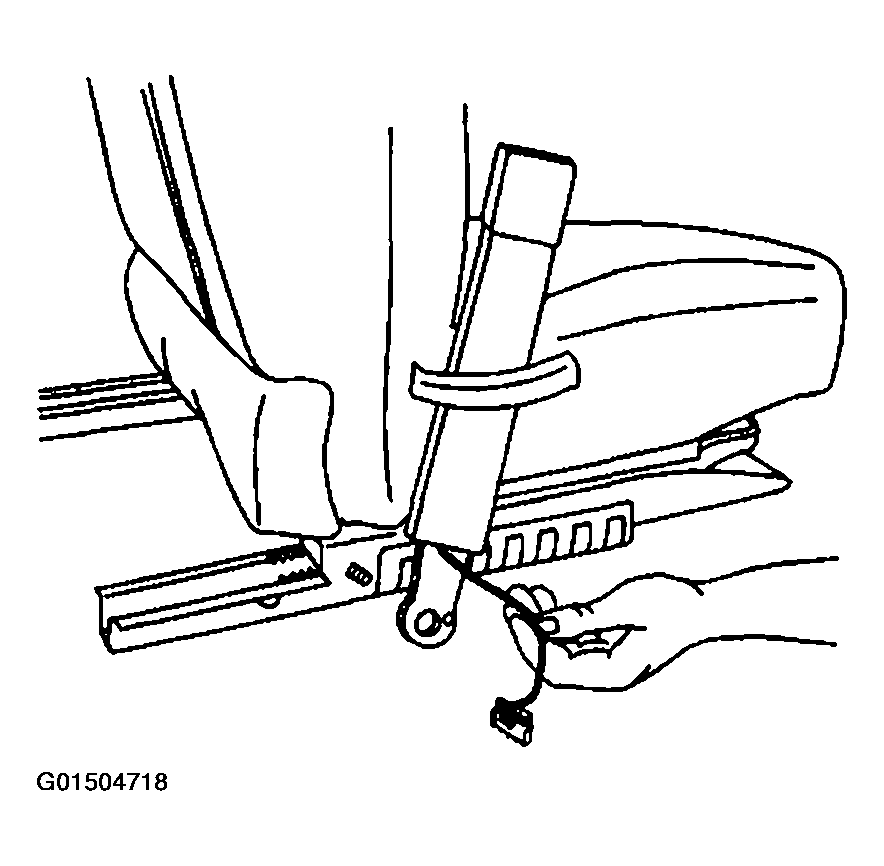

    Fig 2: View of Seat Belt Buckle Electrical Connector
    G01504718Courtesy of GENERAL MOTORS CORP.
