Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle to the left front seat.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install buckle side seat belt nut.

    Tighten

    Tighten the seat belt buckle nut to 42 N.m (31 lb ft).

    Fig 1: Installing Seat Belt Buckle To Left Front Seat
    G01504719Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector from the seat belt buckle.
  4. Position the left front seat to the original position.

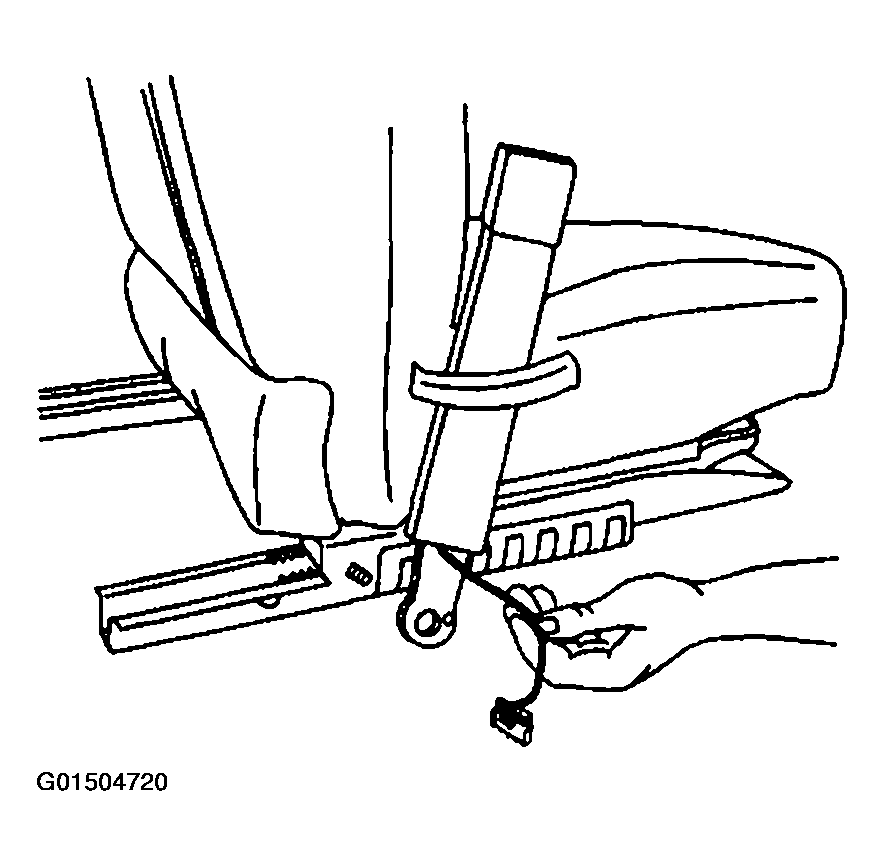

    Fig 2: View of Seat Belt Buckle Electrical Connector
    G01504720Courtesy of GENERAL MOTORS CORP.
