Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear wheelhouse liner to the rear wheelhouse.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

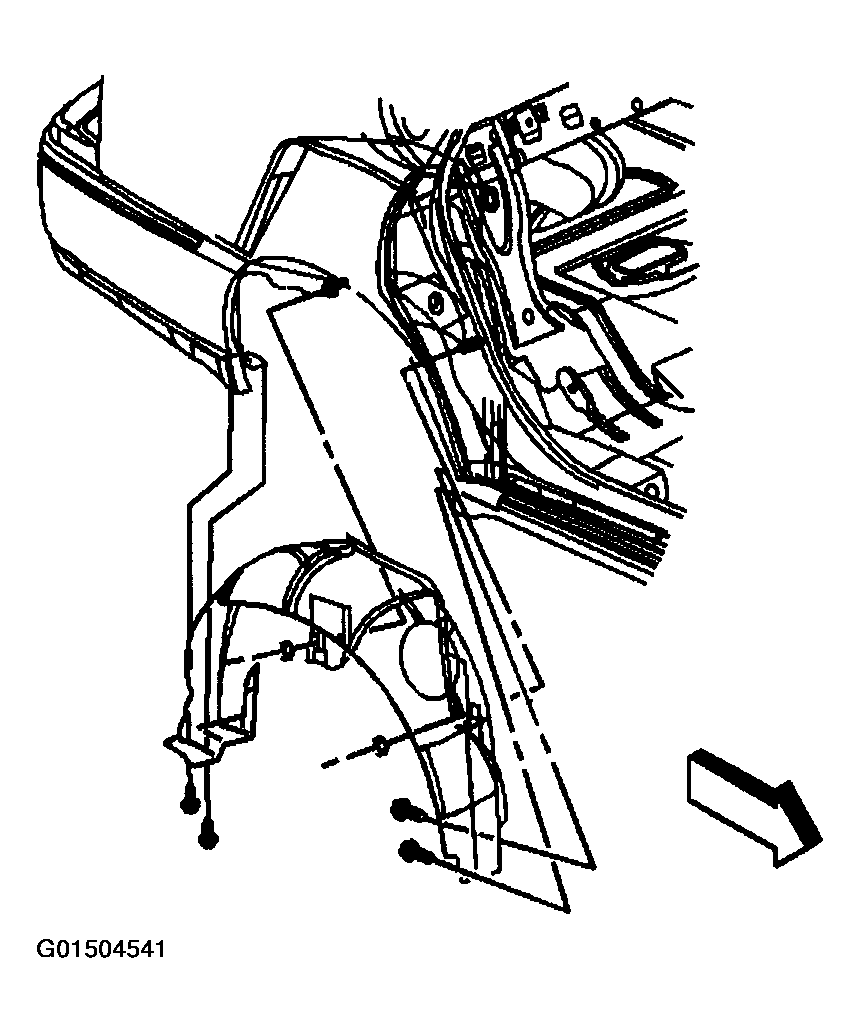

    Fig 1: Installing Rear Wheelhouse Liner Into Vehicle
    G01504541Courtesy of GENERAL MOTORS CORP.
  2. Install the rear wheelhouse liner to rear wheelhouse palnuts.

    Tighten

    Tighten the rear wheelhouse liner to rear wheelhouse palnuts to 2 N.m (18 lb in).

  3. Install the lower quarter panel to rear wheelhouse liner push-in retainers.
  4. Install the rocker panel to rear wheelhouse liner screws.

    Tighten

    Tighten the rocker panel to rear wheelhouse liner screws to 2 N.m (18 lb in).

  5. Install the rear tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle.
