Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the nuts from the studs on the rear end spoiler.
  3. Remove the rear end spoiler from the rear compartment lid.

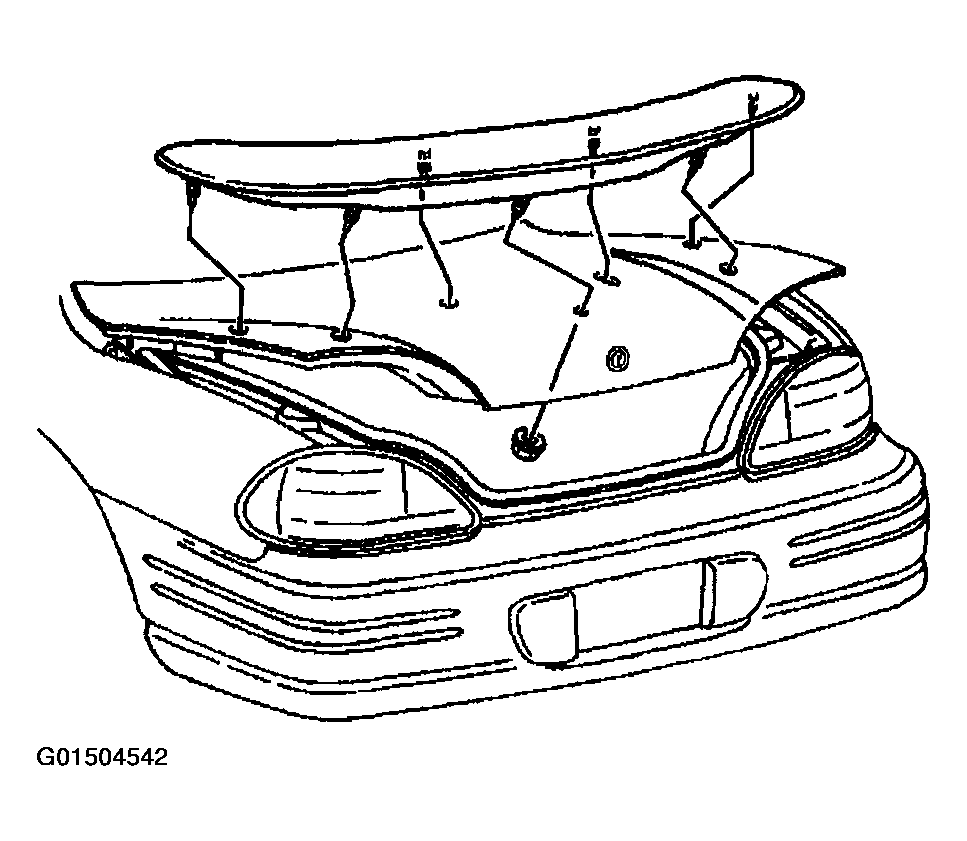

    Fig 1: Removing Rear End Spoiler From Rear Compartment Lid
    G01504542Courtesy of GENERAL MOTORS CORP.
