Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear quarter upper trim panel to the rear quarter inner panel.
  2. Install the rear quarter upper trim panel by pressing into place until fully seated.
  3. Press the rear door weatherstrip onto the pinchweld flange.
  4. Install the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR (STATIONARY) or SEAT BACK REPLACEMENT -- REAR (FOLDING) in Seats.
  5. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR in Seats.

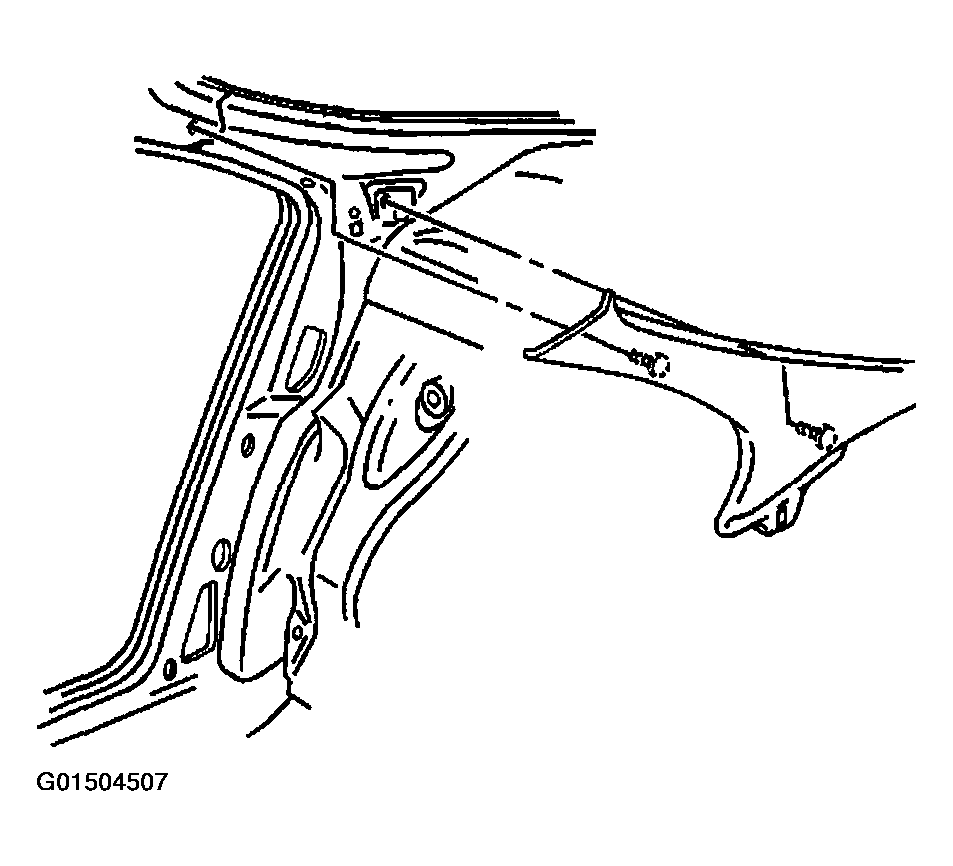

    Fig 1: Installing Rear Quarter Upper Trim Panel To Rear Quarter Inner Panel
    G01504507Courtesy of GENERAL MOTORS CORP.
