Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR  .
  2. Remove the retainer from the floor using a flat-bladed tool.
  3. Remove the rear seat cushion retainer from the floor.

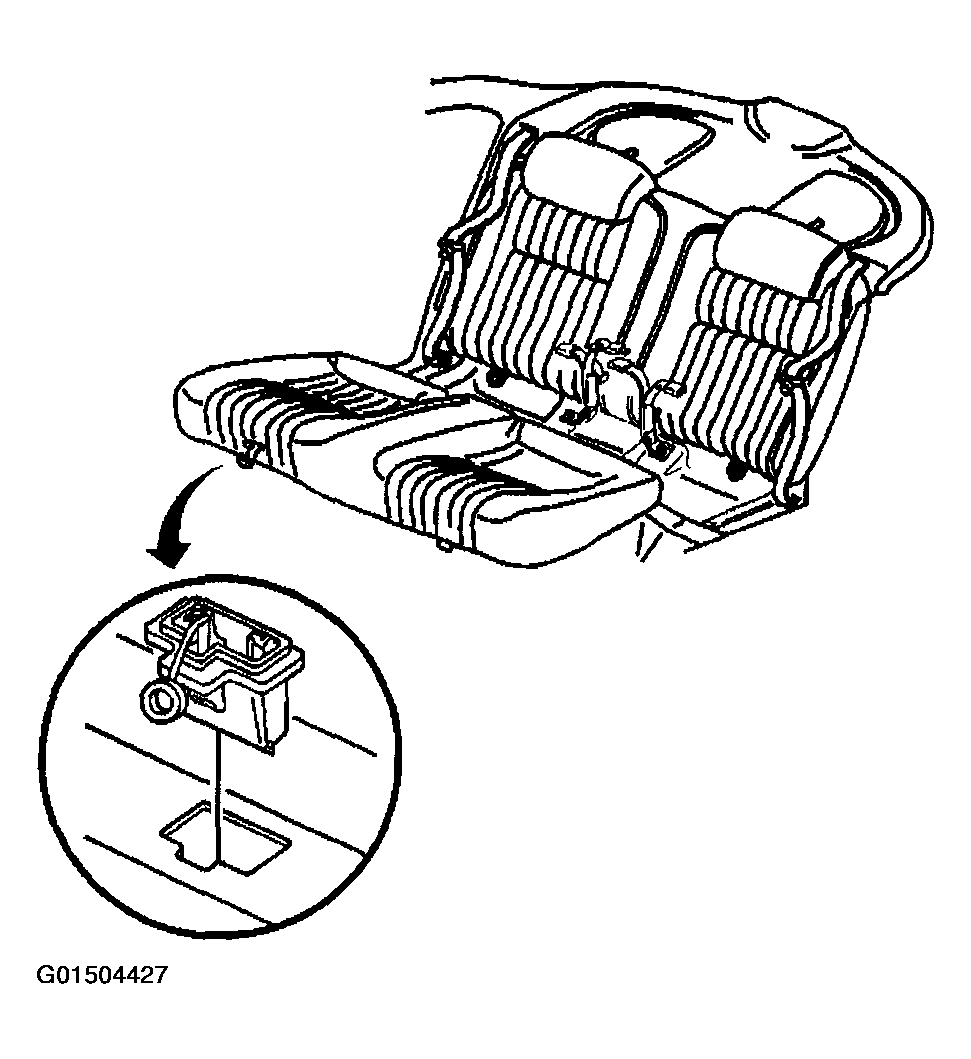

    Fig 1: Removing Rear Seat Cushion Retainer From Floor
    G01504427Courtesy of GENERAL MOTORS CORP.
