Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (STATIONARY)  or SEAT BACK REPLACEMENT - REAR (FOLDING)  .
  2. Remove the push-in J-hook retainers from both rear seat bolsters.

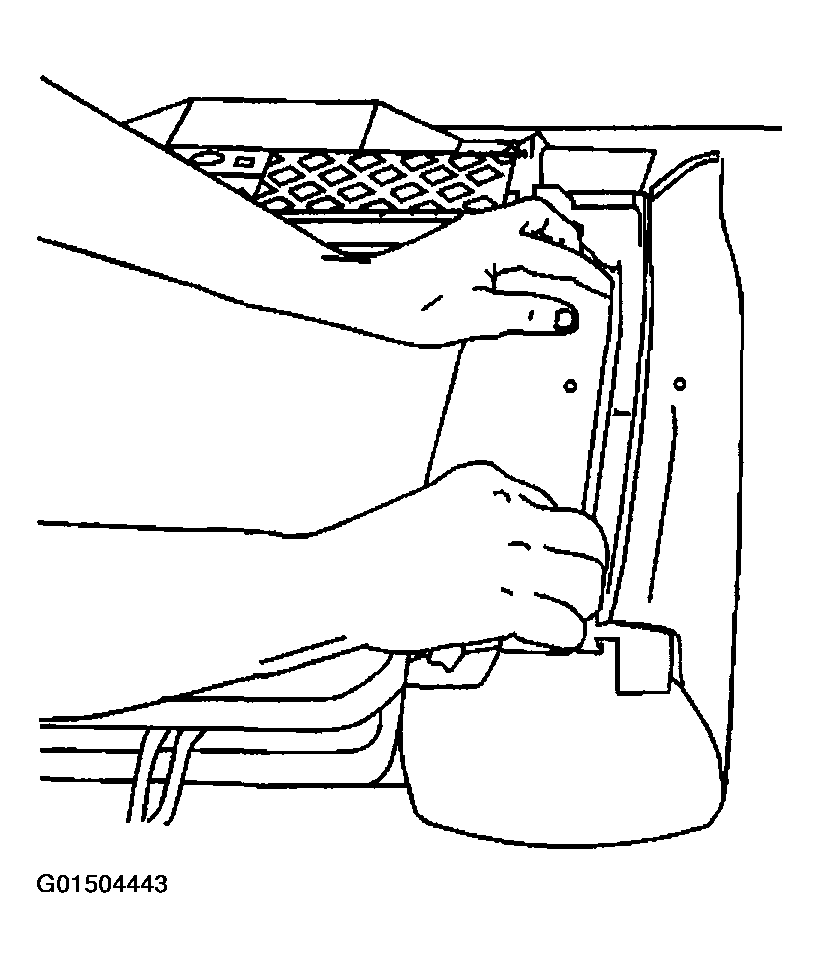

    Fig 1: Removing Push-In J-Hook Retainers From Both Rear Seat Bolsters
    G01504443Courtesy of GENERAL MOTORS CORP.
  3. Pull back the trim on the right bolster in order to expose the rear compartment release handle cable, if equipped.
  4. Reposition the compartment release handle cable from the right seat bolster, if equipped.

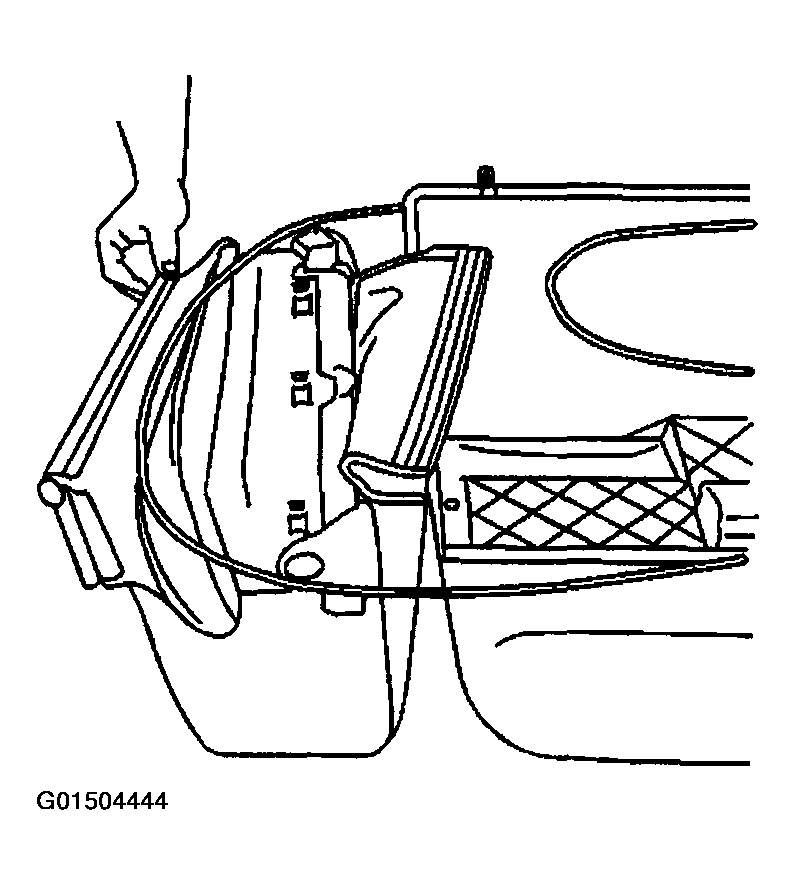

    Fig 2: Removing Compartment Release Handle Cable From Right Seat Bolster
    G01504444Courtesy of GENERAL MOTORS CORP.
  5. Pull back the seat bolster trim to expose the seat frame bolts.
  6. Remove the bolts from the left and/or the right seat bolster.
  7. Remove the left and/or the right seat bolster from the seat back frame.

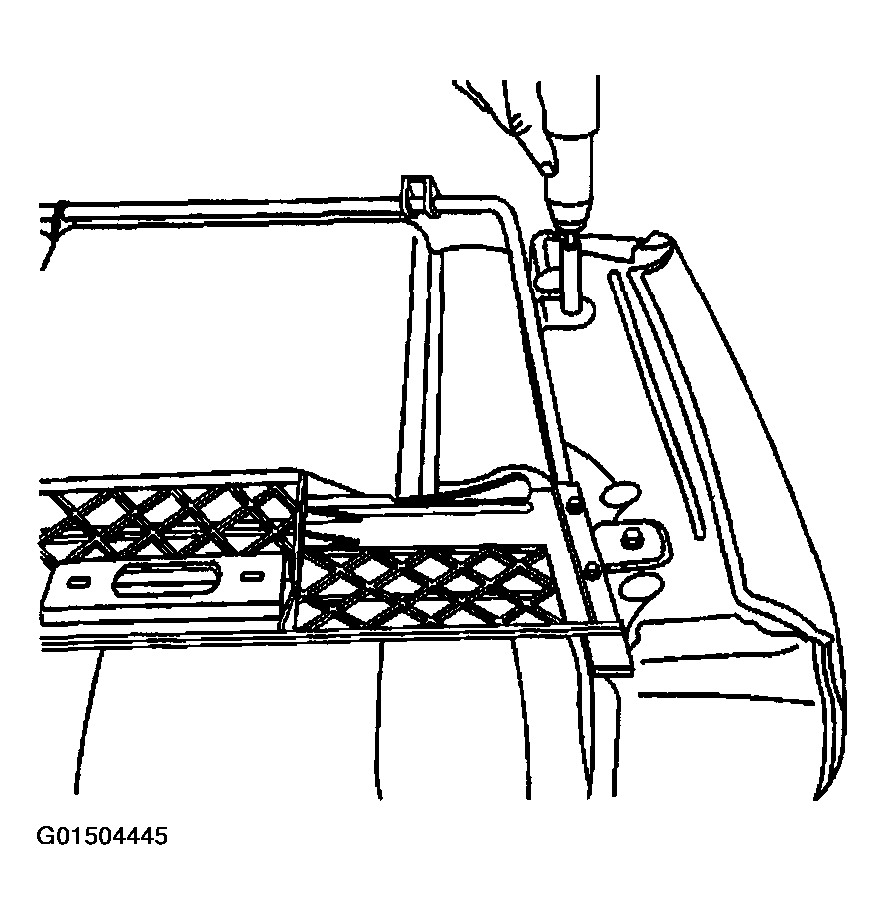

    Fig 3: Removing Left And Right Seat Bolster From Seat Back Frame
    G01504445Courtesy of GENERAL MOTORS CORP.
  8. Remove the push-in retainers from the center of the bolsters.

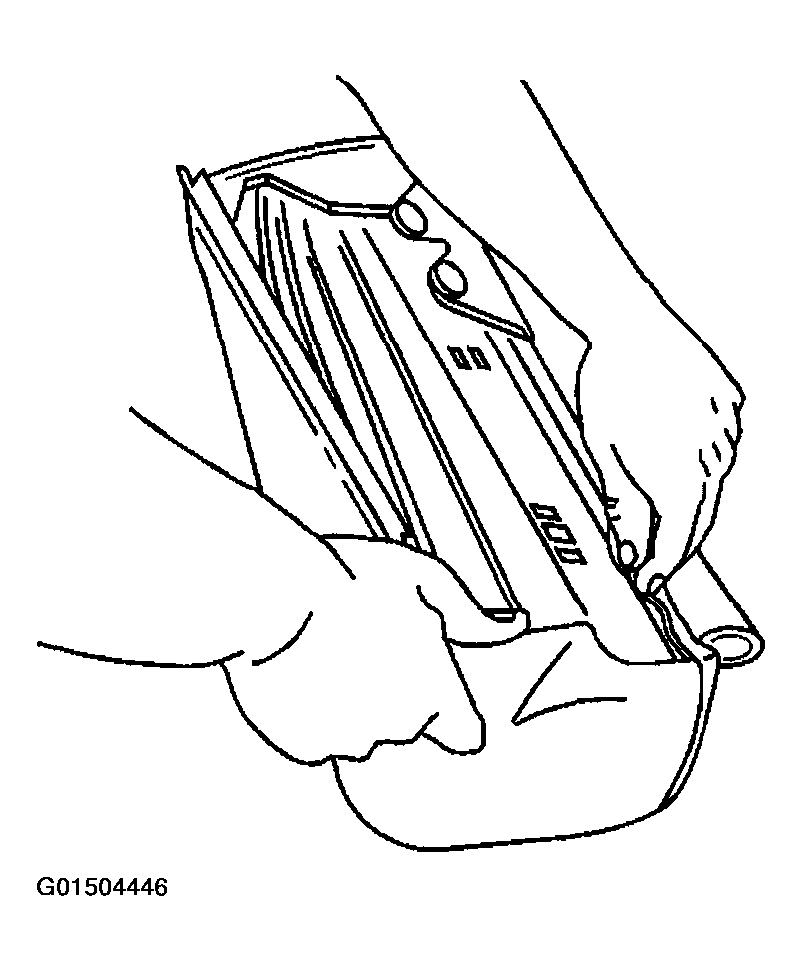

    Fig 4: Removing Push-In Retainers From Center Of Bolsters
    G01504446Courtesy of GENERAL MOTORS CORP.
  9. Remove the push-in tab from the end of the bolsters.

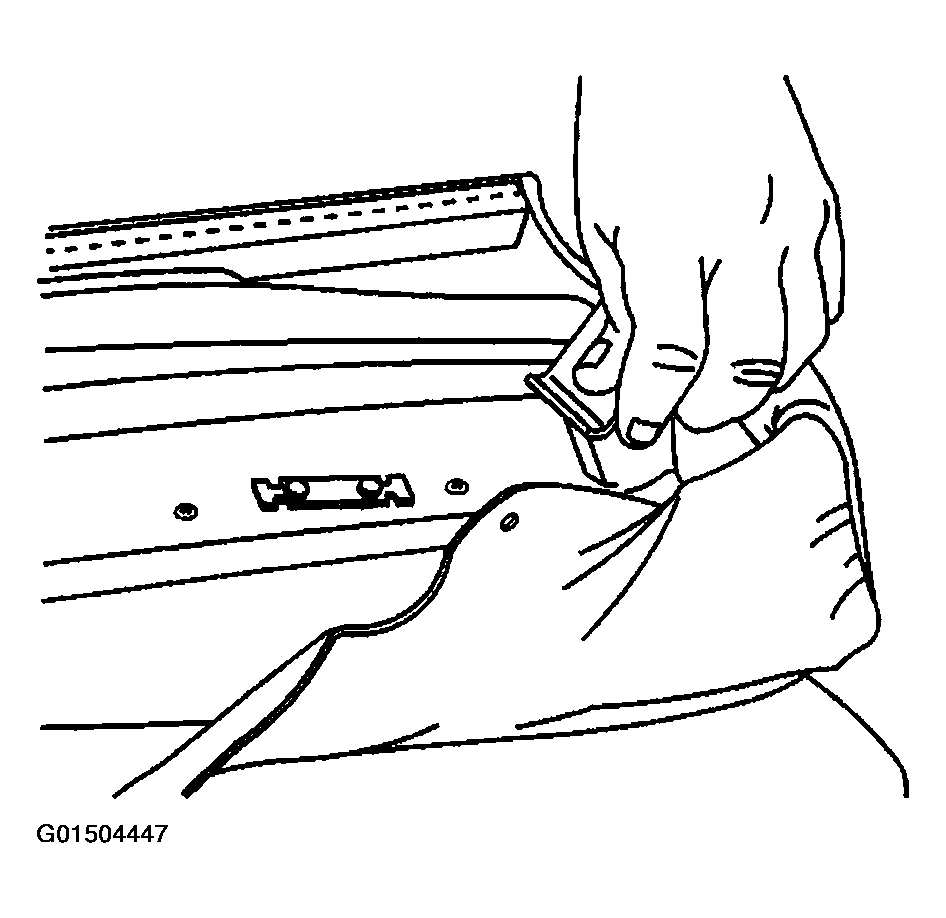

    Fig 5: Removing Push-In Tab From End Of Bolsters
    G01504447Courtesy of GENERAL MOTORS CORP.
  10. Remove the bolster trim covers from the bolsters pads.

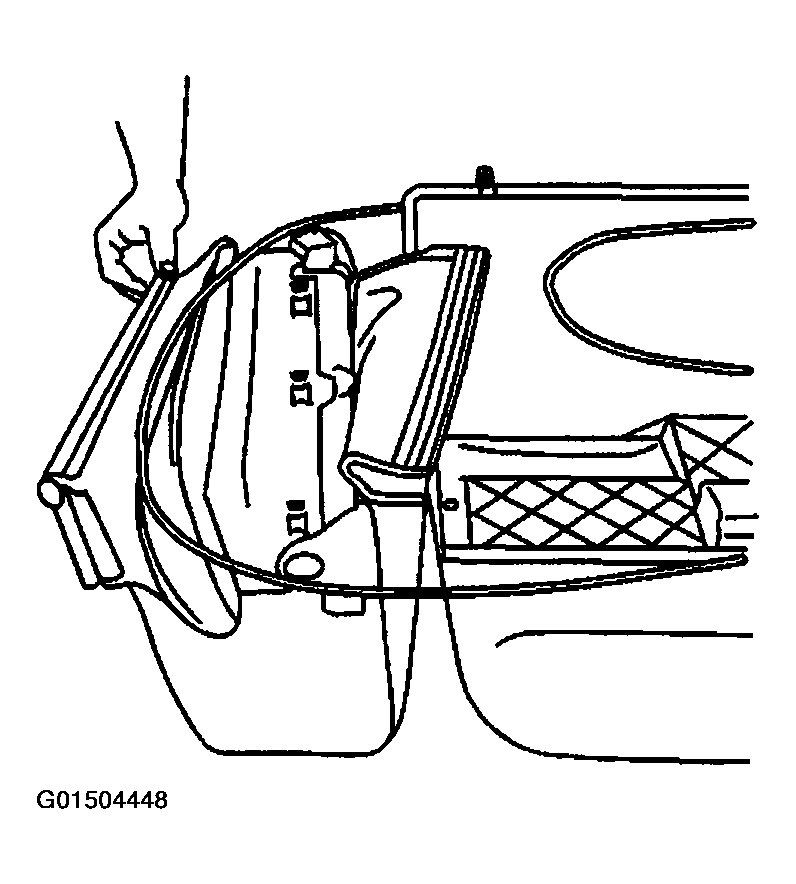

    Fig 6: Removing Bolster Trim Covers From Bolsters Pads
    G01504448Courtesy of GENERAL MOTORS CORP.
