Adjustment Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
- Condition 2.1: Using a flat-bladed tool, straighten the run channel lip by pulling it out to its correct position.
- Condition 2.2: Use a flat-bladed tool to push the run channel rearward to seat it in the door frame.
  NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Condition 2.3: Loosen the window to regulator bolts.
  Rotate the cam (5) on the window regulator plate so that the slot (6) is straight up and down. In this position, the back of the glass will tilt forward.

  Tighten

  Tighten the 2 window to regulator bolts to 10 N.m (89 lb in).
- Condition 2.4: Loosen the window to regulator bolts.
  Loosen the 4 regulator bolts.

  Now, tighten the window regulator bolts according to the tightening sequence (1,2,3,4).

  Tighten

  Tighten the 4 window regulator bolts to 10 N.m (89 lb in).

  Tighten the 2 window to regulator bolts.

  Tighten

  Tighten the 2 window to regulator bolts to 10 N.m (89 lb in).

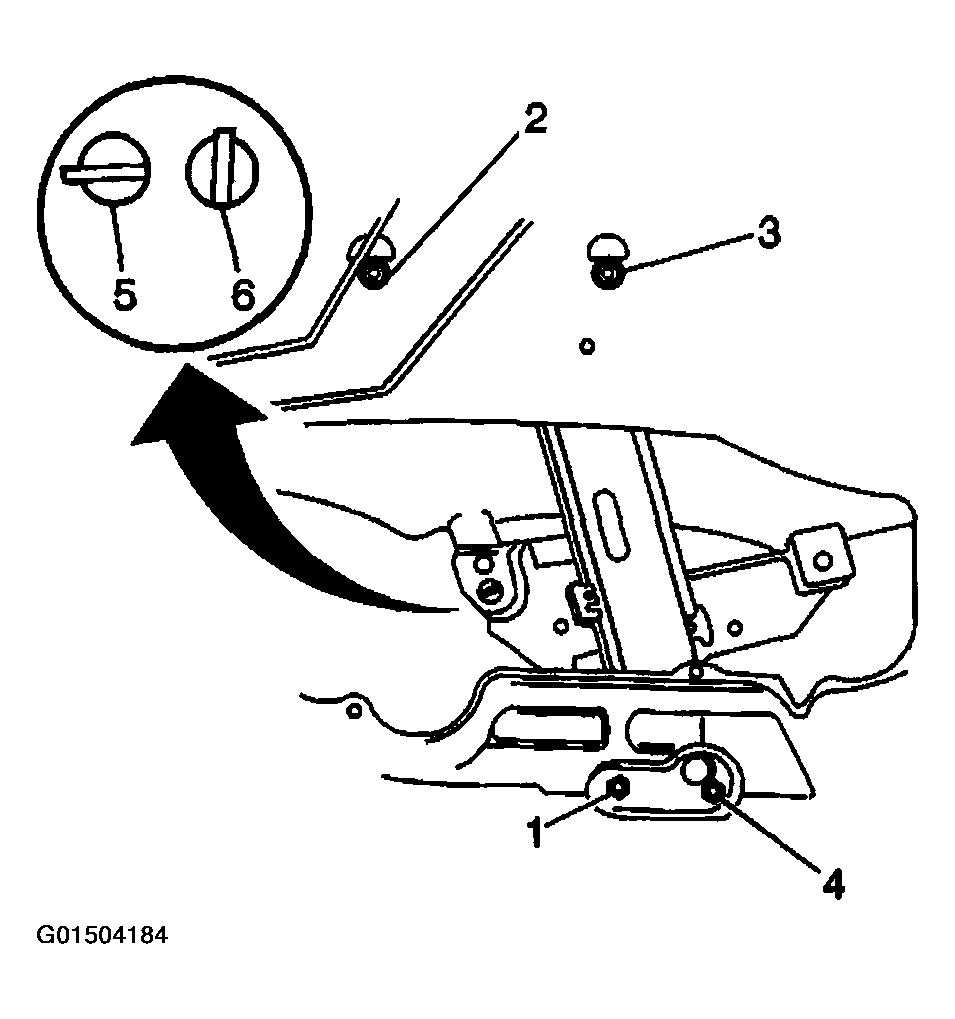

  Fig 1: Rotating Cam On Window Regulator Plate For Adjusting Front Door
  Courtesy of GENERAL MOTORS CORP.
Connect the power window switch.
Install the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
