Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Pull the rear side hood seal from the pinch-weld flange and motor compartment flange.
  3. Remove the rear side hood seal from the vehicle.
  4. Use 3M™ 8984 adhesive remover to clean any adhesive from the pinch-weld flange and motor compartment flange surface.

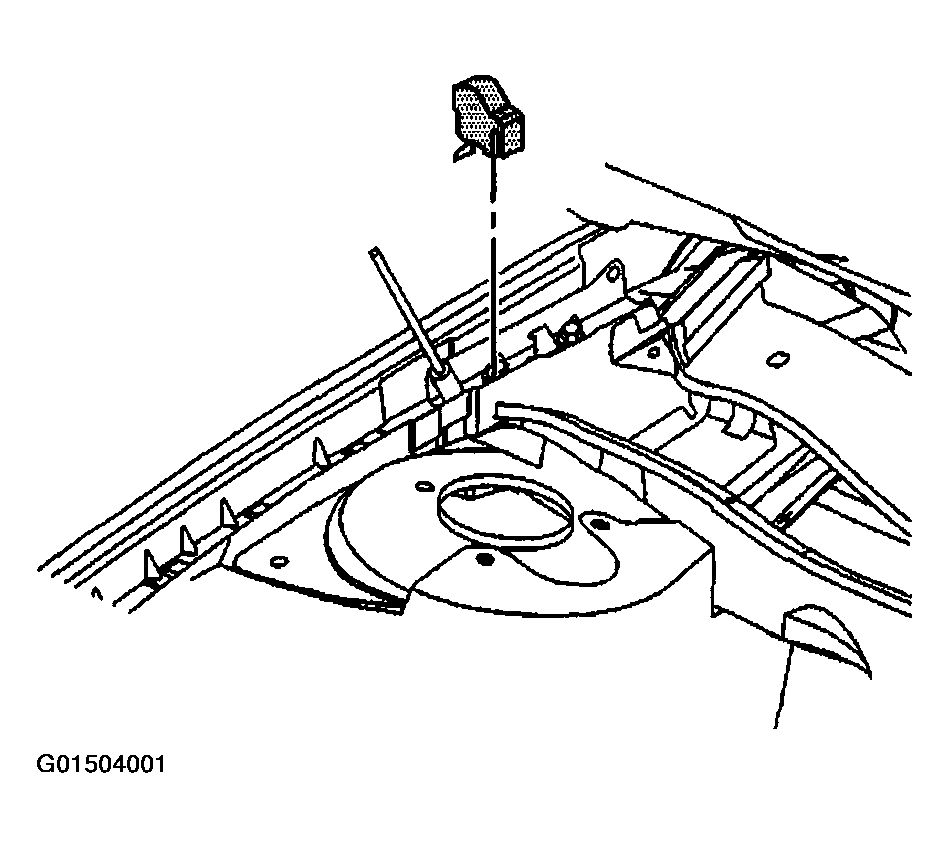

    Fig 1: Removing Rear Side Hood Seal
    G01504001Courtesy of GENERAL MOTORS CORP.
