Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove nuts (mastic washers) from the center of the water management tray discard the nuts.

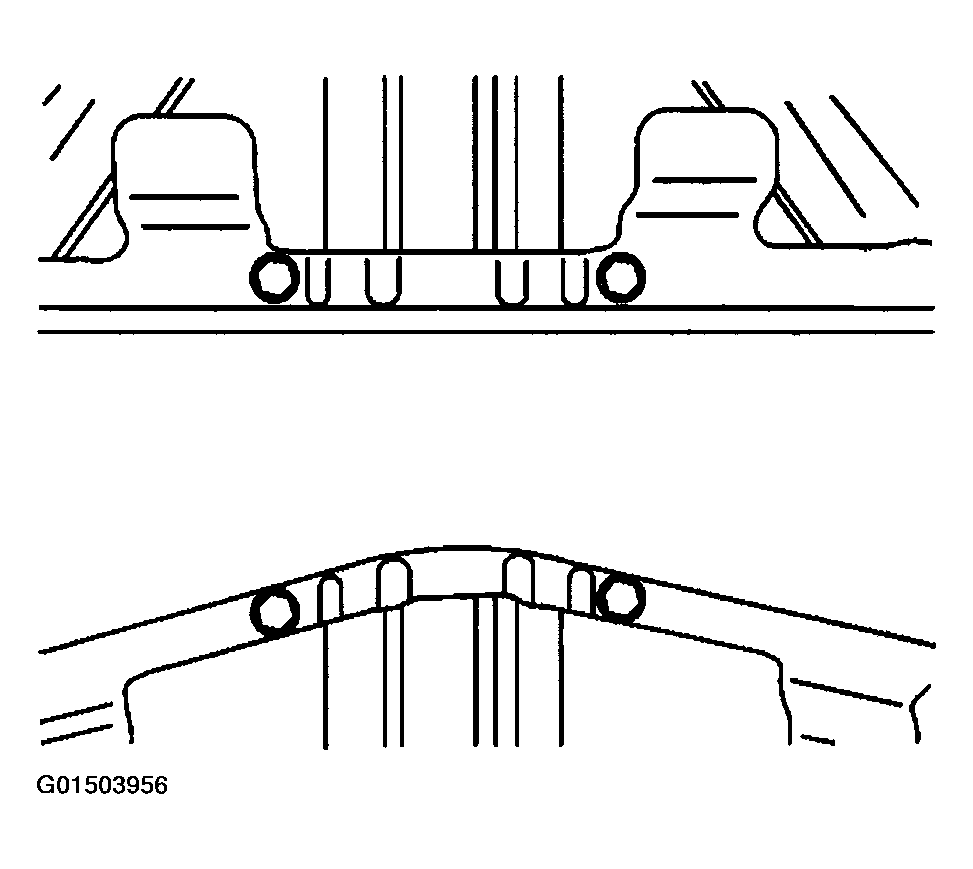

    Fig 1: Removing Nuts From Center Of Water Management Tray
    G01503956Courtesy of GENERAL MOTORS CORP.
  3. Remove the retainers from the water management tray.
  4. Remove the water management tray from the hood.

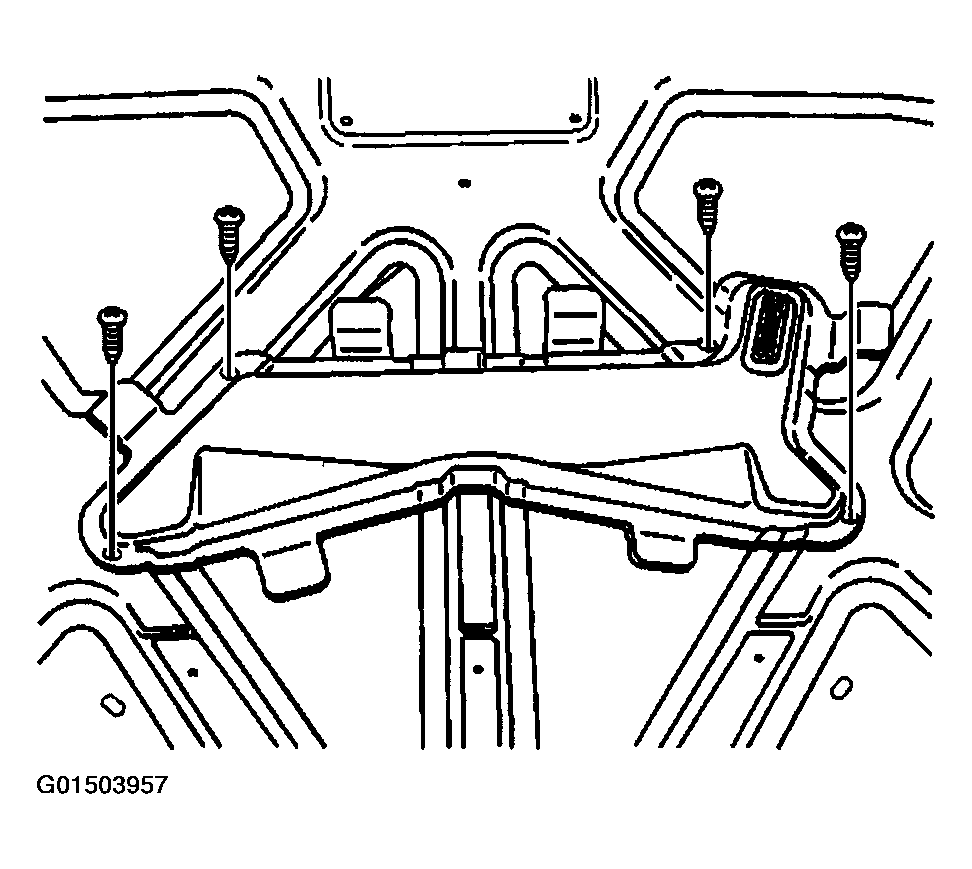

    Fig 2: Removing Retainers From Water Management Tray
    G01503957Courtesy of GENERAL MOTORS CORP.
