Theft Deterrent System Schematics (Vehicle Theft Deterrent (VTD) System)

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

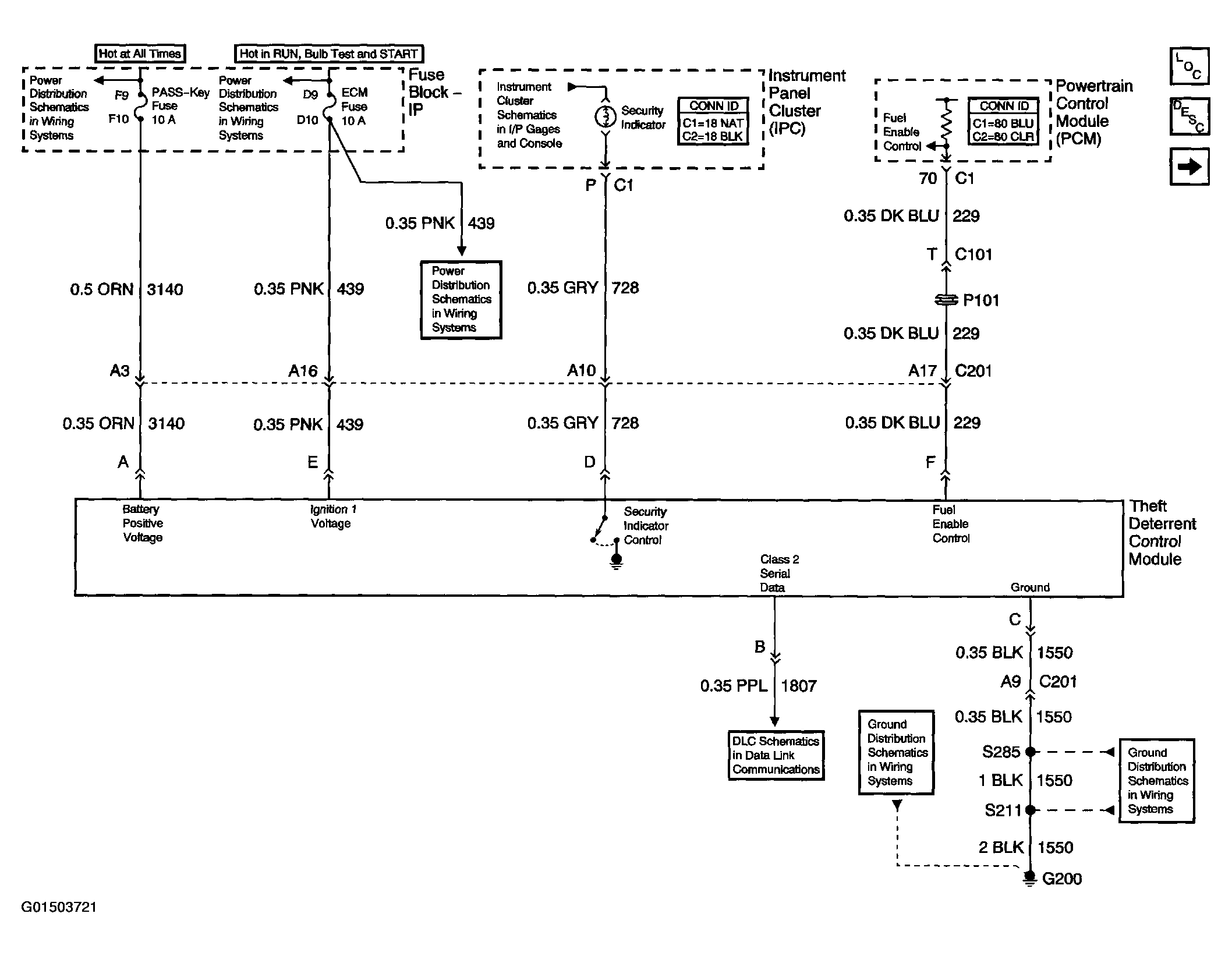

Fig 1: Vehicle Theft Deterrent System Schematics
G01503721Courtesy of GENERAL MOTORS CORP.

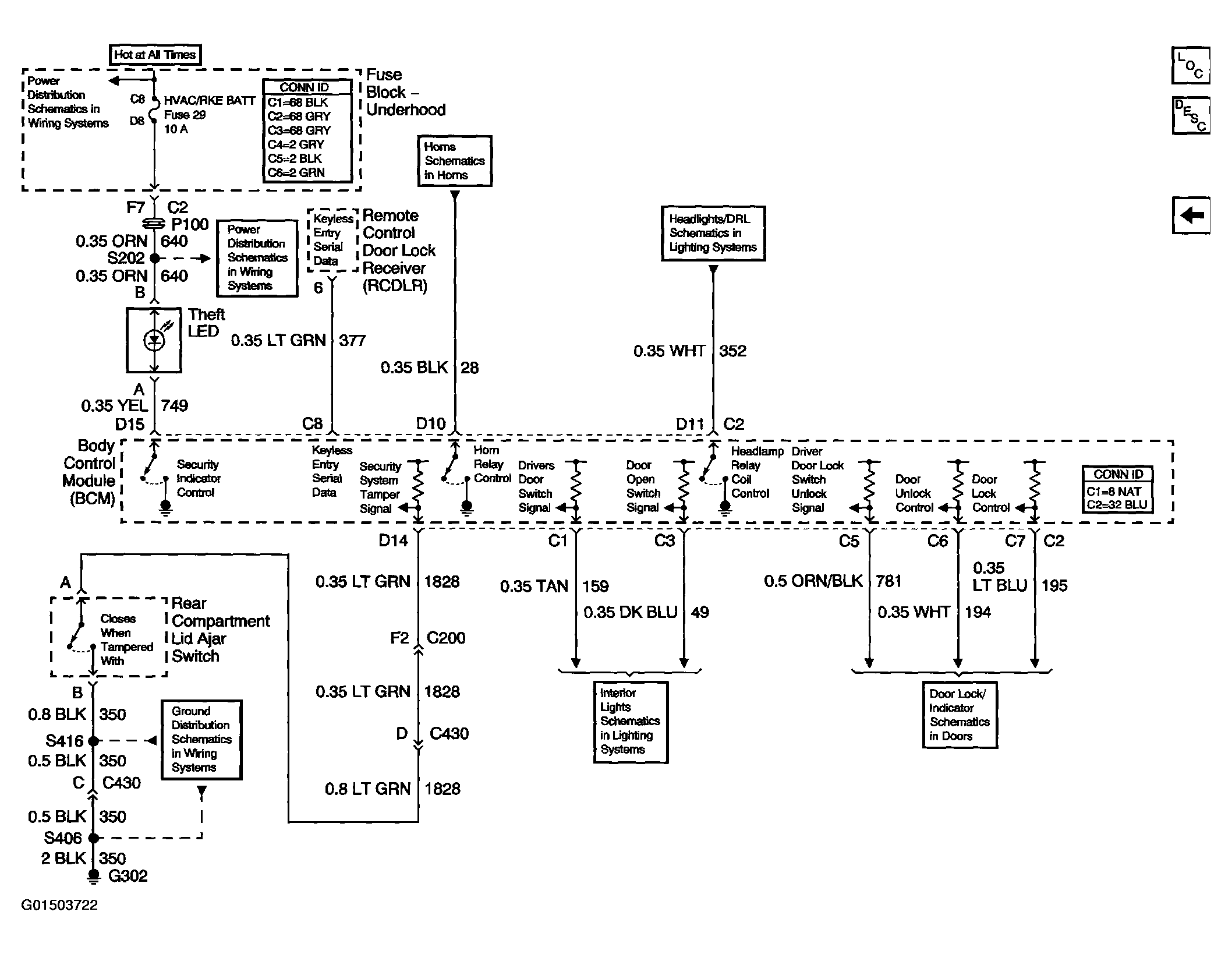

Fig 2: Content Theft Deterrent System Schematics
G01503722Courtesy of GENERAL MOTORS CORP.
