Test Description

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Repeat the procedure in Step 2 for the driver and passenger door lock cylinders.

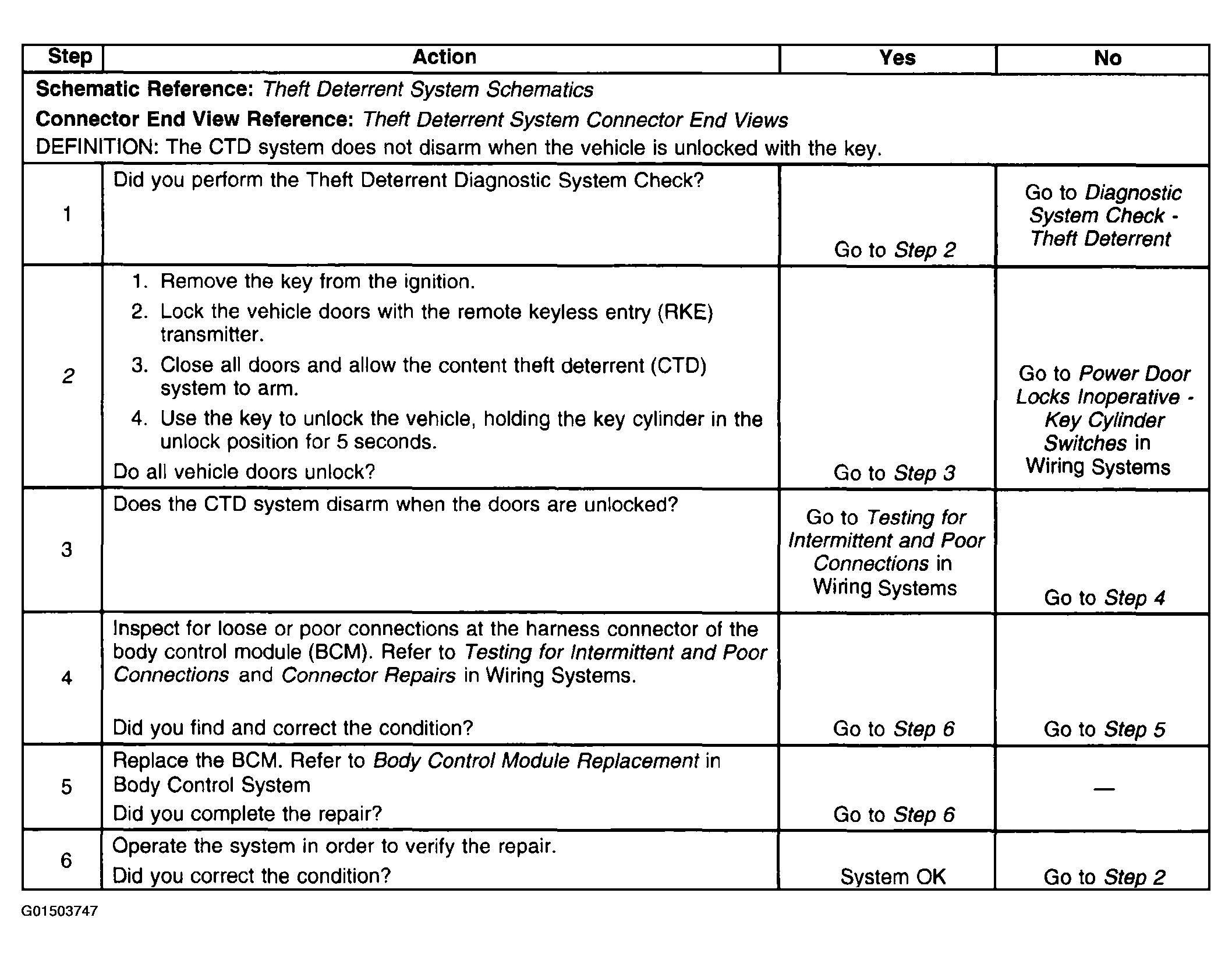

    Fig 1: Content Theft Deterrent Does Not Disarm With Key Lock Diagnostic Table
    G01503747Courtesy of GENERAL MOTORS CORP.
