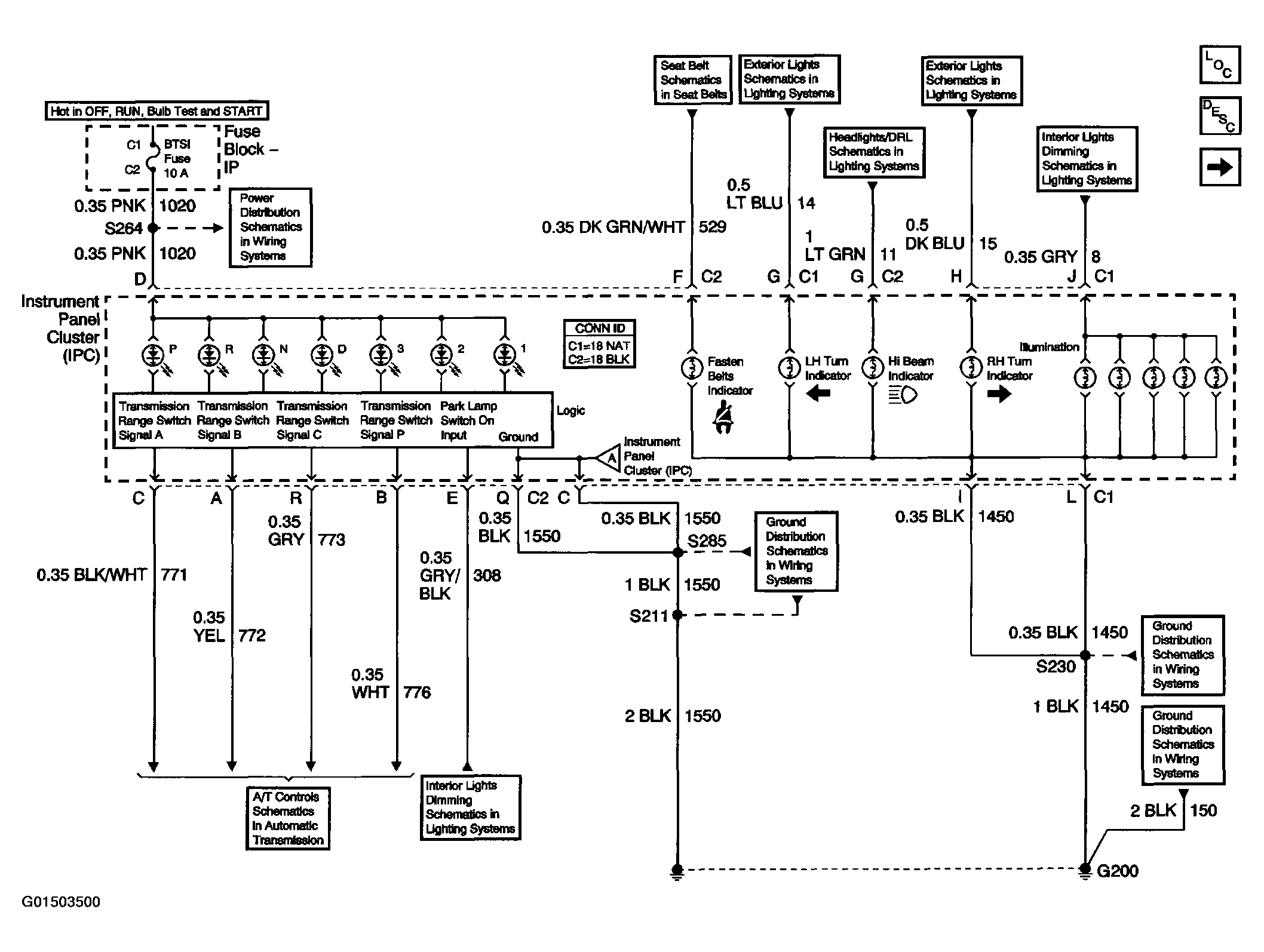

Instrument Cluster Schematics (Power, Ground, Illumination, and Seat Belt, Turn Signal, and Hi Beam Indicators)

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

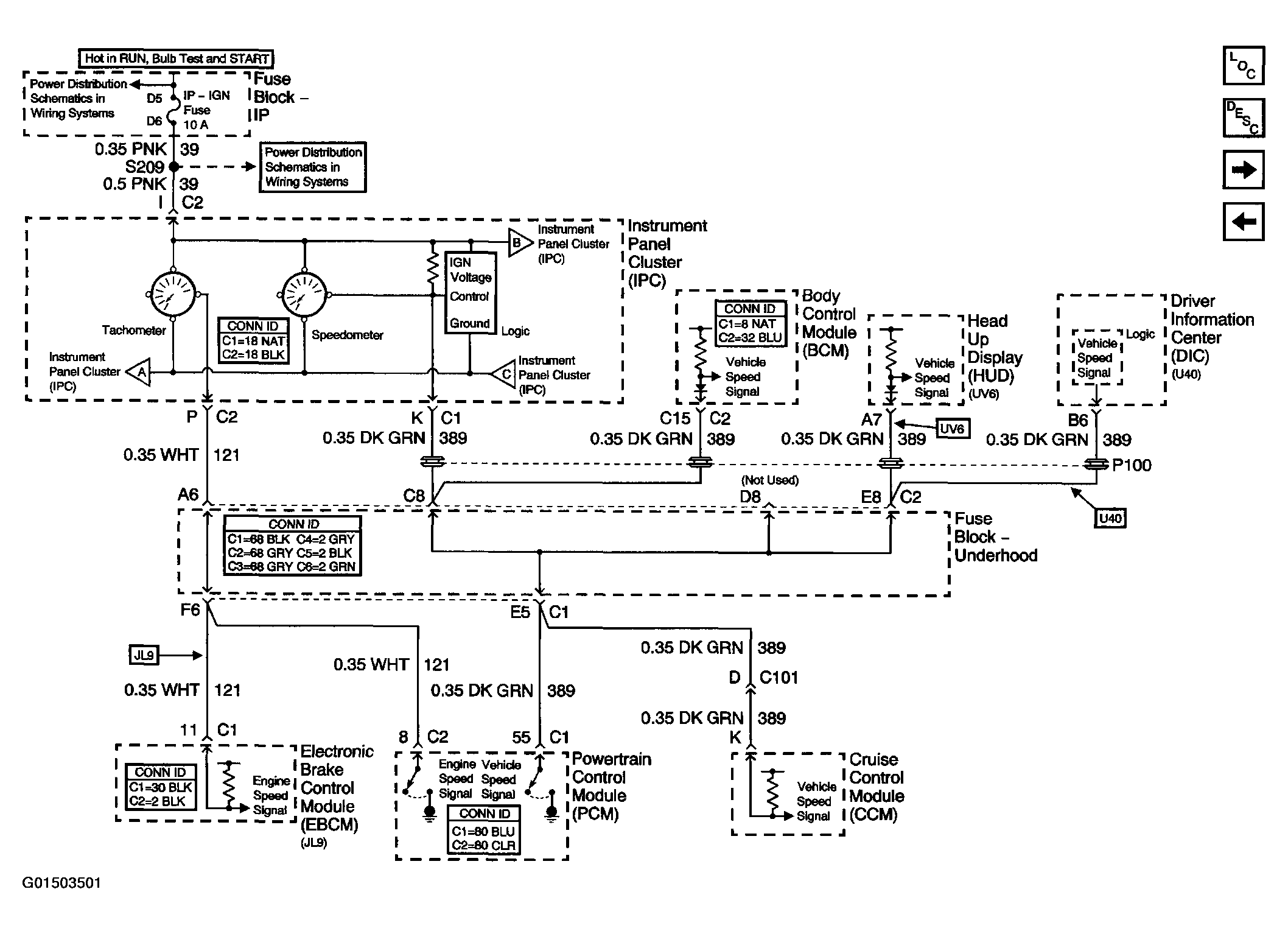

Fig 1: Instrument Cluster Schematics (Tachometer & Speedometer Gages)

Courtesy of GENERAL MOTORS CORP.

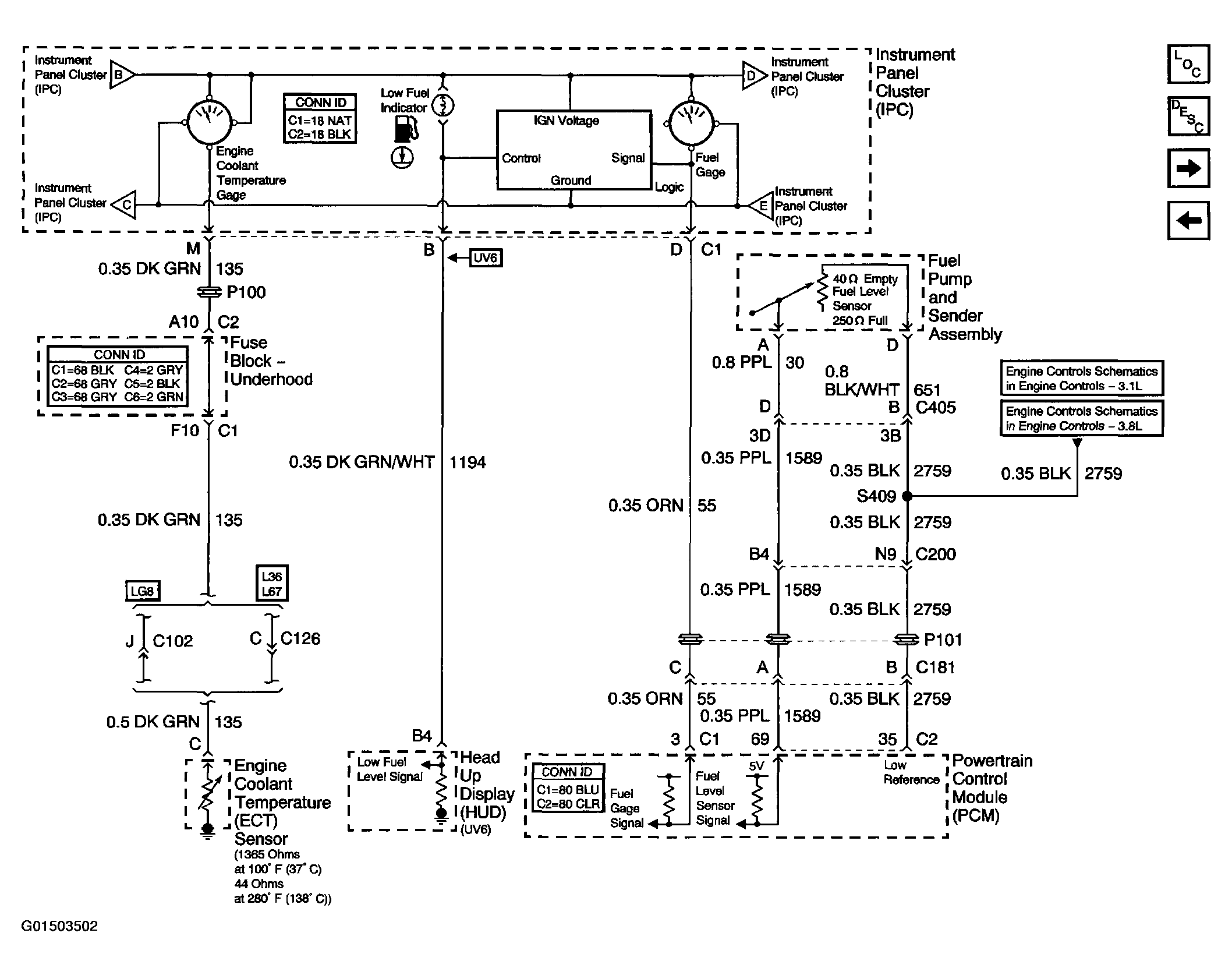

Fig 2: Instrument Cluster Schematics (Engine Coolant Temperature Gage, Fuel Gage, & Low Fuel Indicator)

Courtesy of GENERAL MOTORS CORP.

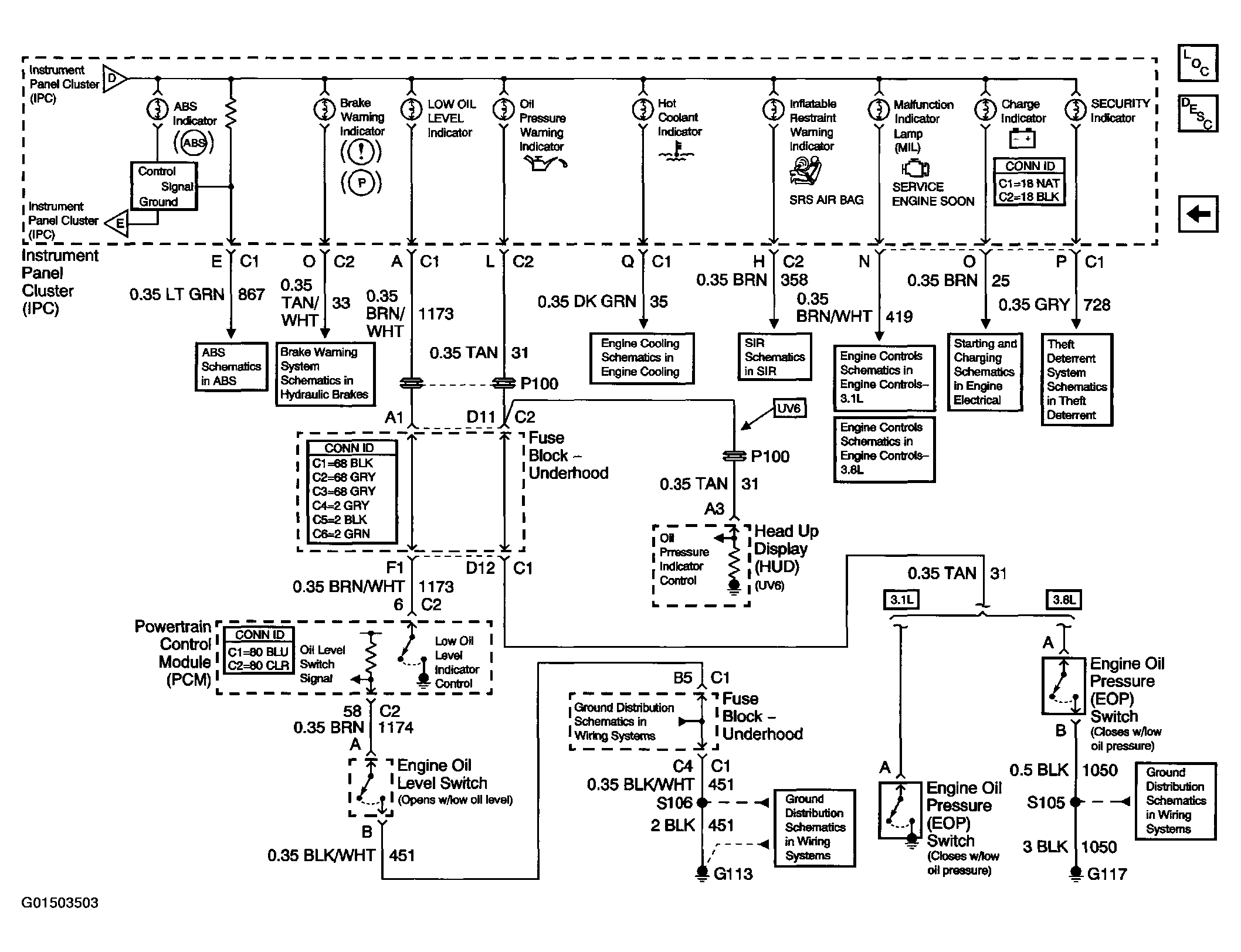

Fig 3: Instrument Cluster Schematics (Indicators)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Instrument Cluster Schematics (Driver Information Center - W/o U40)

Courtesy of GENERAL MOTORS CORP.
