Driver Information System Schematics (Driver Information Center (DIC) (W/O U40))

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

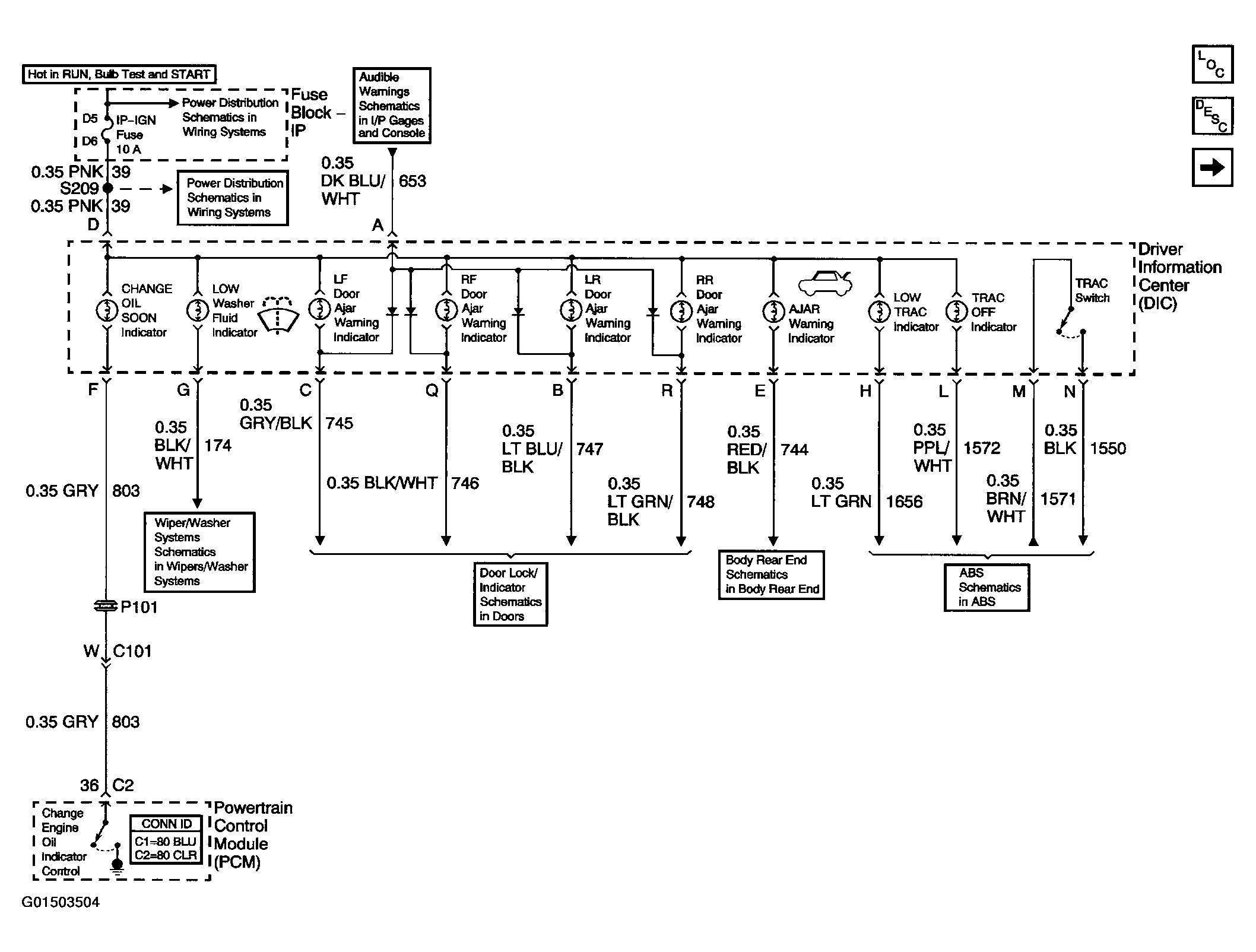

Fig 1: Driver Information System Schematics (Driver Information Center - W/o U40)
G01503504Courtesy of GENERAL MOTORS CORP.

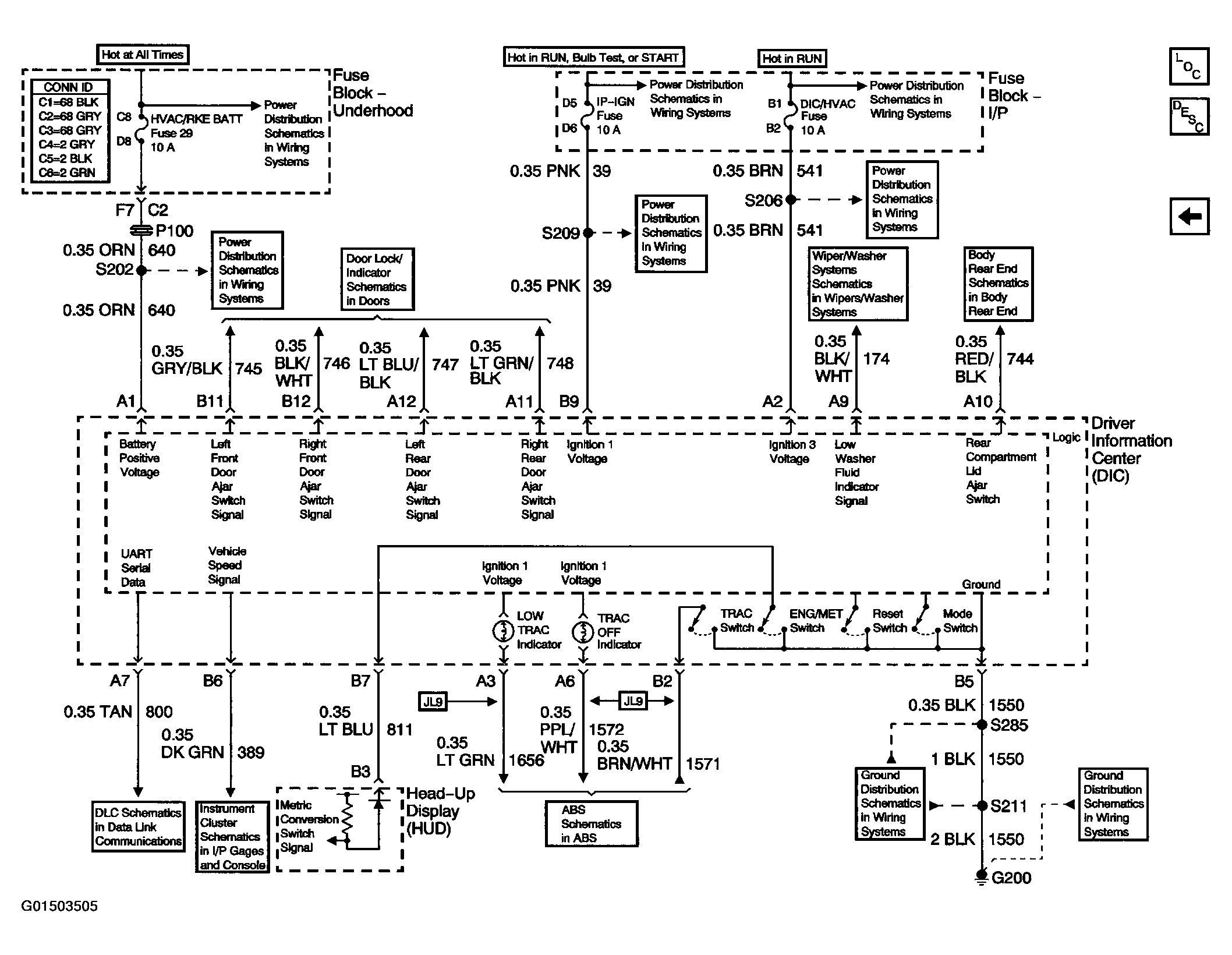

Fig 2: Driver Information System Schematics (Driver Information Center - W/ U40)
G01503505Courtesy of GENERAL MOTORS CORP.
