Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE  .
  2. Disconnect the electrical connector from the front floor console power accessory port.

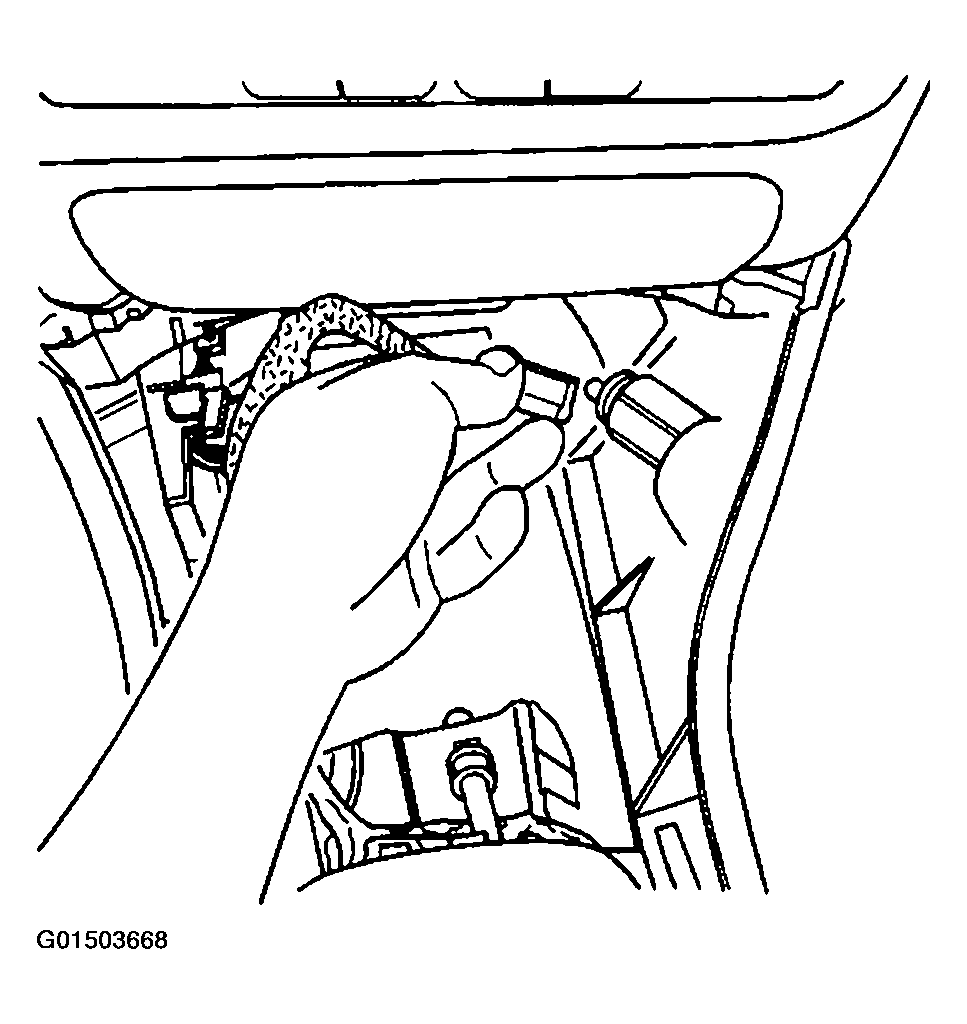

    Fig 1: Disconnecting Electrical Connector From Front Floor Console Power Accessory Port
    G01503668Courtesy of GENERAL MOTORS CORP.
  3. Unscrew the housing from the power accessory port.
  4. Remove the power accessory port from the front floor console.

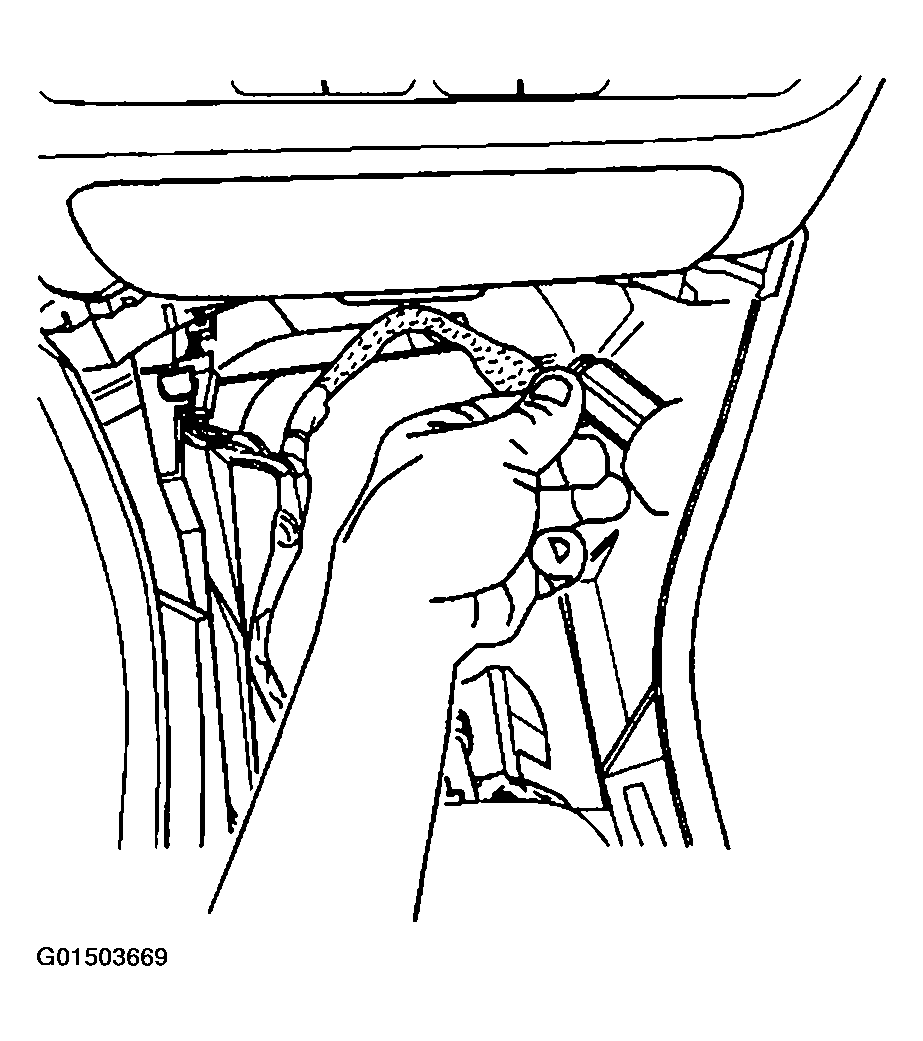

    Fig 2: Removing Power Accessory Port From Front Floor Console
    G01503669Courtesy of GENERAL MOTORS CORP.
