Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel (IP) compartment door.
    Fig 1: Opening Instrument Panel Compartment Door
    G01503596Courtesy of GENERAL MOTORS CORP.
  2. Remove the IP compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P)  .
  3. Remove the screws that retain the IP compartment door to the IP compartment.

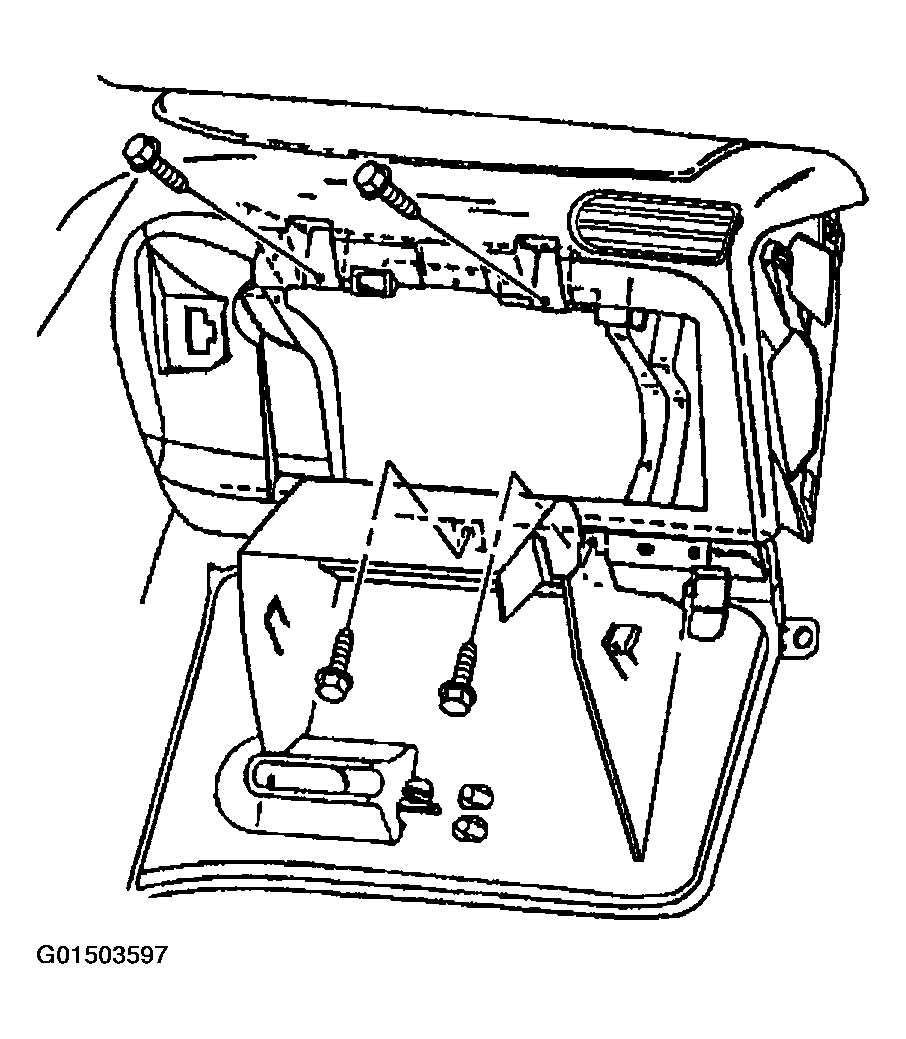

    Fig 2: Removing Instrument Panel Compartment Door Retaining Screws
    G01503597Courtesy of GENERAL MOTORS CORP.
  4. Remove the latch assembly.

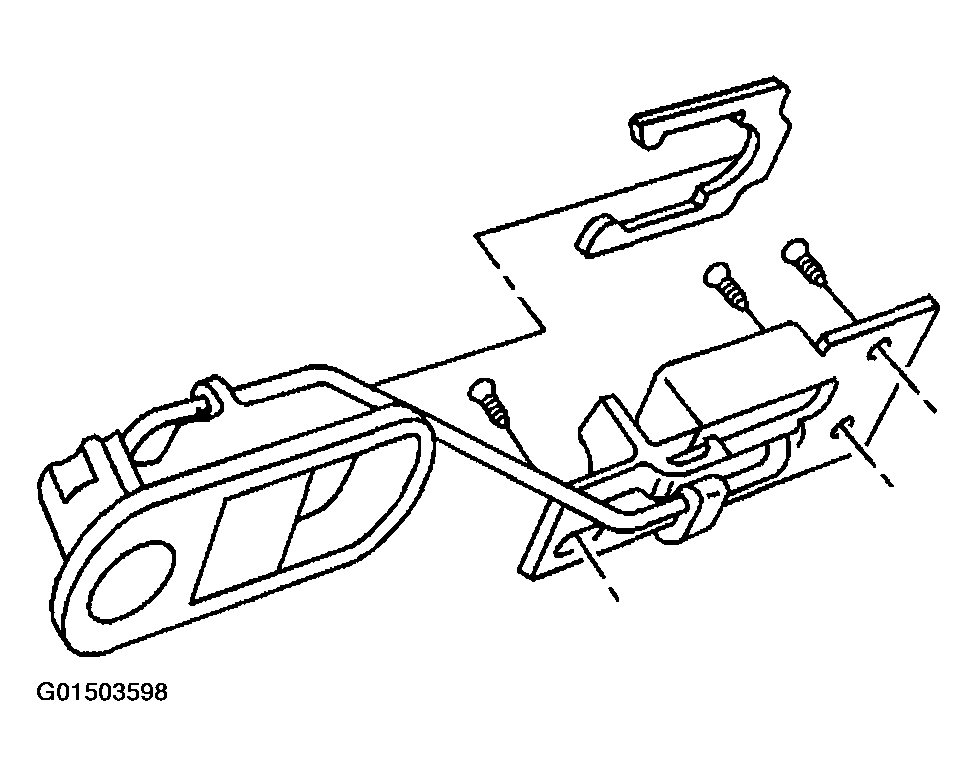

    Fig 3: Removing Instrument Panel Compartment Door Latch Assembly
    G01503598Courtesy of GENERAL MOTORS CORP.
  5. Remove the IP compartment door from the IP compartment.

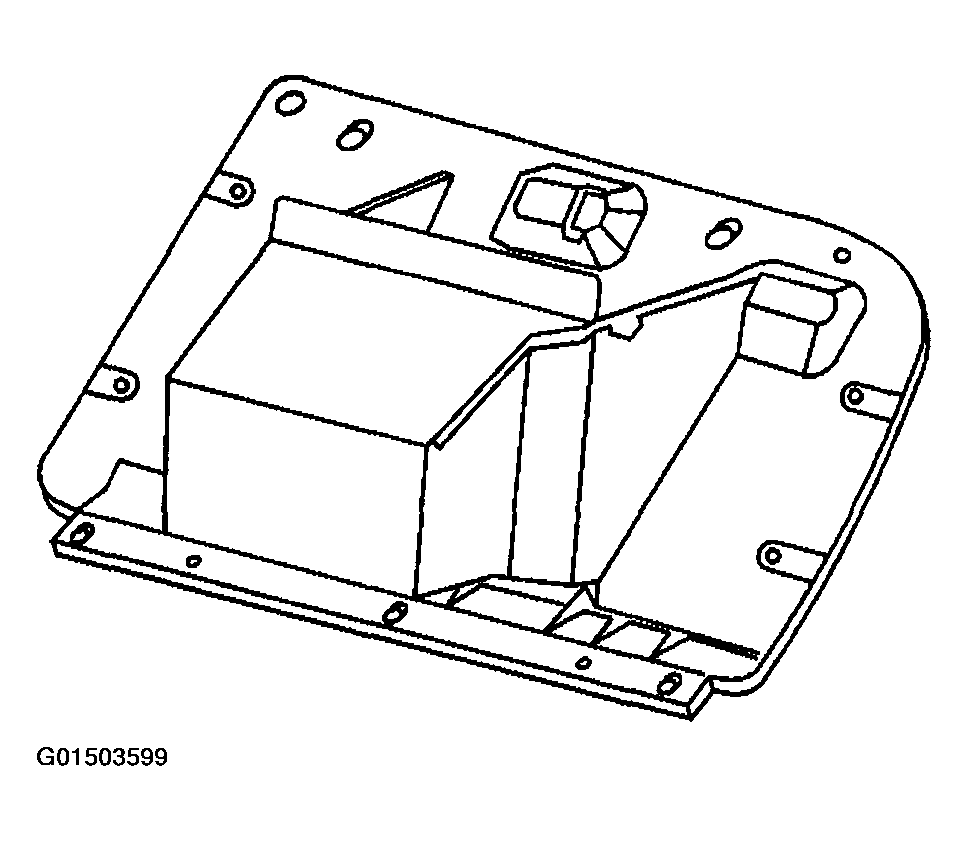

    Fig 4: Removing Instrument Panel Compartment Door
    G01503599Courtesy of GENERAL MOTORS CORP.
